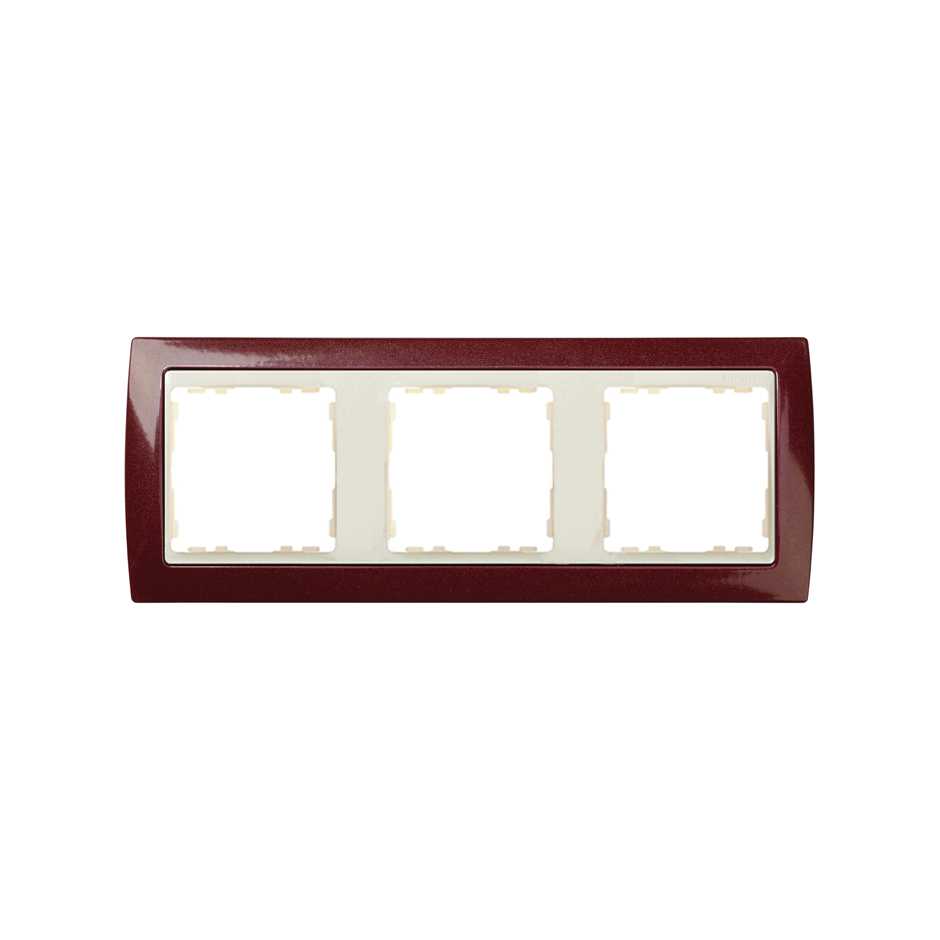

Frame for 3 elements metallic garnet interior ivory Simon 82
REFERENCE NO.:
82734-37
R.P.:
Price on request
PACKAGING:
5Units
BASIC INFORMATION
Series:
Simon 82
Version:
3 elements
Product range:
Metal colour
Frame finish:
Metallic garnet
Inner frame:
Ivory
Available in:
1, 2, 3 and 4 elements.
Compatibility:
Simon 75, Simon 77 and Simon 82 mechanisms
Installation direction:
Vertical and horizontal
Packaging contents:
Frame with 3 elements
Remarks:
It is recommended to use the ivory finish for rockers and covers.
TECHNICAL INFORMATION
Dimensions:
229x89 mm
IP rating:
21
RAL:
Does not have
Manufacturing material:
Thermoplastic base and Zamak frame
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
UNE-EN 60669-1:2002 + A1:2003 + A2:2009 + UNE 20315-1-1:2009
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface and flush mounting
Installable in flush mount junction box:
Universal
Operating temperature range:
5 to 40 ºC
Storage temperature range:
-25 to 50 ºC
Maintenance:
Clean with a soft, dry cloth.
Do not use abrasive cloths or cleaning products that contain chlorine.
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
5
Box measurement unit:
MM
Height:
55.000
Wide:
91.000
Depth:
235.000
Box volume:
1188000.000
Box volume measurement unit:
MMQ
Net weight of box:
0.725
Unit weight of box:
KGM
EAN code:
8421053054215
Available in multiple box:
No
Available on pallet:
No
