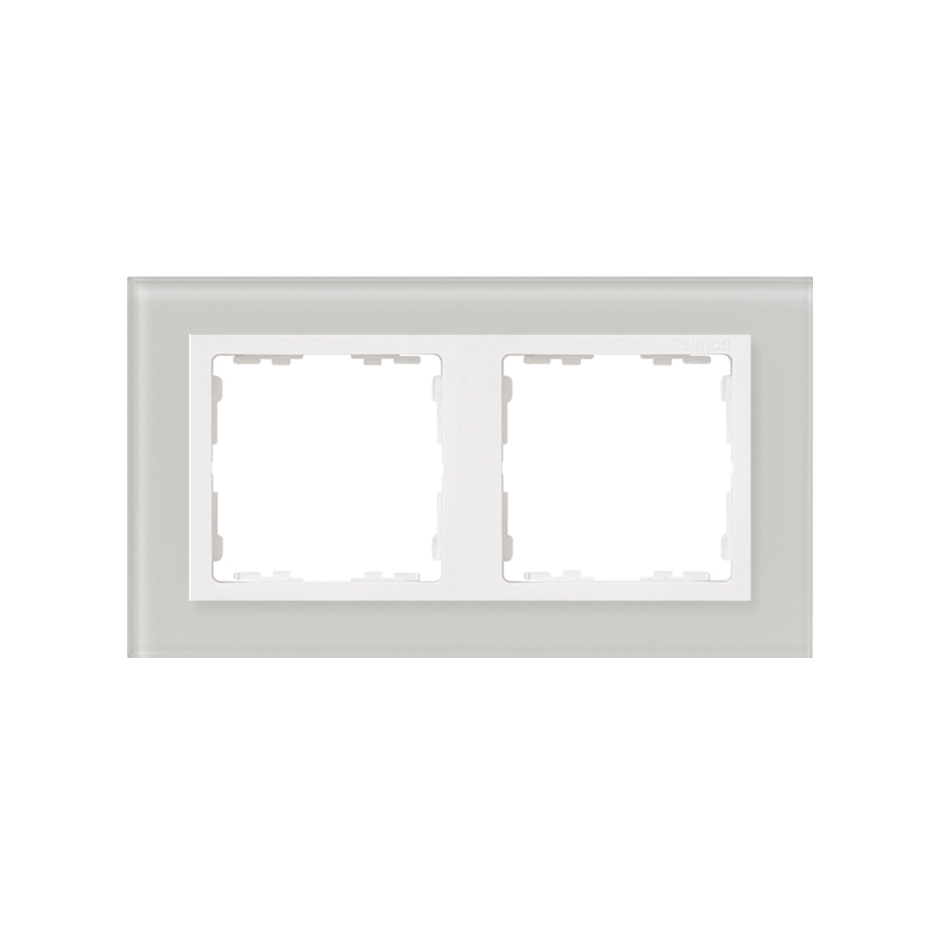

This image represents the combined solution of different references

Ref
82627-60

Frame for 2 elements natural glass interior white Simon 82 Nature

Price/Unit
Price on request
Packaging quantity
1 Unit

Available downloads

Outstanding Features
Series
Simon 82 Nature
Series Compatibility

Simon 82 Nature

The Simon 82 Nature series stands out for the originality and the quality of its materials, a series where we can find 4 ranges with different finishes: Glass, wood, stone and metal. A series capable of enter a pedazo of nature in our home. 82 Nature allows the combination of colours and finishes to adapt to TOPO types of environments.

The glass is the material chosen for this frame, perfect for places that need light and brightness. With 173 x 94 millimetres has capacity for 2 elements, it is also available for 1,3 and 4 elements. The baseboard is made of thermoplastic, a very resistant material that will allow us to enjoy the excellent frame for many years.

This series has frames for the centralization, which allows better control of all the electrical functions with a truly innovative design. All the elements of this series are compatible with the Simon 77 mechanisms.

Basic information
  • Compatibility

    Simon 75, Simon 77 and Simon 82 mechanisms

  • Remarks

    It is recommended to use the white finish for rockers and covers.

  • Finish

    Glass

  • Packaging contents

    Frame with 2 elements

Technical information
  • Market available

    CE

  • Available in

    1, 2, 3 and 4 elements

  • Inner frame

    White

  • IP Rating

    IP20

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    2 elements

  • Dimensions (mm)

    173 x 94

Installation and maintenance
  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product net weight

    0.195KGM

  • Product gross weight

    0.195KGM

  • Product EAN

    8421053060209

  • Packaging quantity

    1

  • Packaging height

    37MMT

  • Packaging width

    127MMT

  • Packaging length

    204MMT

  • Packaging volume

    1.446DMQ

  • Packaging net weight

    0.195KGM

  • Packaging gross weight

    0KGM

  • Packaging EAN

    8421053060209
