Frame for 1 element white Simon 82

REFERENCE NO.: 82610-30
R.P.: Price on request
PACKAGING: 10 Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82
Version:  1 element
Product range:  Colour
Frame finish:  White
Inner frame:  White
Available in:  1, 2, 3 and 4 elements.
Compatibility:  Simon 75, Simon 77 and Simon 82 mechanisms
Installation direction:  Vertical and horizontal
Packaging contents:  Frame with 1 element
Remarks:  It is recommended to use the white finish for rockers and covers.

TECHNICAL INFORMATION

Dimensions:  89x87 mm
IP rating:  21
RAL:  Does not have
Manufacturing material:  Thermoplastic base and thermostable frame
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installable in flush mount junction box:  Universal
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

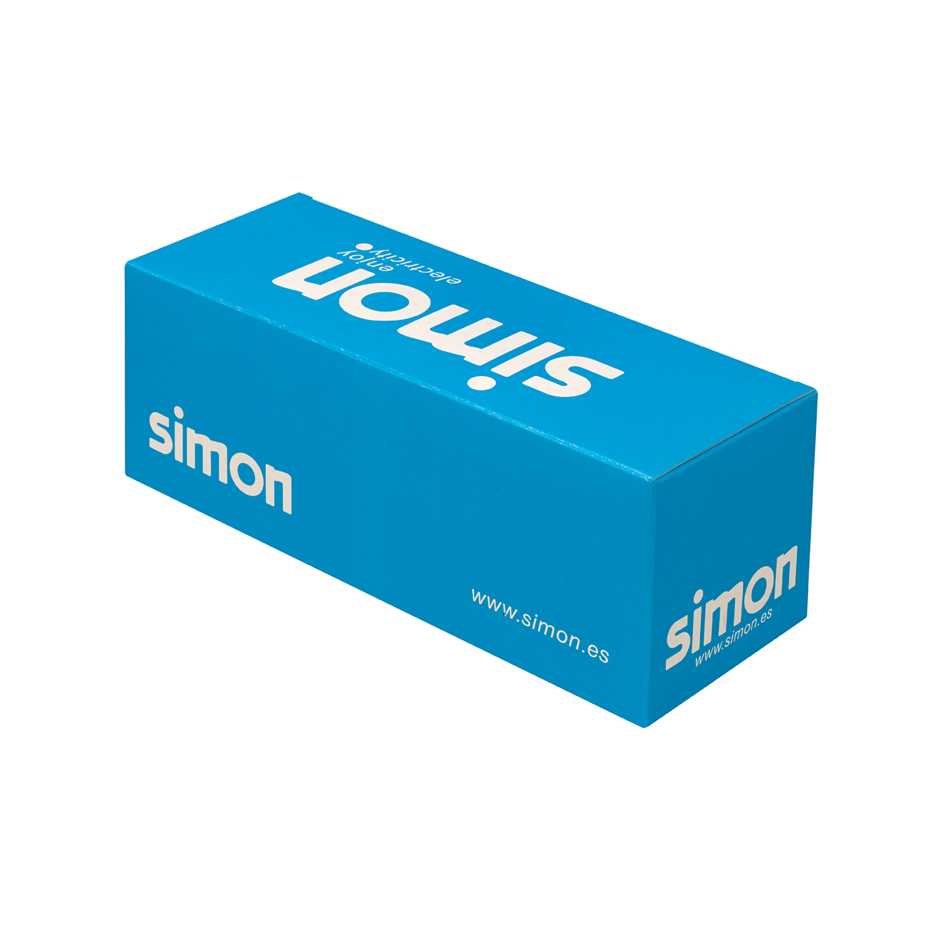

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  10
Box measurement unit:  MM
Height:  92.000
Wide:  90.000
Depth:  133.000
Box volume:  1101240.000
Box volume measurement unit:  MMQ
Net weight of box:  0.360
Unit weight of box:  KGM
EAN code:  8421053053515
Available in multiple box:  Yes
Multiple box packaging quantity:  100
Multiple box measurement unit:  MM
Multiple box packaging quantity measurement unit:  ZCM
Height of multiple box:  135.000
Width of multiple box:  190.000
Depth of multiple box:  510.000
Multiple box volume:  13081500.000
Multiple box volume measurement unit:  MMQ
Net weight of multiple box:  3.600
Unit weight of multiple box:  KGM
Multiple box EAN code:  8421053073308
Available on pallet:  Yes

GALLERY

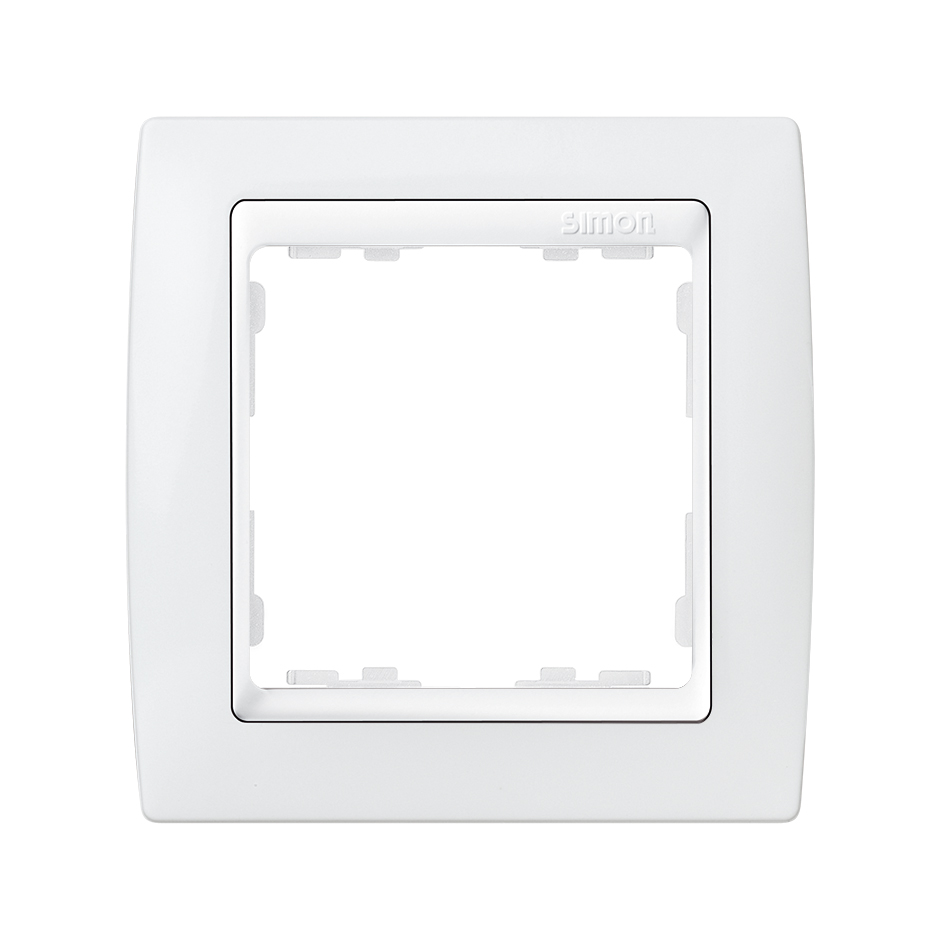

Frame Simon 82 white front view

82610-30-solucion-completa-marco-1-elemento-blanco-zocalo-blanco-simon-82-frontal_2.jpg

This image represents the combination of different references

82610-30-solucion-completa-marco-1-elemento-blanco-zocalo-blanco-simon-82-frontal_2.jpg

DRAWING AND DIMENSIONS

manual
Drawing Frame for 1 element white Simon 82 DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Frame for 1 element white Simon 82 DOWNLOAD
