Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82

REFERENCE NO.: 82579-31

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

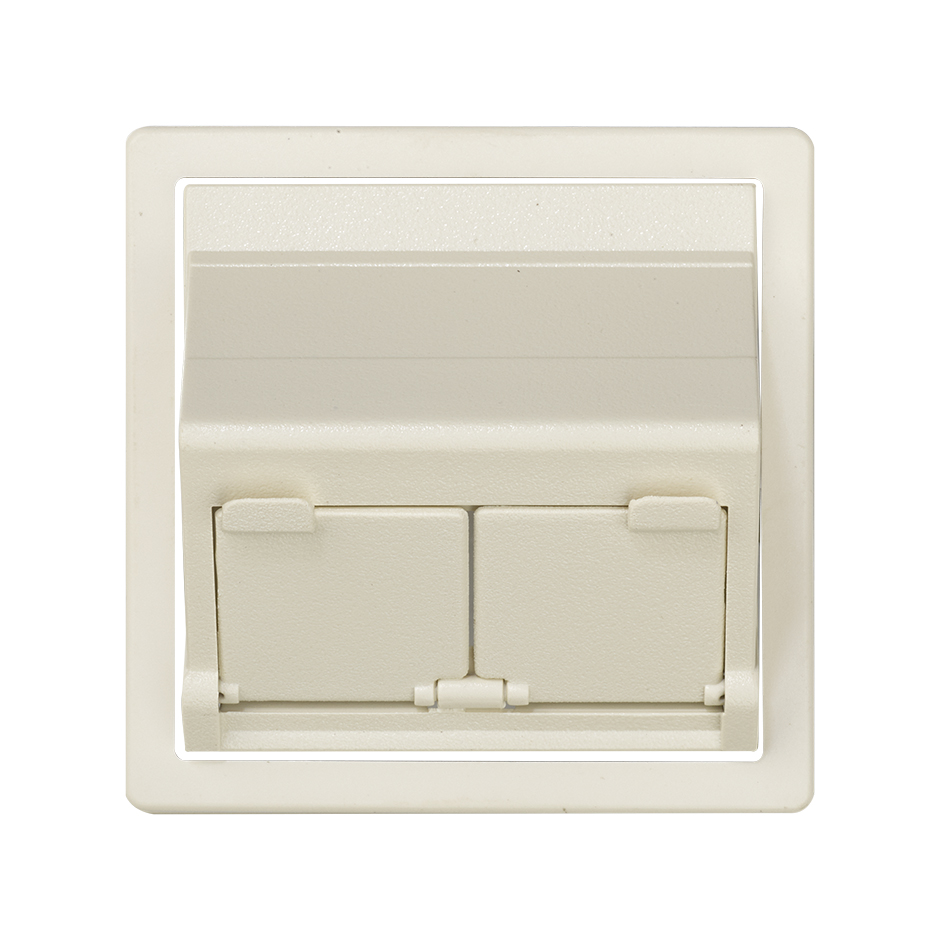

Angled voice and data plate with 2 RJ45 Simon 82 ivory front view


This image represents the combination of different references

Angled voice and data plate with 2 RJ45 Simon 82 ivory packaging

82579-31-placa-voz-datos-inclinada-con-guardapolvo-2-rj45-marfil-simon-82-frontal_5.jpg

SERIES: Simon 82 FINISH: Ivory MATERIAL: Plastic FORMAT: RJ45 DIMENSIONS: 55x55 mm Adaptor modules RJ45

75000-39

75001-39

75002-39

75528-39

75540-39

75541-39

Product description

Angled voice and data plate with dust cover for two RJ45 connectors with ivory finish of the Simon 82 series, you can have three different finishes available for this component, as we always recommend that the colour of the frame is the same baseboard colour as the selected for the selected plate. For its installation, it must be taken into account the following measurements of the plate 55x55 mm, which will be used to position, place your element where you want it, since it is suitable for surface mounting or flush mounting where you want it, in addition, you know that the Simon 82 series has full compatibility with the mechanisms of the Simon 77 series, which allows you to set up an installation in just two steps and without touching the wire to strip or braid it. Take advantage of balance and simplicity to create trend with the Simon 82 collection. Make yourself with the minimalist design combined with noble finishes and a wide selection of textures that will not leave you indifferent when it comes to establishing the decoration of your home.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Ivory

Format: RJ45

Plate type: Angled

Number of connectors: 2

Dust shutter: Yes

RJ45 adaptor module: Not Included

Indicator function: No

Symbol: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Plate

Remarks: Available in 3 finishes. It is recommended to choose a frame with a base the same colour as the selected plate.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2011/65/UE RoHS + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 82.000

Wide: 83.000

Depth: 223.000

Box volume: 1517738.000

Box volume measurement unit: MMQ

Net weight of box: 0.285

Unit weight of box: KGM

EAN code: 8421053004302

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No

82579-31-placa-voz-datos-inclinada-con-guardapolvo-2-rj45-marfil-simon-82-frontal_6.jpg

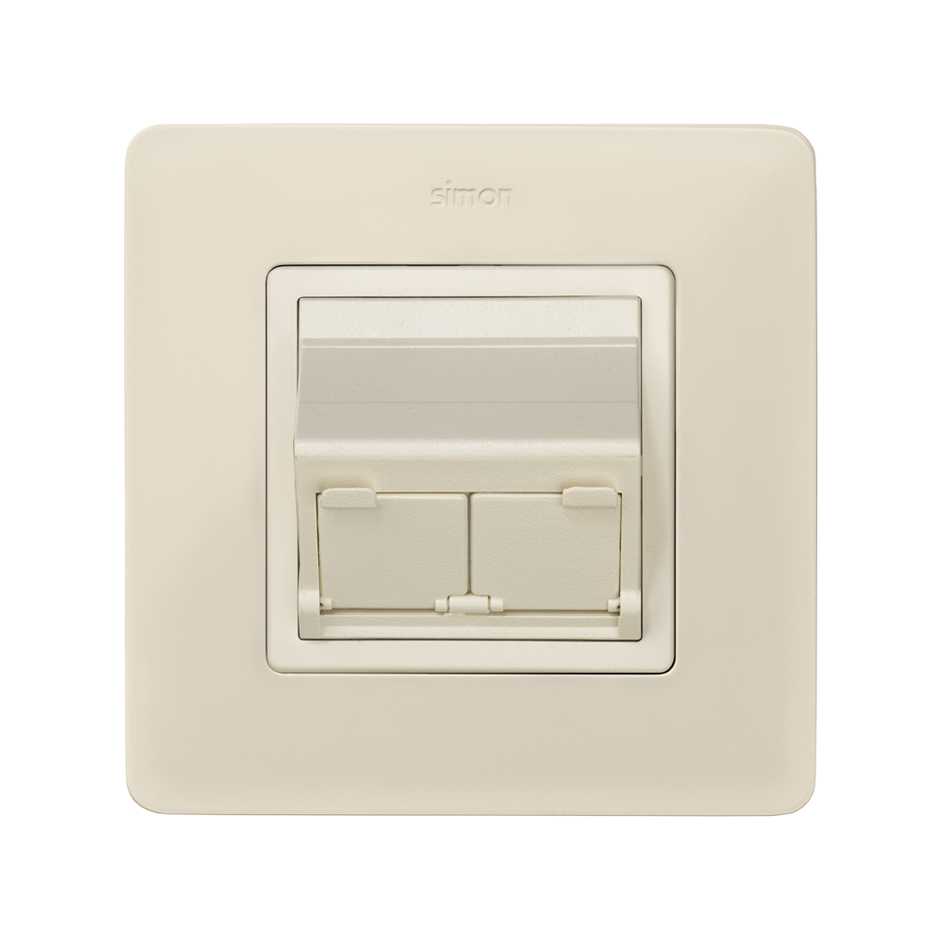

Angled voice and data plate with 2 RJ45 Simon 82 ivory front view


This image represents the combination of different references


Angled voice and data plate with 2 AMP® category 5e UTP RJ45 connectors, cover and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75001-39 R.P.: Price on request Adaptor for AMP® RJ45 IT connectors in angled plates Simon

REFERENCE NO.: 75540-39 R.P.: Price on request AMP® RJ45 IT connector category 5e UTP


REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82579-31 R.P.: Price on request Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82

Angled voice and data plate with 2 AMP® category 6 UTP RJ45 connectors, cover and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75001-39 R.P.: Price on request Adaptor for AMP® RJ45 IT connectors in angled plates Simon


REFERENCE NO.: 75544-39 R.P.: Price on request AMP® RJ45 IT connector category 6 UTP

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82579-31 R.P.: Price on request Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82

Angled voice and data plate with 2 AMP® category 5e shielded FTP RJ45 connectors, cover and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75001-39 R.P.: Price on request Adaptor for AMP® RJ45 IT connectors in angled plates Simon

REFERENCE NO.: 75541-39 R.P.: Price on request AMP® RJ45 IT connector category 5e FTP

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82579-31 R.P.: Price on request Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82

Angled voice and data plate with 2 category 3 telephone connectors, cover and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75000-39 R.P.: Price on request Adaptor for RJ11 75528-39 telephone connector in angled plates Simon

REFERENCE NO.: 75528-39 R.P.: Price on request Telephone connector with 6 category-3 connections

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82579-31 R.P.: Price on request Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82

Angled voice and data plate with 2 Systimax® category 5e UTP RJ45 connectors, cover and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75002-39 R.P.: Price on request Adaptor for Systimax® RJ45 IT connectors in angled plates Simon


REFERENCE NO.: 75542-30 R.P.: Price on request Systimax® RJ45 IT connector category 5e UTP white

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82579-31 R.P.: Price on request Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82
