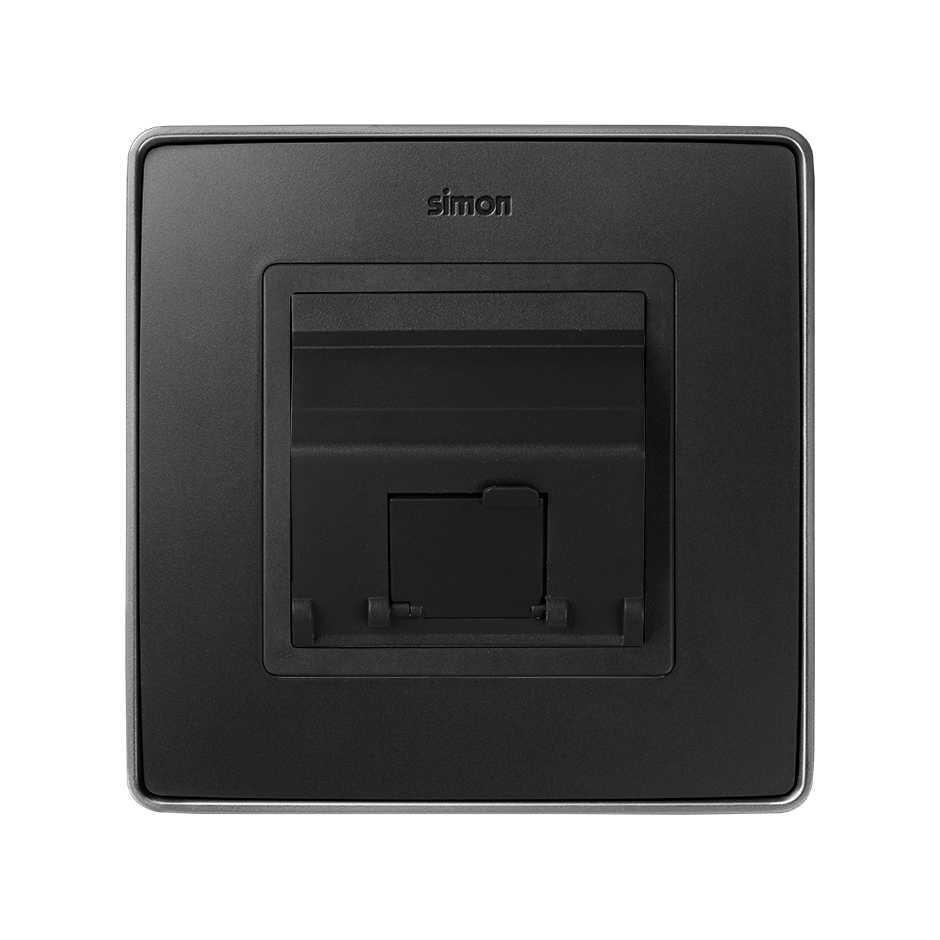

This image represents the combined solution of different references

Ref
82578-38

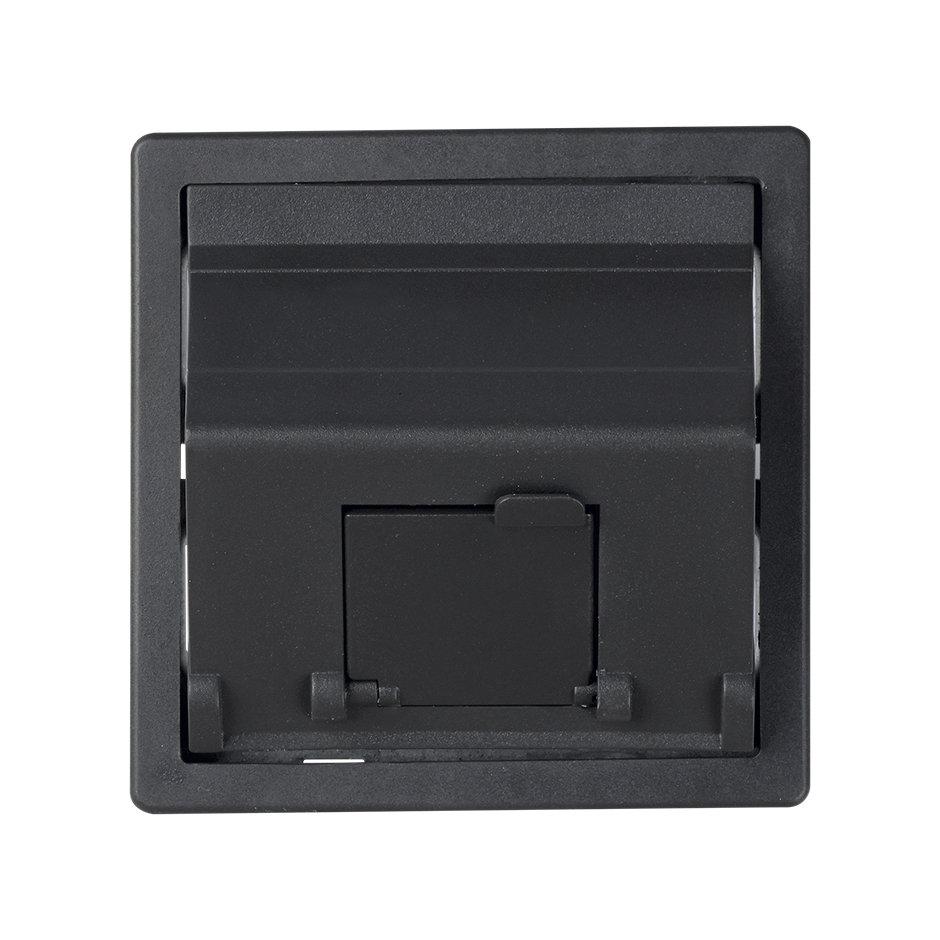

Angled voice and data plate with dust cover for 1 RJ45 connector graphite Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Angled plate for voice and data with dust cover for 1 RJ45 connector and is finished in graphite colour.

It is part of the Simon 82 series and can be both surface or flush mounted, so it in places with a temperature located between 5 and 40ºC, although it can withstand extreme temperatures of -25 to 50ºC, approximately.

It measures 55 x 55 mm and is made of thermoplastic, a material that is very easy to clean, as you will only need to wipe it with a soft cloth and slightly moistened in soapy water, forgetting to use abrasive cloths and / or abrasive cleaners containing chlorine in its formulation, as it could be damaged.

The Simon 82 series stands out for incorporate innovative functions (such as safety nets for children or light frame for location in the dark), due to its avant-garde finishes (organized in 4 families) and for being compatible with the mechanisms of the Simon 77 series.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 3 finishes. It is recommended to choose a frame with a base the same colour as the selected plate.

  • Finish

    Graphite

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information
  • Market available

    CE

  • Format

    RJ45

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Plate type

    Angled

  • RJ45 adaptor module

    Not Included

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information
  • Product volume

    0MMQ

  • Product net weight

    0.055KGM

  • Product gross weight

    0.055KGM

  • Packaging quantity

    5

  • Packaging height

    82MMT

  • Packaging width

    83MMT

  • Packaging length

    223MMT

  • Packaging volume

    1517738MMQ

  • Packaging net weight

    0.275KGM

  • Packaging gross weight

    0.554KGM

  • Packaging EAN

    8421053004289
