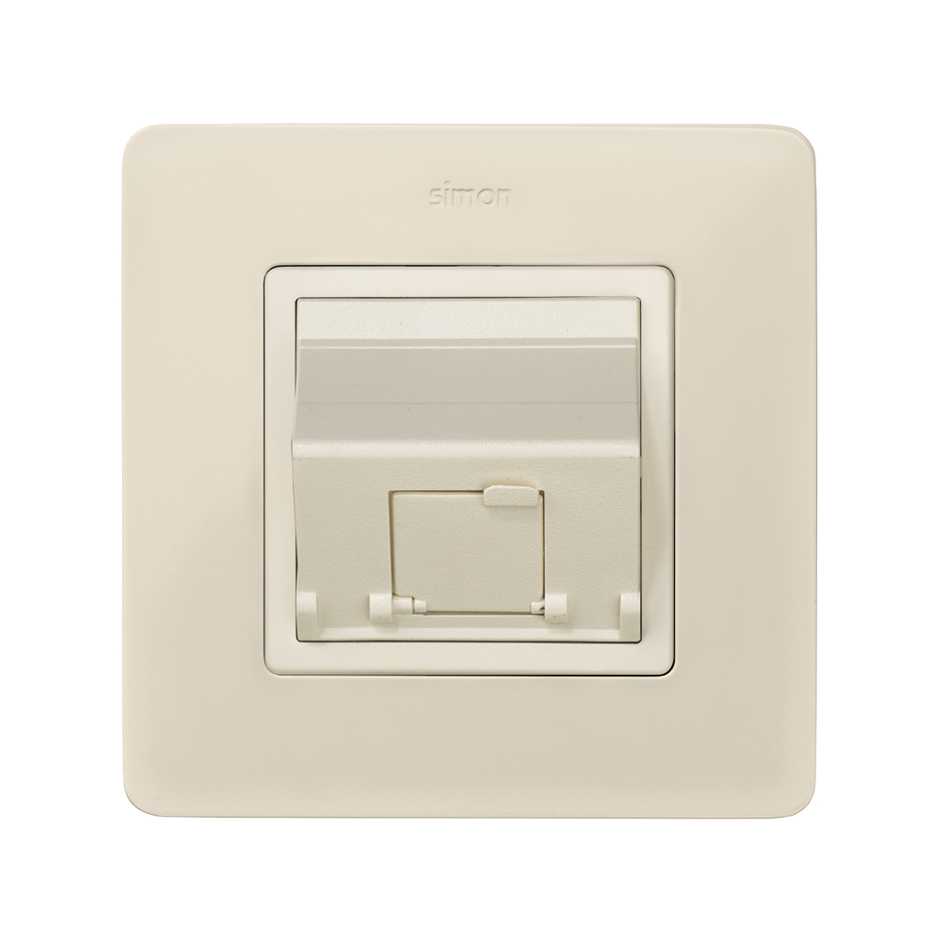

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82578-31

Angled voice and data plate with dust cover for 1 RJ45 connector ivory Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
82578-31-datasheet-en.pdf
Product declaration

  1. UES0027.pdf [313KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

<p class=>AMP RJ45 IT connector front view</p>
Ref
75544-39
AMP® RJ45 IT connector category 6 UTP
<p class=>Systimax RJ45 IT connector white front view</p>
Ref
75542-30
Systimax® RJ45 IT connector category 5e UTP white
<p class=>Adaptor for Systimax RJ45 connectors front view</p>
Ref
75002-39
Adaptor for Systimax® RJ45 IT connectors in angled plates Simon
<p class=>Adaptor for AMP RJ45 connectors front view</p>
Ref
75001-39
Adaptor for AMP® RJ45 IT connectors in angled plates Simon
<p class=>Systimax RJ45 IT connector black front view</p>
Ref
75542-32
Systimax® RJ45 IT connector category 5e UTP graphite
<p class=>Systimax RJ45 IT connector orange front view</p>
Ref
75542-37
Systimax® RJ45 IT connector category 5e UTP orange
<p class=>Systimax RJ45 IT connector ivory front view</p>
Ref
75542-31
Systimax® RJ45 IT connector category 5e UTP ivory
<p class=>AMP RJ45 IT connector front view</p>
Ref
75541-39
AMP® RJ45 IT connector category 5e FTP
<p class=>AMP RJ45 IT connector front view</p>
Ref
75540-39
AMP® RJ45 IT connector category 5e UTP
<p class=>Telephone connector category 3 front view</p>
Ref
75528-39
Telephone connector with 6 category-3 connections
Product Information
Downloads
Support

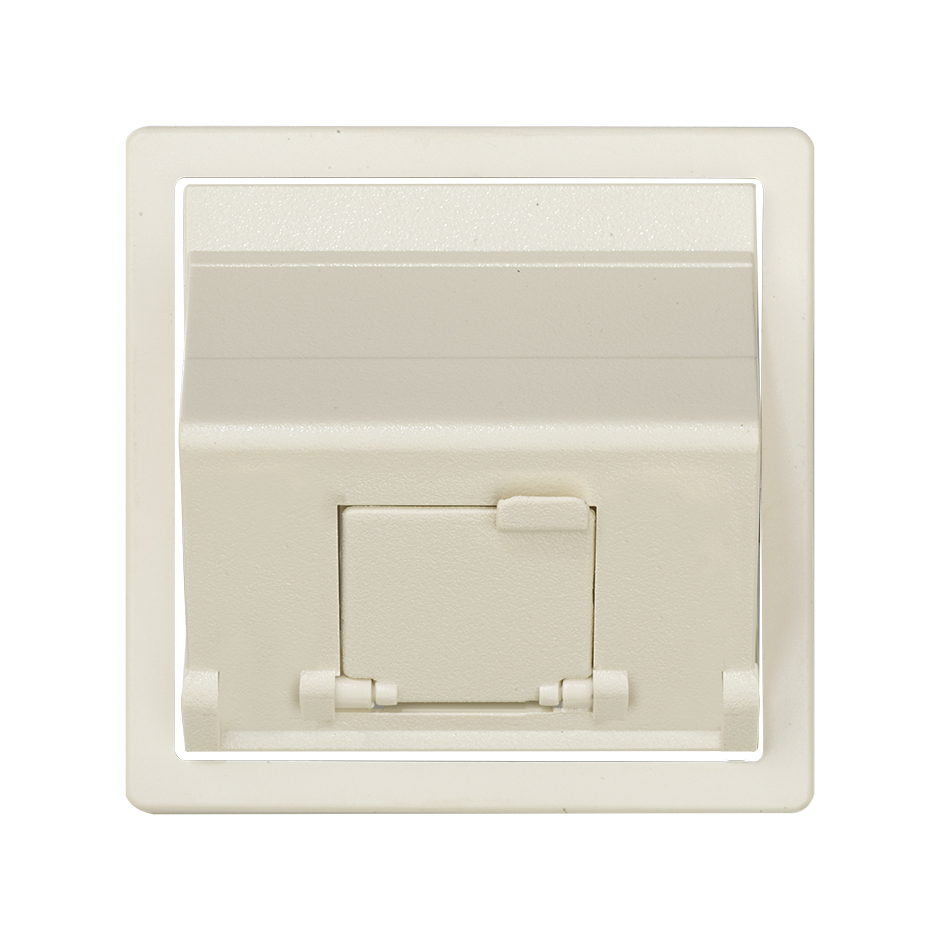

Plate of voice and data plate of the Simon 82 series, with dust cover and 1 RJ45 connector.

It has finished in ivory colour, although it is available in 3 finishes and it is recommended to choose the frame in the same baseboard colour as the selected plate.

This plate is suitable for both surface and flush mounting, located in rooms with a temperature between 5 and 40ºC, although it is able to withstand extreme temperatures of -25 to 50ºC, approximately, making it ideal for any type of climatology.

It measures 55 x 55 mm and is fabricated in thermoplastic, a material that is very easy to clean, as you will only need to use a soft cloth, slightly moistened in soapy water, without that you have to use never abrasive cloths or cleaners containing chlorine in its formulation, as it could be damaged and to make the plate does not worked.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 3 finishes. It is recommended to choose a frame with a base the same colour as the selected plate.

  • Finish

    Ivory

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information

  • Market available

    CE

  • Format

    RJ45

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Plate type

    Angled

  • RJ45 adaptor module

    Not Included

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information

  • Product net weight

    0.056KGM

  • Product gross weight

    0.056KGM

  • Packaging quantity

    5

  • Packaging height

    82MMT

  • Packaging width

    83MMT

  • Packaging length

    223MMT

  • Packaging volume

    1517738MMQ

  • Packaging net weight

    0.28KGM

  • Packaging gross weight

    0.28KGM

  • Packaging EAN

    8421053004272
