Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82

Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82

REFERENCE NO.: 82578-30

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

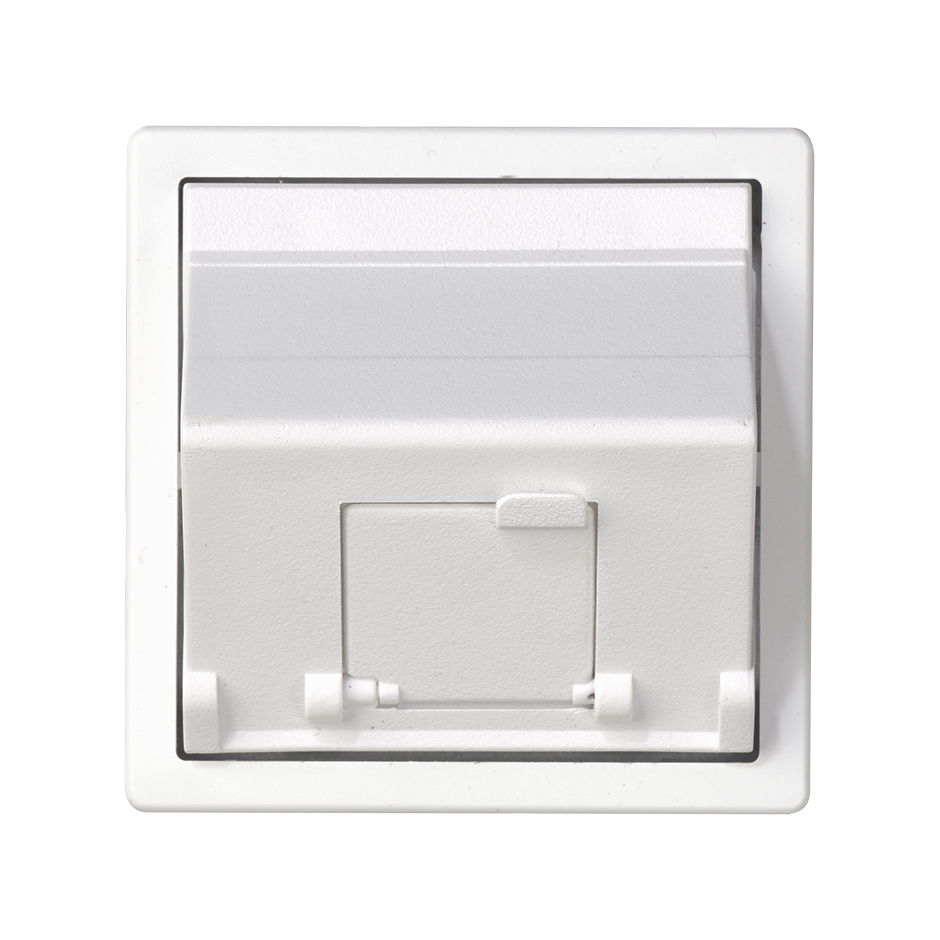

Angled voice and data plate with 1 RJ45 Simon 82 white front view


This image represents the combination of different references

Angled voice and data plate with 1 RJ45 Simon 82 white packaging

82578-30-placa-voz-datos-inclinada-con-guardapolvo-1-rj45-blanco-simon-82-frontal_5.jpg

SERIES: Simon 82 FINISH: White MATERIAL: Plastic FORMAT: RJ45 DIMENSIONS: 55x55 mm COMPATIBLE SERIES: Simon 82 Detail Simon 82 Nature Simon 82 Adaptor modules RJ45

75001-39

75002-39

75528-39

75540-39

75541-39

75542-30

Product description

The Plate for voice and data tilted plate with dust cover for an RJ45 connector in white of the Simon 82 series perfectly combines simple functionality, innovative design and maximum security. Its installation, which can be carried out in a comfortable and simple way in a few minutes, can be carried out in a universal recessed box or, in its absence, a baseboard surface-mounted. This is a universal adaptor with dimensions of 55x55 mm available in three different finishes, so we always recommend choosing a frame with the same baseboard colour as the selected plate, to clean it without affecting the thermoplastic materials with which it has been manufactured, a soft, damp cloth is sufficient. With this simple maintenance we will keep its structure free of oxidation due to the humidity and temperature of the ambience. All with a relationship between quality and price that is unmatched.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: White

Format: RJ45

Plate type: Angled

Number of connectors: 1

Dust shutter: Yes

RJ45 adaptor module: Not Included

Indicator function: No

Symbol: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Plate

Remarks: Available in 3 finishes. It is recommended to choose a frame with a base the same colour as the selected plate.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2011/65/UE RoHS + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 82.000

Wide: 83.000

Depth: 223.000

Box volume: 1517738.000

Box volume measurement unit: MMQ

Net weight of box: 0.280

Unit weight of box: KGM

EAN code: 8421053004265

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Unit weight of multiple box: KG

Available on pallet: No

82578-30-placa-voz-datos-inclinada-con-guardapolvo-1-rj45-blanco-simon-82-frontal_6.jpg

Angled voice and data plate with 1 RJ45 Simon 82 white front view


This image represents the combination of different references


Angled voice and data plate with 1 category 3 telephone connector with cover and frame Simon 82 Detail Select white aluminium base R.P.: Price on request

REFERENCE NO.: 75528-39 R.P.: Price on request Telephone connector with 6 category-3 connections

8201610-243-marco-1-elemento-blanco-base-aluminio-select-simon-detail-82-frontal_7.jpg

REFERENCE NO.: 8201610-243 R.P.: Price on request Frame for 1 element white aluminium base Simon 82 Detail Select

REFERENCE NO.: 82578-30 R.P.: Price on request Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82

Angled voice and data plate with 1 AMP® category 6 UTP RJ45 connector with cover and frame Simon 82 Detail Select white aluminium base R.P.: Price on request

REFERENCE NO.: 75001-39 R.P.: Price on request Adaptor for AMP® RJ45 IT connectors in angled plates Simon


REFERENCE NO.: 75544-39 R.P.: Price on request AMP® RJ45 IT connector category 6 UTP

REFERENCE NO.: 8201610-243 R.P.: Price on request Frame for 1 element white aluminium base Simon 82 Detail Select

REFERENCE NO.: 82578-30 R.P.: Price on request Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82

Angled voice and data plate with 1 Systimax® category 5e UTP RJ45 connector with cover and frame Simon 82 Detail Select white aluminium base R.P.: Price on request

REFERENCE NO.: 75002-39 R.P.: Price on request Adaptor for Systimax® RJ45 IT connectors in angled plates Simon

REFERENCE NO.: 75542-30 R.P.: Price on request Systimax® RJ45 IT connector category 5e UTP white

REFERENCE NO.: 8201610-243 R.P.: Price on request Frame for 1 element white aluminium base Simon 82 Detail Select

REFERENCE NO.: 82578-30 R.P.: Price on request Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82

Angled voice and data plate for 1 AMP® category 5e UTP RJ45 connector with cover and frame Simon 82 Detail Select white aluminium base R.P.: Price on request

REFERENCE NO.: 75001-39 R.P.: Price on request Adaptor for AMP® RJ45 IT connectors in angled plates Simon

REFERENCE NO.: 75540-39 R.P.: Price on request AMP® RJ45 IT connector category 5e UTP

REFERENCE NO.: 8201610-243 R.P.: Price on request Frame for 1 element white aluminium base Simon 82 Detail Select

REFERENCE NO.: 82578-30 R.P.: Price on request Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82

Angled voice and data plate for 1 AMP® category 5e shielded FTP RJ45 connector with cover and frame Simon 82 Detail Select white aluminium base R.P.: Price on request

REFERENCE NO.: 75001-39 R.P.: Price on request Adaptor for AMP® RJ45 IT connectors in angled plates Simon

REFERENCE NO.: 75541-39 R.P.: Price on request AMP® RJ45 IT connector category 5e FTP

REFERENCE NO.: 8201610-243 R.P.: Price on request Frame for 1 element white aluminium base Simon 82 Detail Select

REFERENCE NO.: 82578-30 R.P.: Price on request Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82
