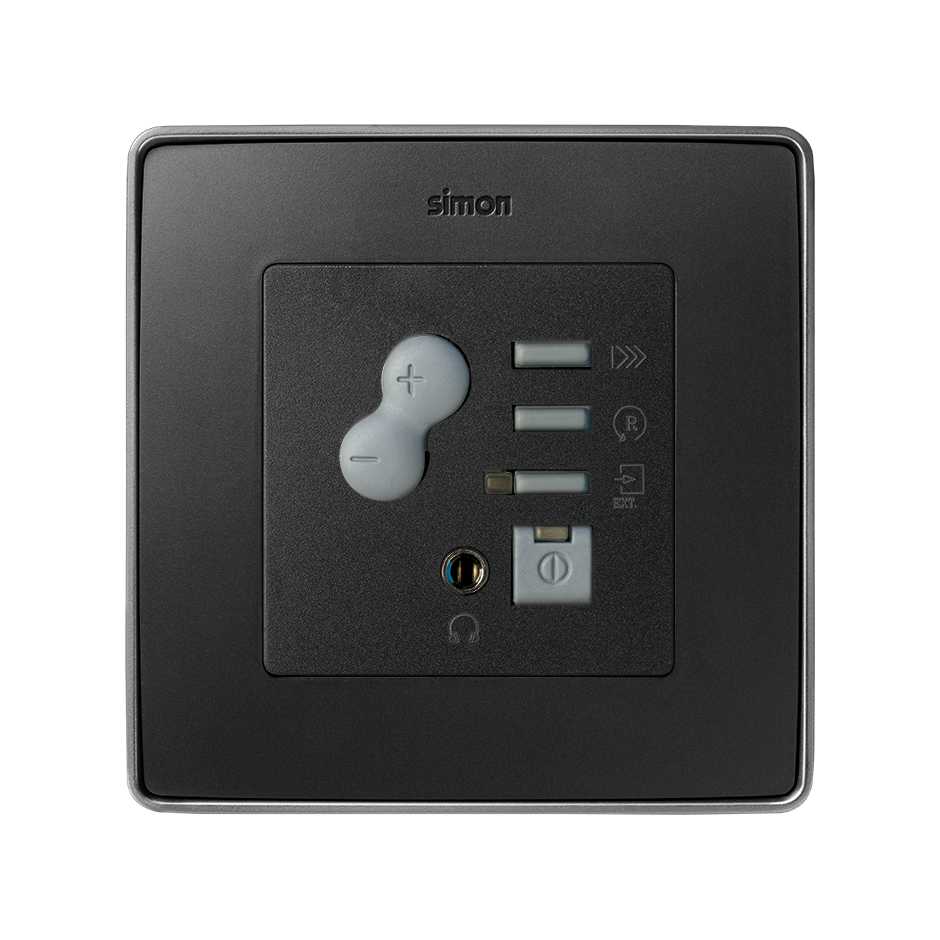

This image represents the combined solution of different references

This image represents the combined solution of different references


This image represents the combined solution of different references

Ref
82522-38

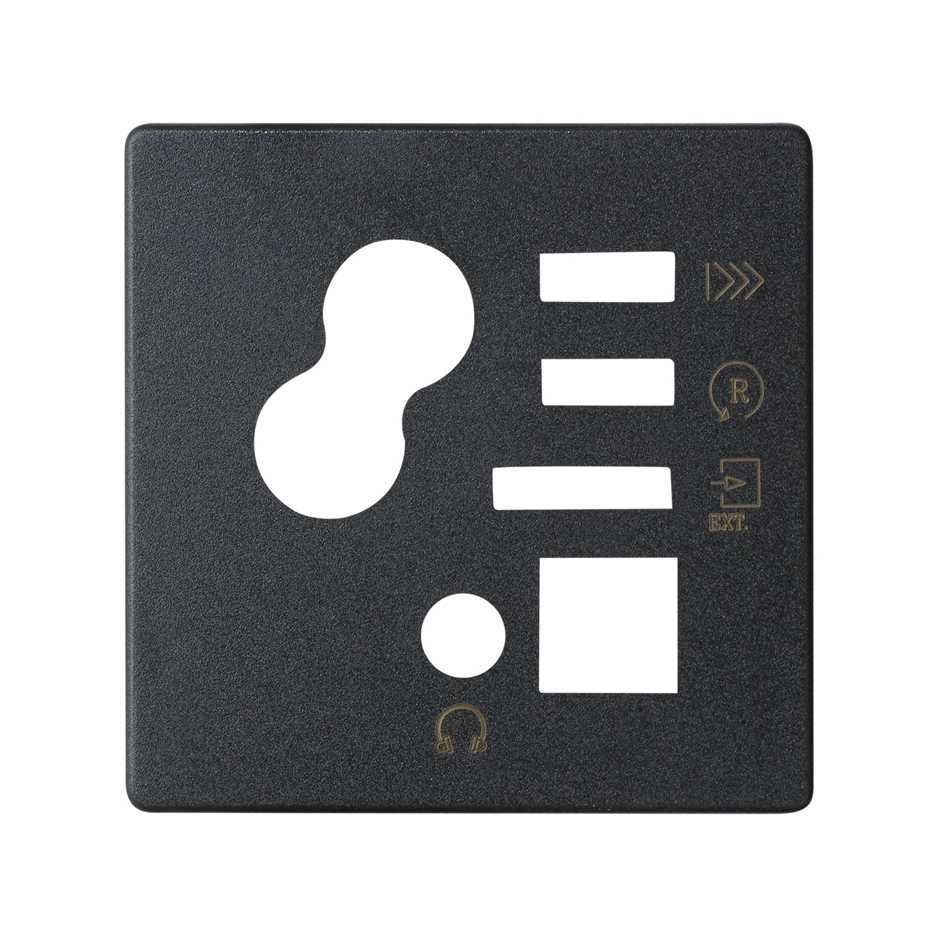

Digital control plate 1 trunking with FM tuner and 3.5 mm jack output graphite Simon 82

Price/Unit
€4.18
Packaging quantity
5 Units

Available downloads

Data sheet

82522-38.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 3 finishes. It is recommended to choose a frame with a base the same colour as the selected plate.

  • Finish

    Graphite

  • Symbol

    Headphones

  • Material

    Plastic

  • Packaging contents

    Plate

Technical Information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    No aplica

Logistics Information
  • Product volume

    597780 MMQ

  • Product net weight

    0.014 KGM

  • Product gross weight

    0.014 KGM

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    0.598 DMQ

  • Packaging net weight

    0.07 KGM

  • Packaging gross weight

    0.07 KGM

  • Packaging EAN

    8421053059333
