Ref
82452-30

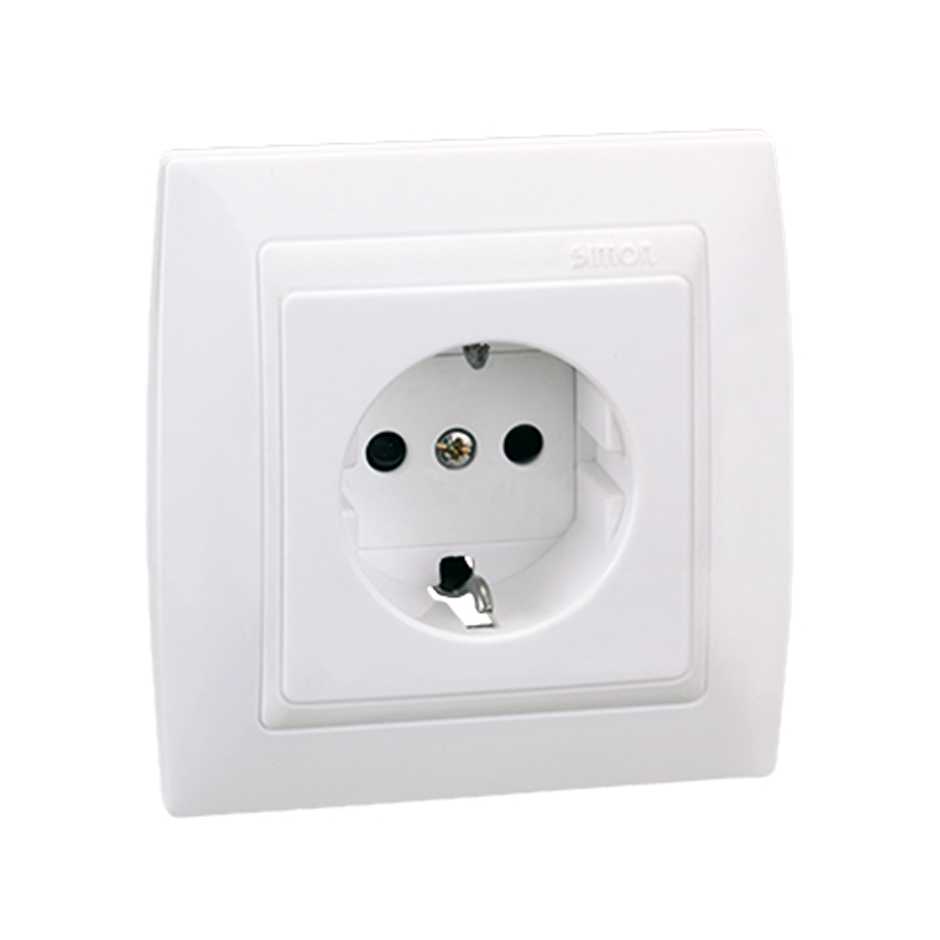

German monoblock socket outlet 16A 250V~ with safety device and screw terminal connection system white Simon 82

Price/Unit
Price on request
Discontinued
Packaging quantity
10 Units

Available downloads

Technical specifications
82452-30-datasheet-en.pdf
Product declaration

  1. UES0017_9.pdf [219KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82

Product Information
Downloads
Support
Basic information

  • Finish

    White

  • Packaging contents

    Socket outlet with cover and frame

Technical information

  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance

  • Cable stripping necessary (mm)

    13

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    UNE 20315-1-1:2009, UNE 20315-1-2:2009

Logistics Information

  • Product volume

    3685500MMQ

  • Product net weight

    0.122KGM

  • Product gross weight

    0.122KGM

  • Packaging quantity

    10

  • Packaging height

    91MMT

  • Packaging width

    180MMT

  • Packaging length

    225MMT

  • Packaging volume

    3685500MMQ

  • Packaging net weight

    1.22KGM

  • Packaging gross weight

    1.22KGM

  • Packaging EAN

    8421053029305
