Plate for R/TV/SAT inductive sockets ivory Simon 82

REFERENCE NO.: 82097-31

R.P.: Price on request

PACKAGING: 20Units

Variables de unidades de obras ---> -false-false

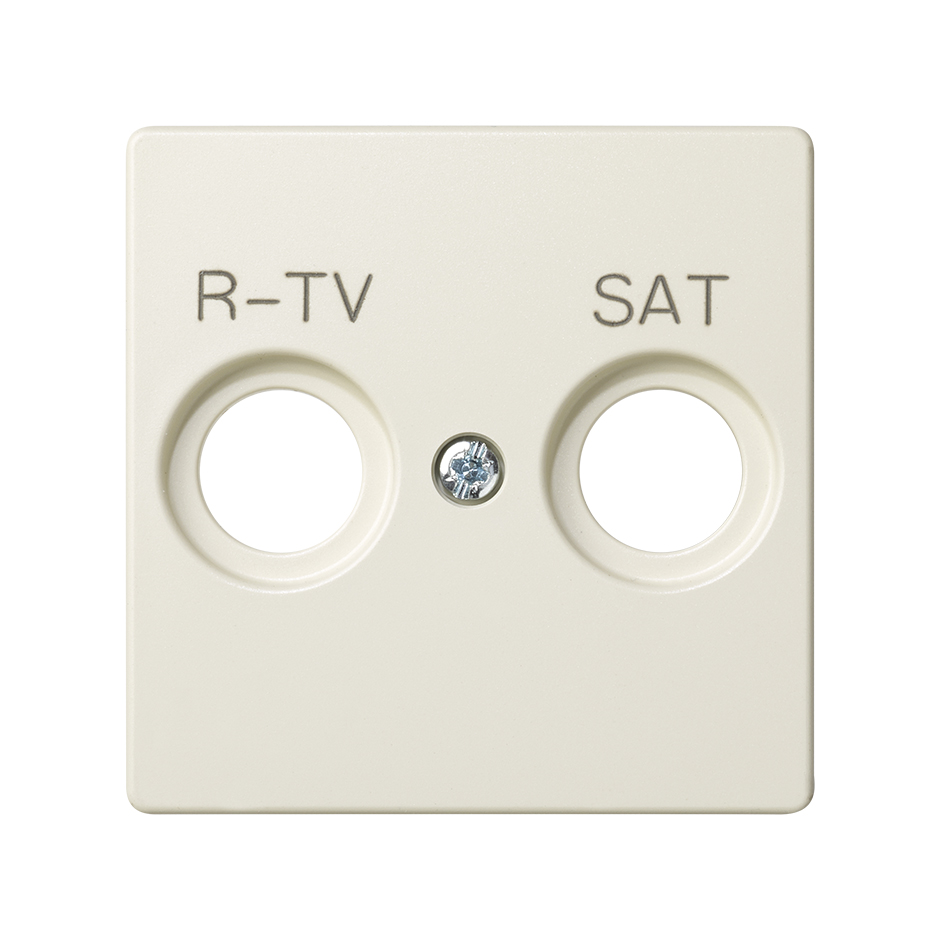

Plate for R/TV/SAT inductive sockets Simon 82 ivory front view

This image represents the combination of different references

Plate for R/TV/SAT inductive sockets Simon 82 ivory packaging


SERIES: Simon 82 FINISH: Ivory MATERIAL: Plastic FORMAT: R/TV+SAT DIMENSIONS: 55x55 mm TV sockets

75466-69

75467-69

75468-69

75487-39

75488-39

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Ivory

Format: R-TV+SAT

Indicator function: No

Symbol: Yes, includes R/TV and SAT symbol

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Plate

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: UNE-EN 50083-2:2013

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 20

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.360

Unit weight of box: KGM

EAN code: 8421053050217

Available in multiple box: No

Available on pallet: No

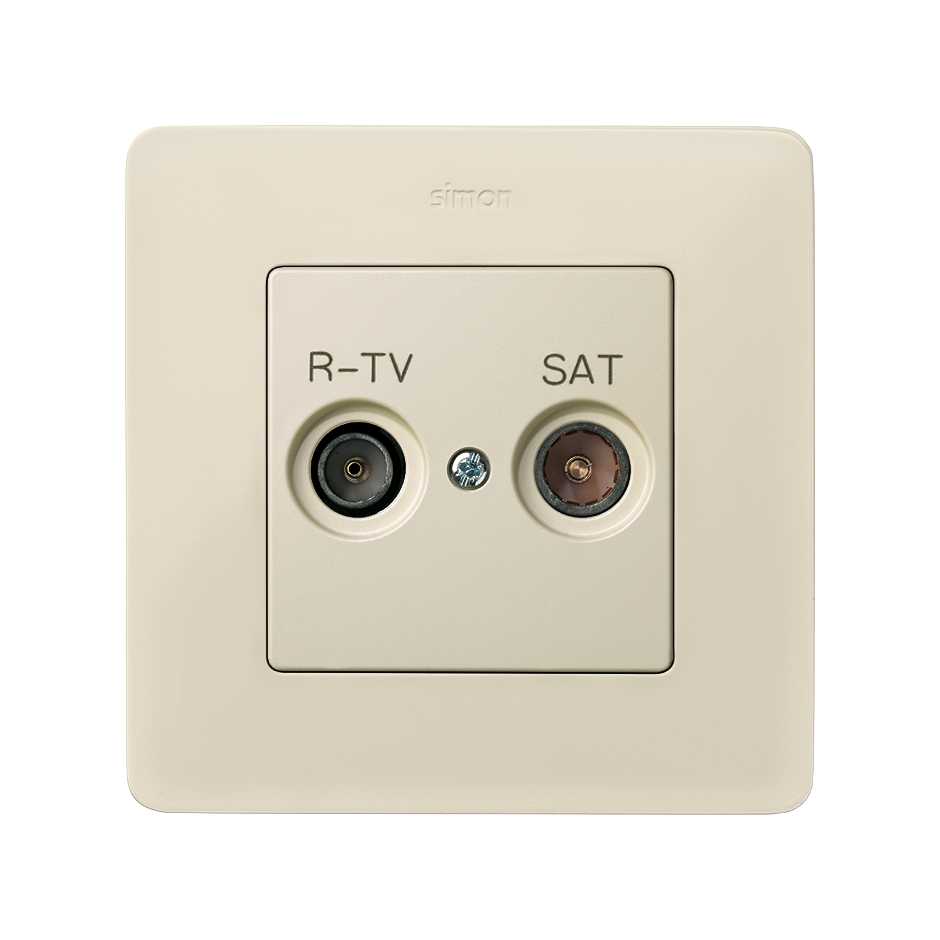

Plate for R/TV/SAT inductive sockets Simon 82 ivory front view

This image represents the combination of different references

R-TV+SAT single socket with plate and frame Simon 82 Detail Select ivory R.P.: Price on request

REFERENCE NO.: 75466-69 R.P.: Price on request R/TV+SAT modular signal socket outlet modular single


REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82097-31 R.P.: Price on request Plate for R/TV/SAT inductive sockets ivory Simon 82

R-TV+SAT intermediate socket with plate and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75467-69 R.P.: Price on request R/TV+SAT modular signal socket outlet intermediate

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82097-31 R.P.: Price on request Plate for R/TV/SAT inductive sockets ivory Simon 82

R-TV+SAT end socket with plate and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75468-69 R.P.: Price on request R/TV+SAT modular signal socket outlet final

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82097-31 R.P.: Price on request Plate for R/TV/SAT inductive sockets ivory Simon 82

R-TV+SAT intermediate socket with plate and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75487-39 R.P.: Price on request R/TV+SAT non-modular signal socket outlet intermediate

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82097-31 R.P.: Price on request Plate for R/TV/SAT inductive sockets ivory Simon 82

R-TV+SAT end socket with plate and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75488-39 R.P.: Price on request R/TV+SAT non-modular signal socket outlet final

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82097-31 R.P.: Price on request Plate for R/TV/SAT inductive sockets ivory Simon 82
