Cover with viewer for mechanical or electronic card switch graphite Simon 82

REFERENCE NO.: 82078-68
R.P.: Price on request
PACKAGING: 5Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82
Version:  Single
Finish:  Graphite
Indicator function:  Yes
Symbol:  No
No. of possible elements:  1 element
Compatibility:  Simon 26 and Simon 75 mechanisms
Installation direction:  Vertical and horizontal
Packaging contents:  Cover
Remarks:  Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions:  55x55 mm
IP rating:  20
RAL:  Does not have
Manufacturing material:  Thermoplastic
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  5
Box measurement unit:  MM
Height:  81.000
Wide:  81.000
Depth:  91.000
Box volume:  0.597
Box volume measurement unit:  CDM
Net weight of box:  55.600
Unit weight of box:  KGM
EAN code:  8421053077726
Available in multiple box:  No
Multiple box measurement unit:  MM
Multiple box packaging quantity measurement unit:  UN
Multiple box volume measurement unit:  MM3
Unit weight of multiple box:  KG
Available on pallet:  No

GALLERY


Cover graphite application in hotel

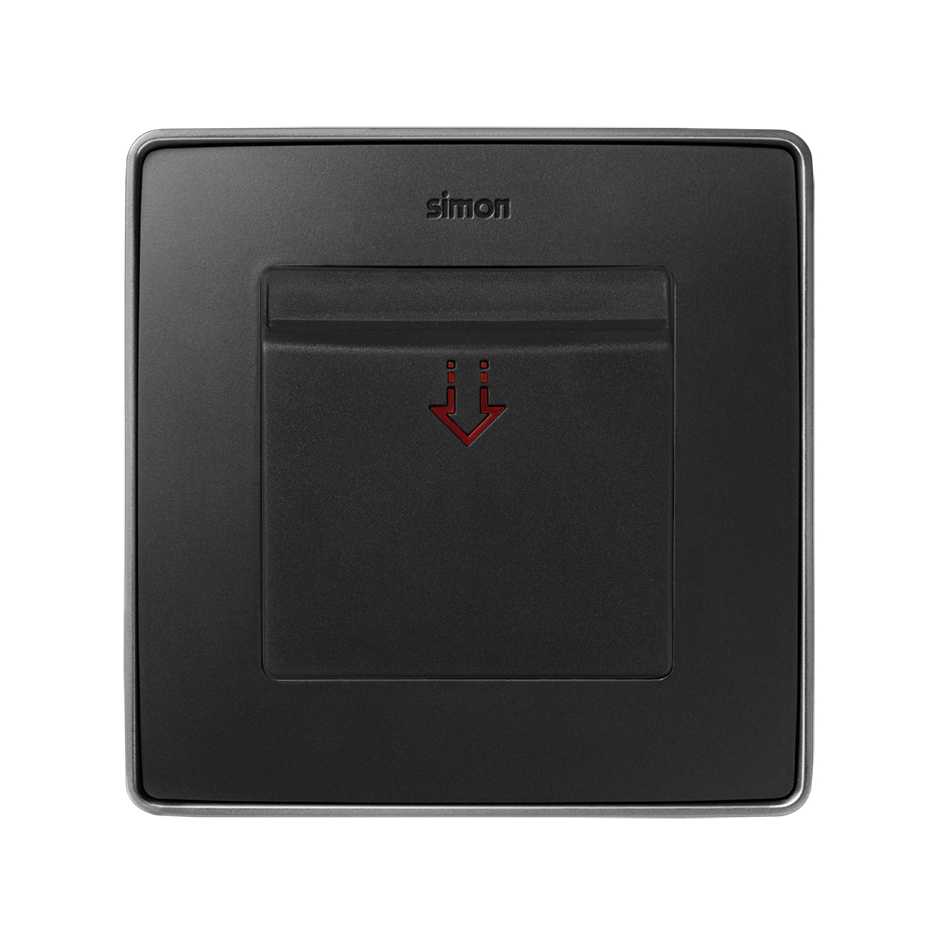

Cover with viewer card switch Simon 82 graphite front view


This image represents the combination of different references


PRODUCT DECLARATIONS

MODULAR SOLUTION

Switch for encoded card with indicator light, rocker and frame Simon 82 Detail Select graphite aluminium base R.P.: Price on request
