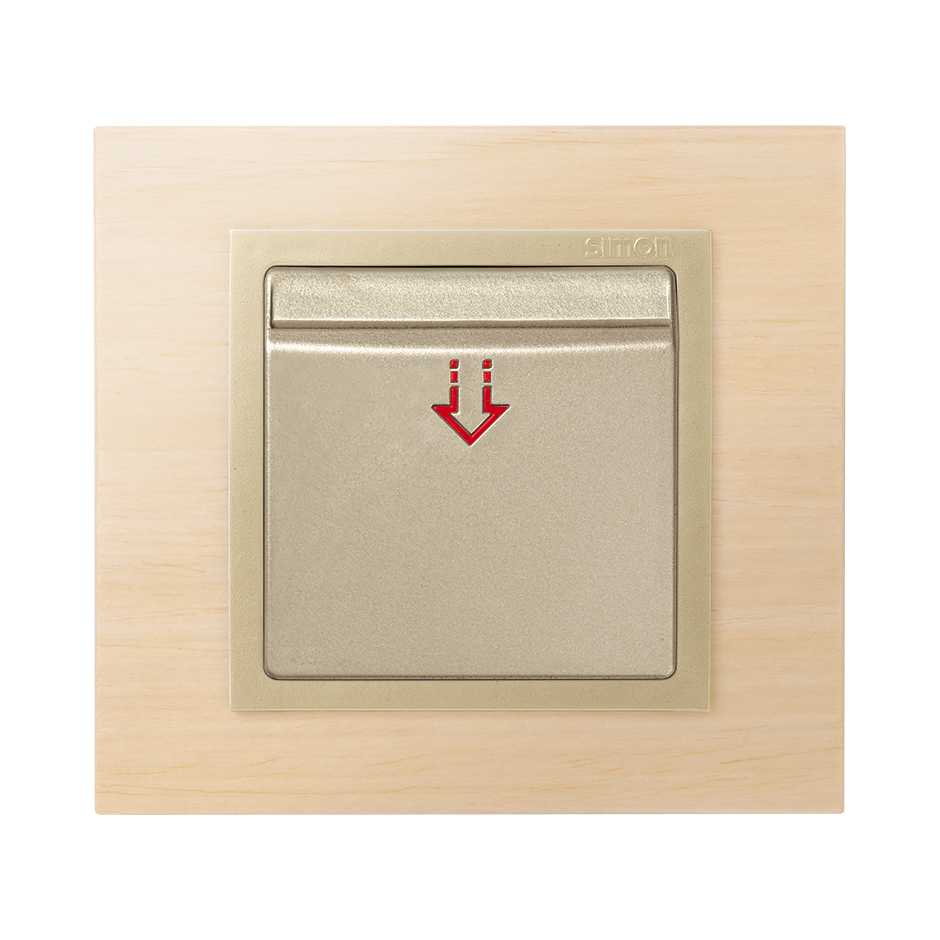

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82078-64

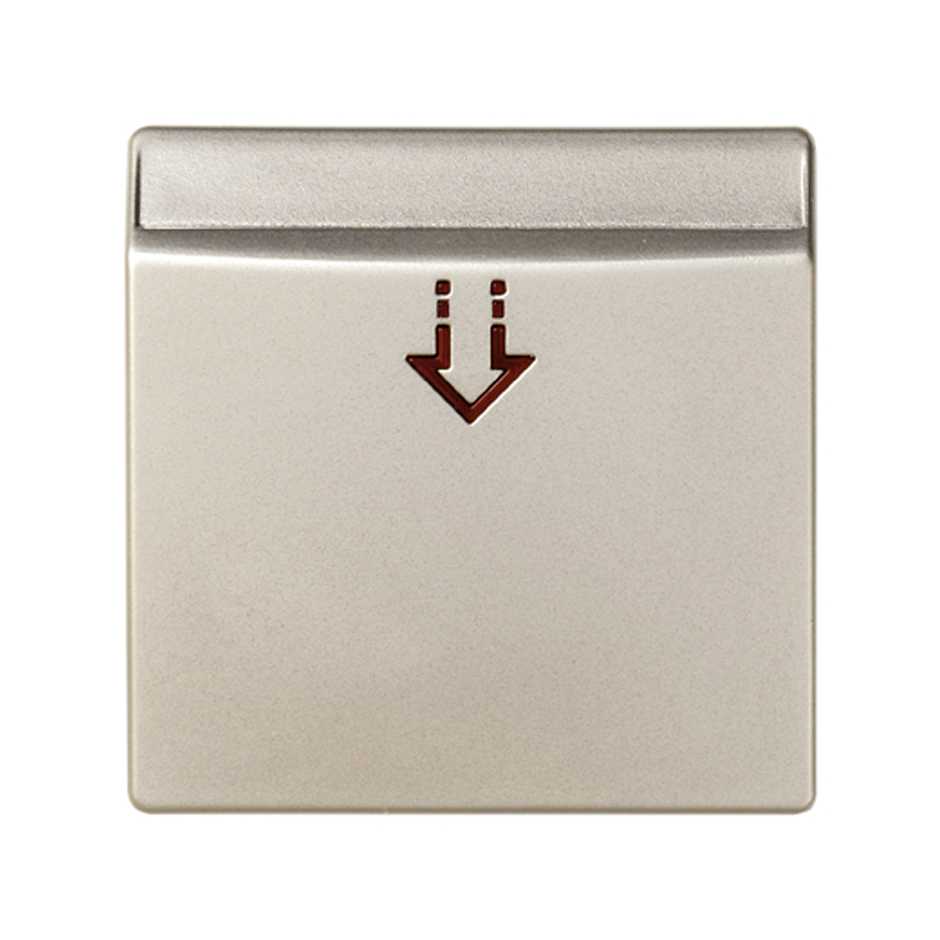

Cover with viewer for mechanical or electronic card switch champagne Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
82078-64-en-datasheet.pdf
Product declaration

  1. UES0016.pdf [729KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

<p class=>Card switch 5A 230V~ front view</p>
Ref
75558-39
Switch for card 5A 230V~ with light indicator and adjustable timing from 0 seconds to 10 minutes
Product Information
Downloads
Support

Achieve the perfect finish for mechanical or electronic card switch, with the cover with viewer of the Simon 82 collection. In a sophisticated champagne colour, the cover with viewer of this range, prevents the mechanism and guarantees optimum beaconing of its card switch for a a low lighting, not increased we actuate the device as it includes a signaling function.

With a compact size of 55 x 55 mm, it is suitable for installation in recessed or surface-mounted, guaranteeing the integration of the set in the space, at the same time that is fitting to the specific needs of each room.

For a more and more efficient protection in case of fire, the cover with viewer Simon 82 is composed of galvanized thermoplastic, which protects the piece of knocks and tears, and can reach to reach maximum temperatures of -25 and 50 ºC.

Innovation, functionality and design when connected to the maximum security, within the cover with viewer for card switch of the Simon 82 collection.

Basic information

  • Compatibility

    Simon 26 and Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Material

    Plastic

  • Packaging contents

    Cover

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Dir. 2014/35/UE LVD|Dir. 2011/65/UE RoHS + post. mod.|EN IEC 61058-1:2018 |EN 61058-1-1:2016|EN IEC 63000:2018

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    597780MMQ

  • Product net weight

    0.017KGM

  • Product gross weight

    0.017KGM

  • Product EAN

    8421053259382

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    0.598DMQ

  • Packaging net weight

    0.085KGM

  • Packaging gross weight

    0.085KGM

  • Packaging EAN

    8421053077719
