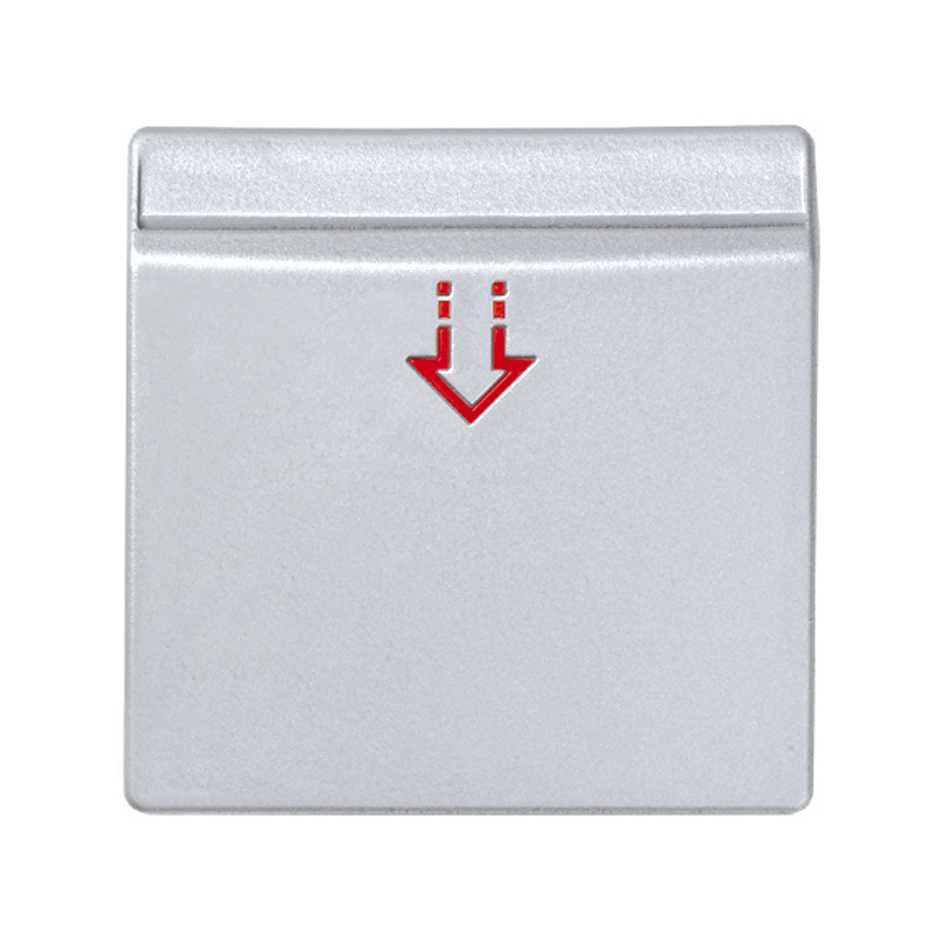

Cover with viewer for mechanical or electronic card switch aluminium Simon 82

REFERENCE NO.: 82078-63
R.P.: Price on request
PACKAGING: 5Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82
Version:  Single
Finish:  Aluminium
Indicator function:  Yes
Symbol:  No
No. of possible elements:  1 element
Compatibility:  Simon 26 and Simon 75 mechanisms
Installation direction:  Vertical and horizontal
Packaging contents:  Cover
Remarks:  Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions:  55x55 mm
IP rating:  20
RAL:  Does not have
Manufacturing material:  Galvanised thermoplastic
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  5
Box measurement unit:  MM
Height:  81.000
Wide:  82.000
Depth:  90.000
Box volume:  0.598
Box volume measurement unit:  CDM
Net weight of box:  0.085
Unit weight of box:  KGM
EAN code:  8421053077702
Available in multiple box:  No
Multiple box measurement unit:  MM
Multiple box packaging quantity measurement unit:  UN
Multiple box volume measurement unit:  MM3
Unit weight of multiple box:  KG
Available on pallet:  No

GALLERY


Cover graphite application in hotel

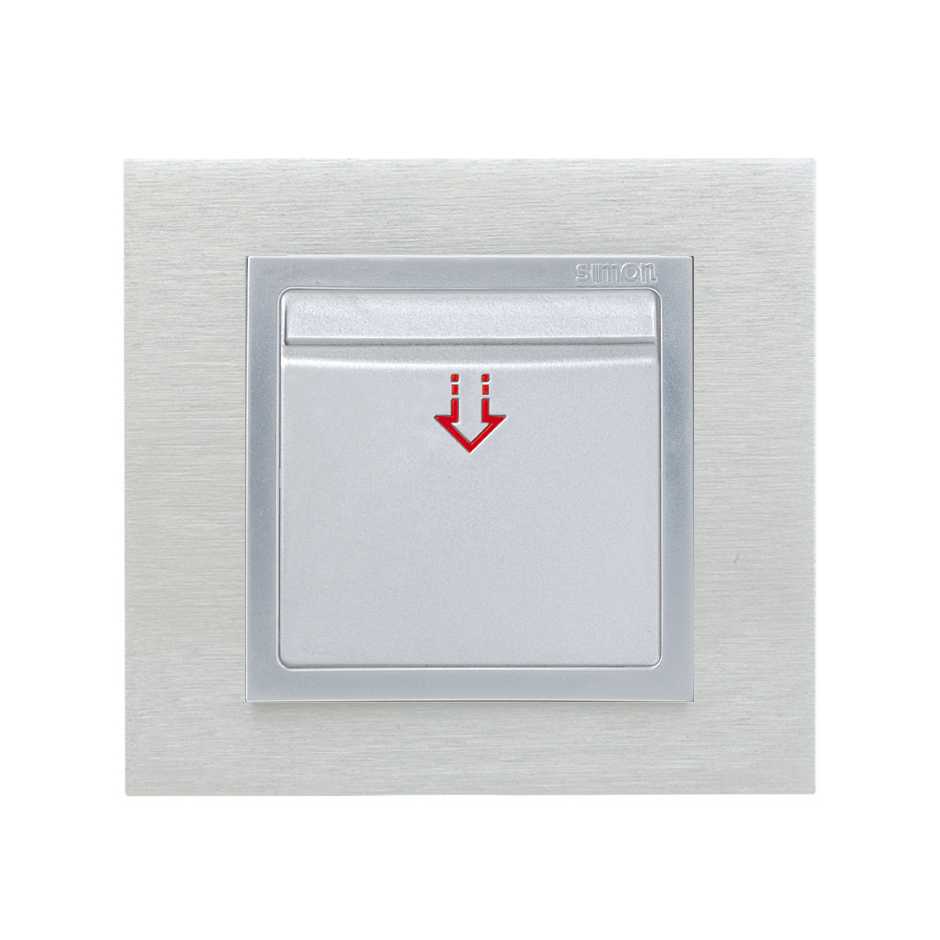

Cover with viewer card switch Simon 82 aluminium front view


This image represents the combination of different references
