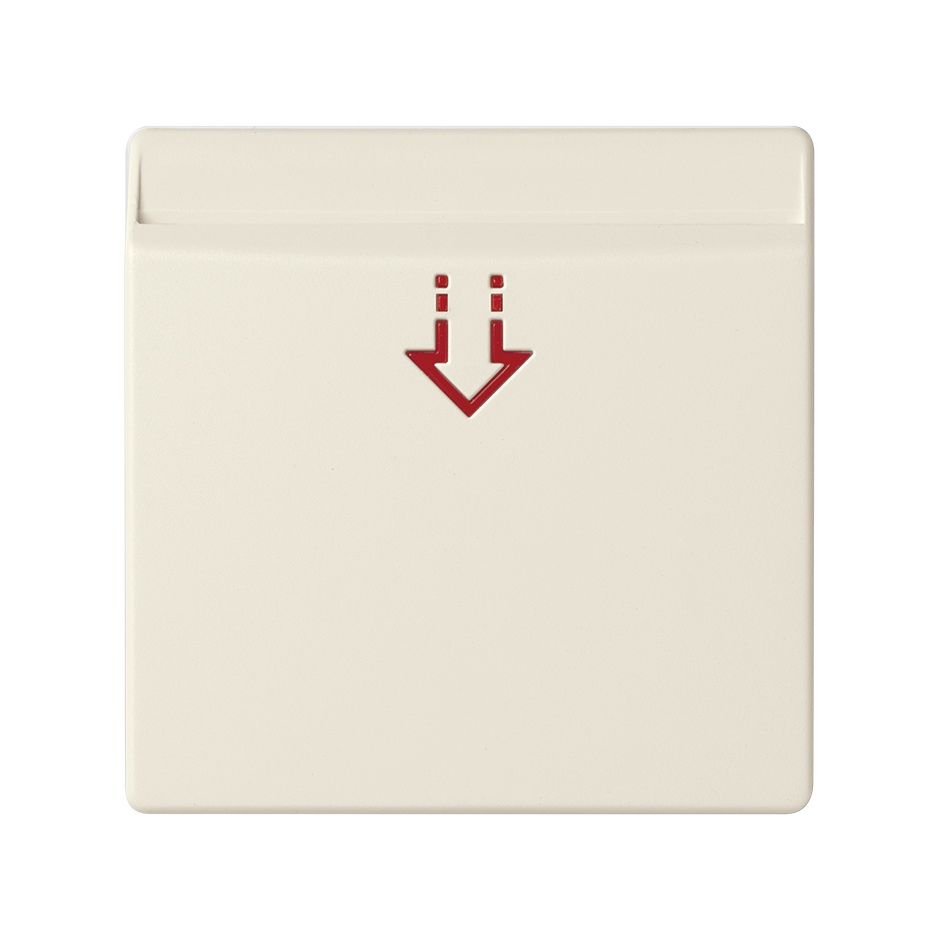

Cover with viewer for mechanical or electronic card switch ivory Simon 82

REFERENCE NO.: 82078-61
R.P.: Price on request
PACKAGING: 5Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82
Version:  Single
Finish:  Ivory
Indicator function:  Yes
Symbol:  No
No. of possible elements:  1 element
Compatibility:  Simon 26 and Simon 75 mechanisms
Installation direction:  Vertical and horizontal
Packaging contents:  Cover
Remarks:  Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions:  55x55 mm
IP rating:  20
RAL:  Does not have
Manufacturing material:  Thermoplastic
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  UNE-EN 61058-1:2004 + A2:2008

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  5
Box measurement unit:  MM
Height:  81.000
Wide:  82.000
Depth:  90.000
Box volume:  0.598
Box volume measurement unit:  CDM
Net weight of box:  0.085
Unit weight of box:  KGM
EAN code:  8421053077696
Available in multiple box:  No
Available on pallet:  No

GALLERY

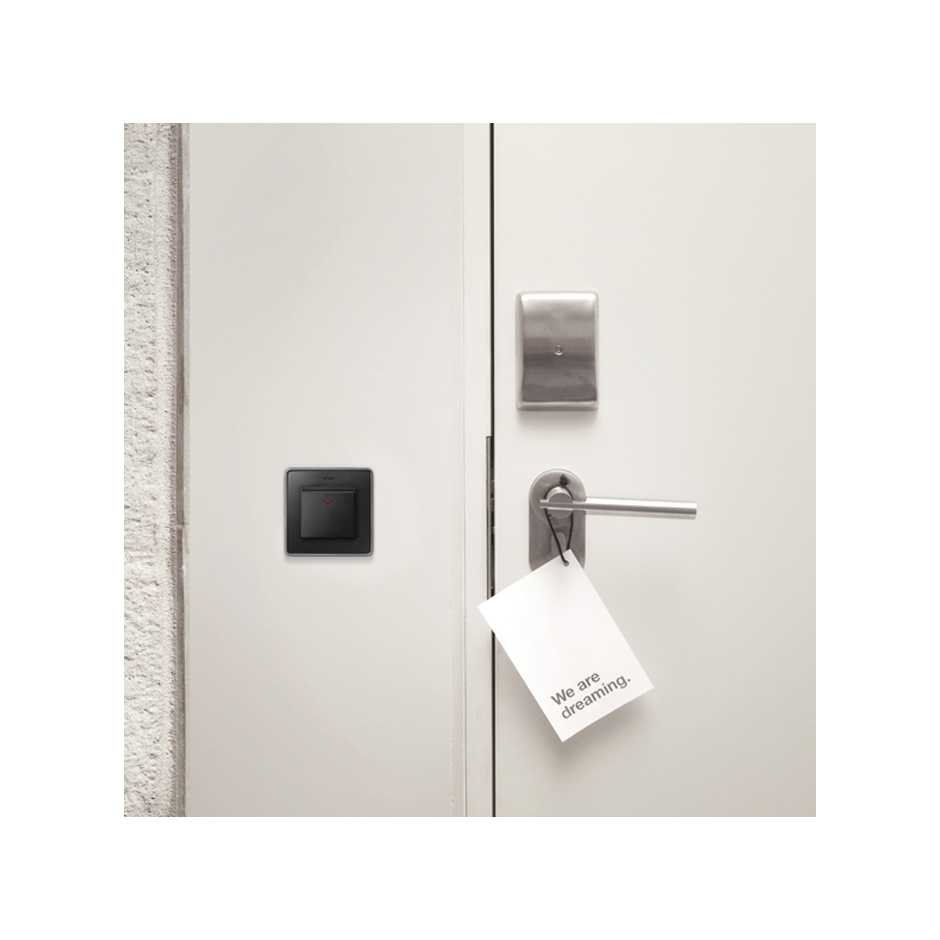

Cover graphite application in hotel

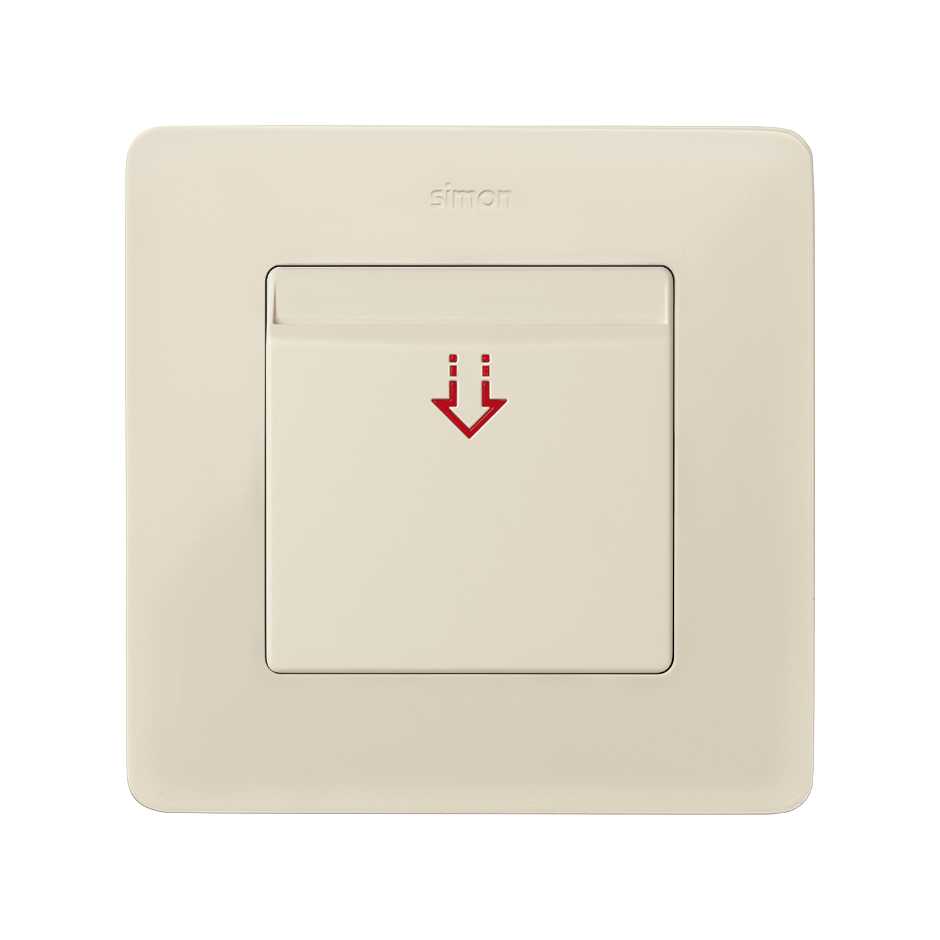

Cover with viewer card switch Simon 82 ivory front view


This image represents the combination of different references
