Cover with viewer for mechanical or electronic card switch white Simon 82

REFERENCE NO.: 82078-60

R.P.: Price on request

PACKAGING: 5 Units

Variables de unidades de obras ---> -false-false

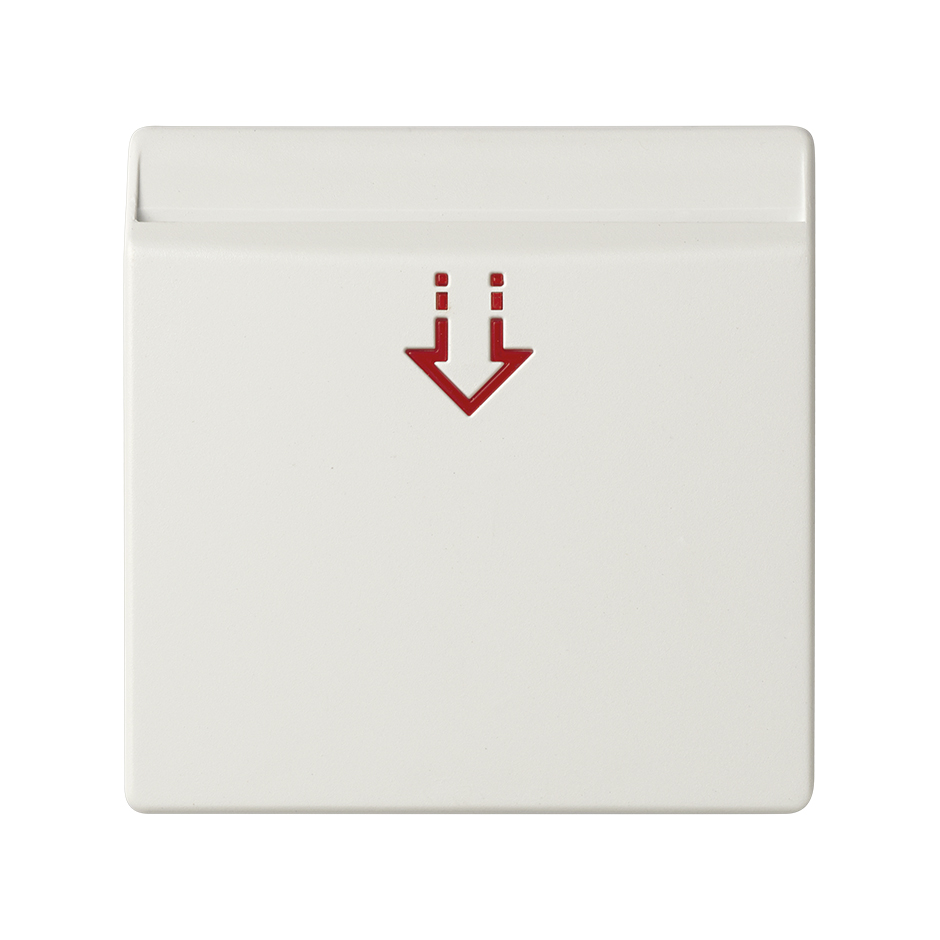

Cover with viewer card switch Simon 82 white front view


This image represents the combination of different references

Cover with viewer card switch Simon 82 white packaging

SERIES: Simon 82 FINISH: White MATERIAL: Plastic DIMENSIONS: 55x55 mm Special control switches

75558-39

Product description

Cover with viewer for mechanical or electronic card switch, finished in white colour and belonging to the Simon 82 series. The Simon 82 series is compatible with the Simon 77 series mechanism, which is a series that allows you to position, place the cables without having to peel or braid and, in addition, you will save time in the installation, since you will not need any additional tools to place it. This cover with 1 element and is available in 6 finishes and it is always recommended to choose the frame with the same baseboard colour of the selected rocker. It measures 55x55 mm and complies with the regulation European UNE-EN 61058-1: 2004 + A2: 2008. It is suitable for surface or flush mounting in places with a temperature of between 5 and 40ºC, although it can withstand a temperature end of -25 to 50ºC, approximately. Manufactured in thermoplastic, it is a cover that is very easy to clean, as you will only need to use a soft cloth slightly moistened in soapy water.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: White

Indicator function: Yes

No. of possible elements: 1 element

Compatibility: Simon 26 and Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Cover

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 0.598

Box volume measurement unit: CDM

Net weight of box: 0.085

Unit weight of box: KGM

EAN code: 8421053077689

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No


Cover graphite application in hotel

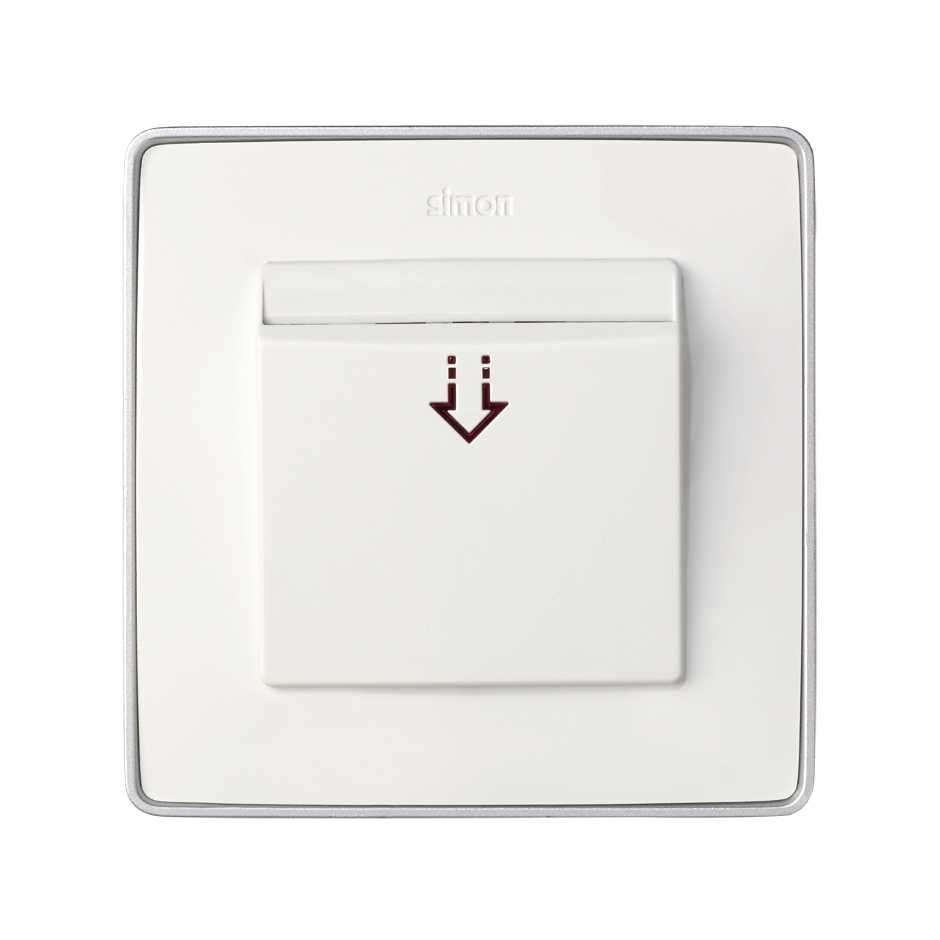

Cover with viewer card switch Simon 82 white front view
