Simon 82 Detail

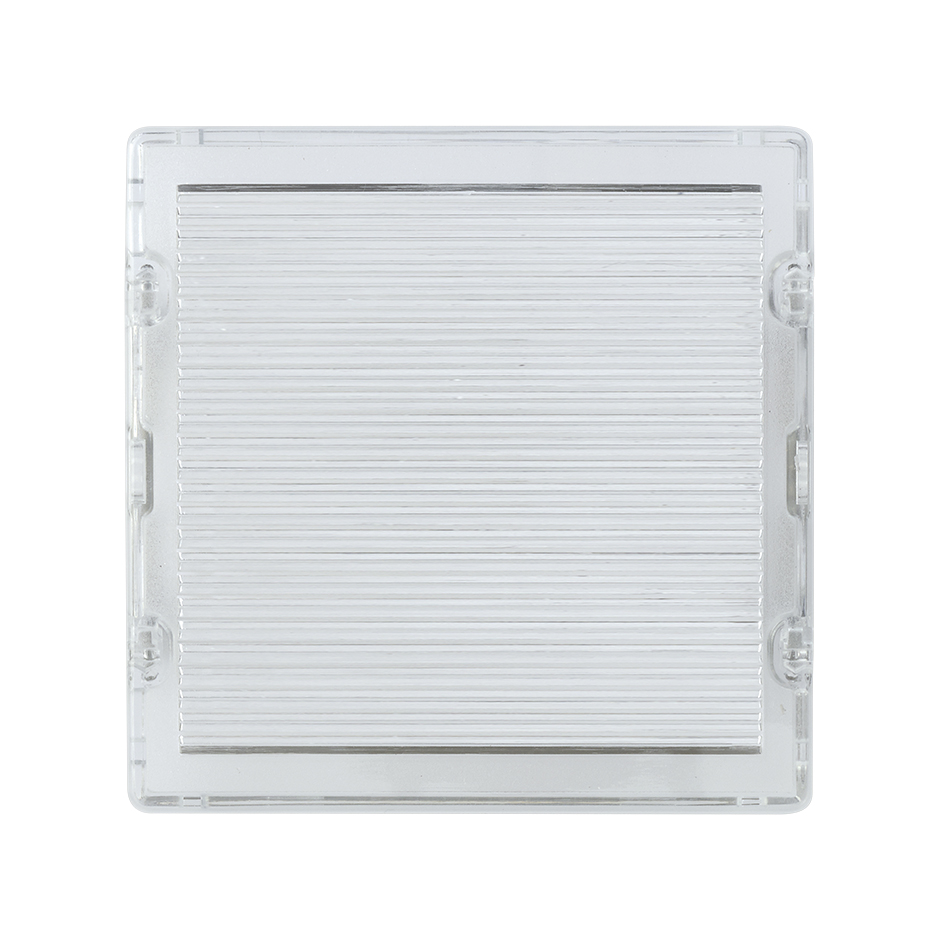

Diffuser cover translucent for signal light Simon 82

Diffuser cover translucent for signal light Simon 82

REFERENCE NO.: 82065-31

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

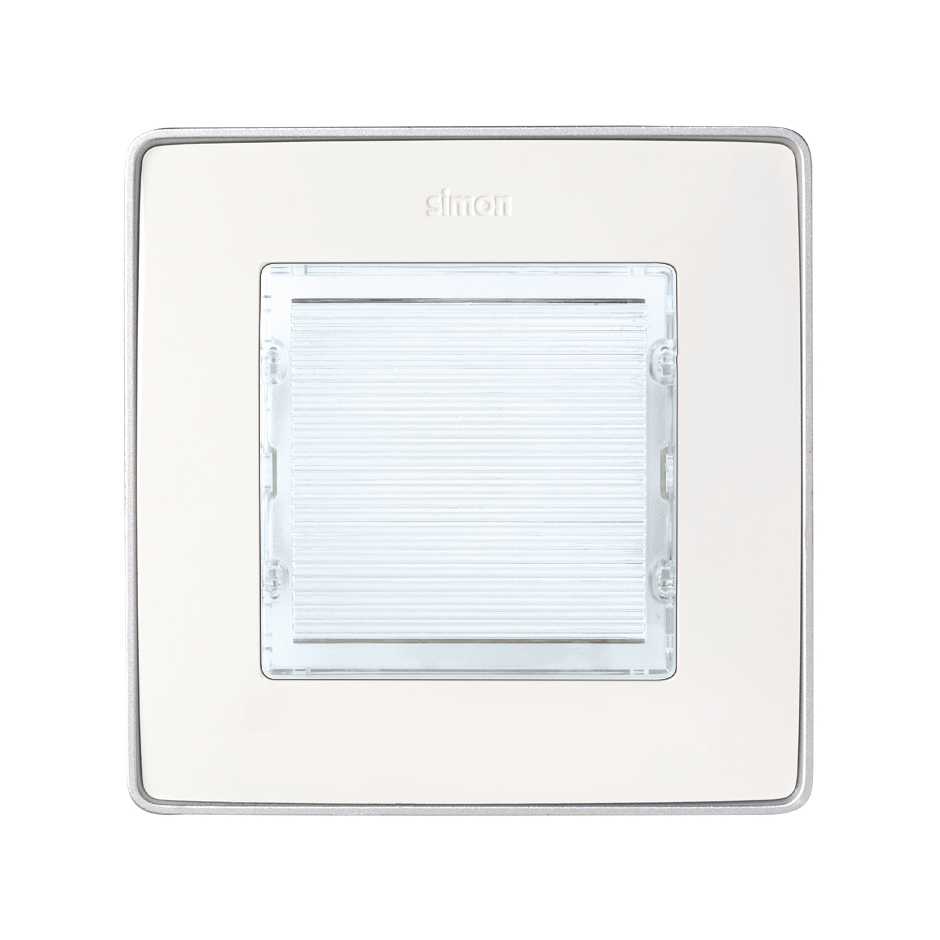

Diffuser cover Simon 82 translucent front view


This image represents the combination of different references

Diffuser cover Simon 82 translucent packaging


SERIES: Simon 82 FINISH: Translucent MATERIAL: Plastic DIMENSIONS: 55x55 mm COMPATIBLE SERIES: Simon 82 Detail Simon 82 Nature Simon 82 Signalling mechanisms

75802-39

75803-39

26809-39

Product description

Translucent diffuser cover for luminous signalling included in the Simon 82 series, it is an article available in 3 finishes that adapt to the needs of users. For a better effect, it is advisable to choose a frame that is the same baseboard colour as the chosen cover. The cover comes in packs of one unit and has dimensions of 55x55 mm, suitable measures to install anywhere. Also, the product is suitable for surface and flush mounting and its installation can be carried out in a few minutes without any difficulty. It is manufactured in thermoplastic, in compliance with the regulation. One of its most outstanding features is its enormous resistance to extreme temperatures, in fact, it can withstand temperatures between -25 and 50º, although the ideal thing is to install it at a temperature of between 5 and 40º.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Translucent

Indicator function: No

Symbol: No

No. of possible elements: 1 element

Compatibility: Simon 26 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Cover

Remarks: Available in 3 finishes. It is recommended to choose a frame with a base the same colour as the selected cover.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: UNE-EN 60669-1:2002 + A1:2003 + A2:2009

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 597780.000

Box volume measurement unit: MMQ

Net weight of box: 0.085

Unit weight of box: KGM

EAN code: 8421053049822

Available in multiple box: No

Available on pallet: No
