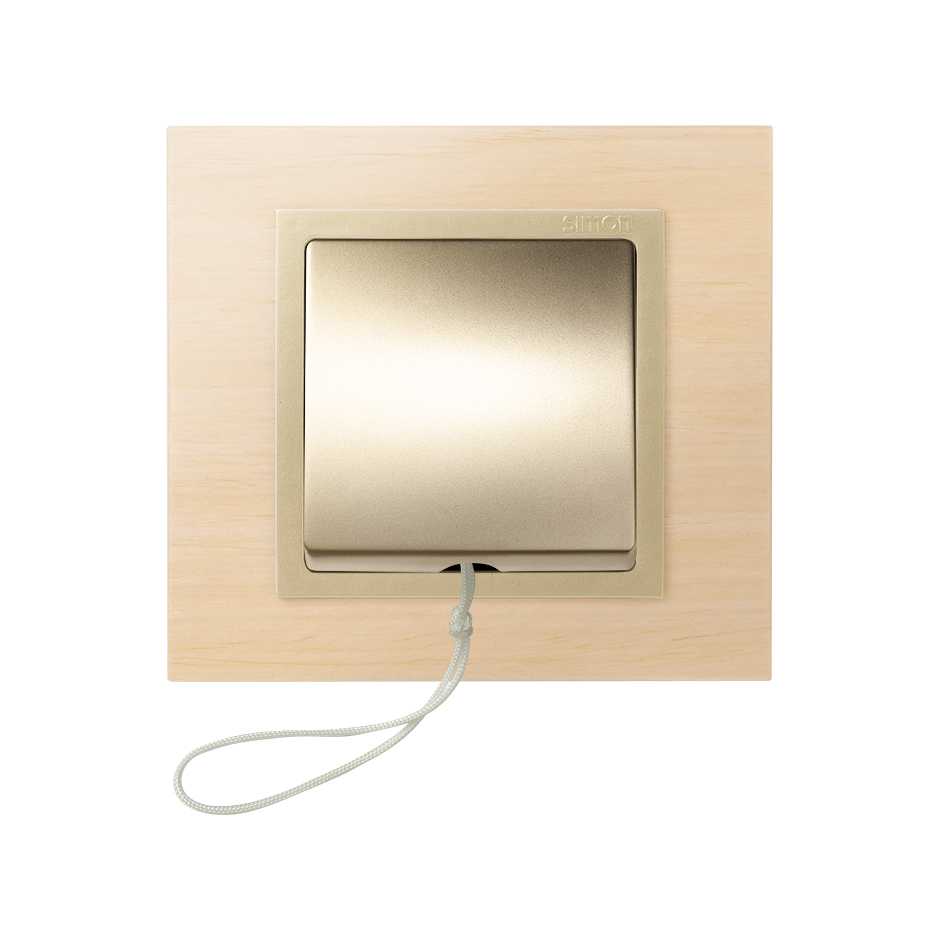

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82051-34

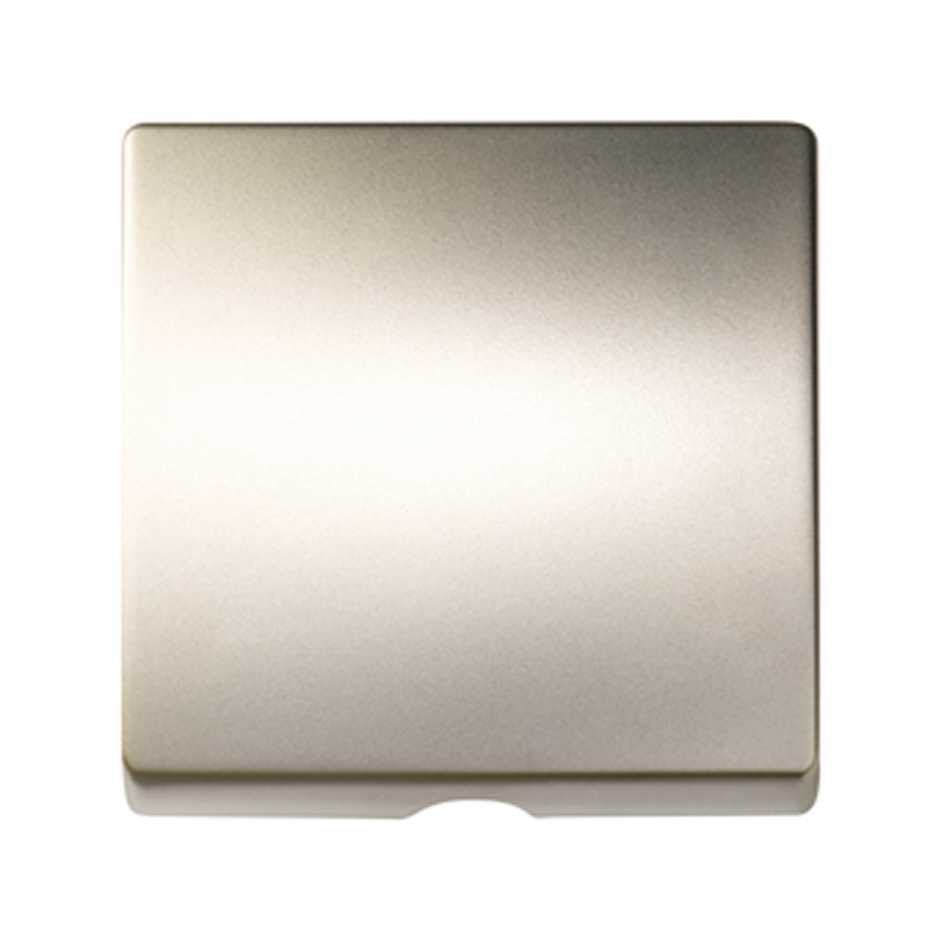

Cover for wire outlet pull mechanisms champagne Simon 82

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
82051-34-en-datasheet.pdf
Product declaration

  1. UES0016.pdf [729KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

<p class=>2-way pull-cord switch 10AX 250V~ front view</p>
Ref
75203-39
2-way pull-cord switch 10AX 250V~ with screw terminal connection system
<p class=>Pull-cord push-button switch 10A 250V~ front view</p>
Ref
75153-39
Pull-cord push-button switch 10A 250V~ with fast terminal connection system
<p class=>Wire outlet mechanism front view</p>
Ref
75801-39
Cable outlet mechanism with 4 double terminals and fastening bracket Simon 75
Product Information
Downloads
Support

Security and functionality are two qualities present in all products included in the Simon 82 range. This is the great difference in comparison with similar products manufactured by competitors that are sold on the market, which cannot be close to the great relationship between quality and price offered by this range.

The Cover for cable outlet puller mechanisms in champagne -mecanisms of the Simon 82 series combines the most innovative design with the simplicity in a single piece that has been made with the best materials of galvanized thermoplastic. With dimensions of 55x55 mm, this cover is available in six different finishes, so it is impossible not to find the colour we need in our electrical systems, in addition, it is a cover that can be mounted on the mechanisms included in the Simon 75,82 and 88 series.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Material

    Plastic

  • Packaging contents

    Cover

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Horizontal, Vertical

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Dir. 2014/35/UE LVD|Dir. 2011/65/UE RoHS + post. mod.|EN IEC 61058-1:2018 |EN 61058-2-1:2011|EN IEC 63000:2018

Logistics Information

  • Product height

    0.00MMT

  • Product width

    0.00MMT

  • Product length

    0.00MMT

  • Product volume

    0.00MMQ

  • Product net weight

    0.03KGM

  • Product gross weight

    0.03KGM

  • Product EAN

    8421053258613

  • Packaging quantity

    10

  • Packaging height

    82.00MMT

  • Packaging width

    165.00MMT

  • Packaging length

    223.00MMT

  • Packaging volume

    3017190.00MMQ

  • Packaging net weight

    0.31KGM

  • Packaging gross weight

    0.31KGM

  • Packaging EAN

    8421053052693
