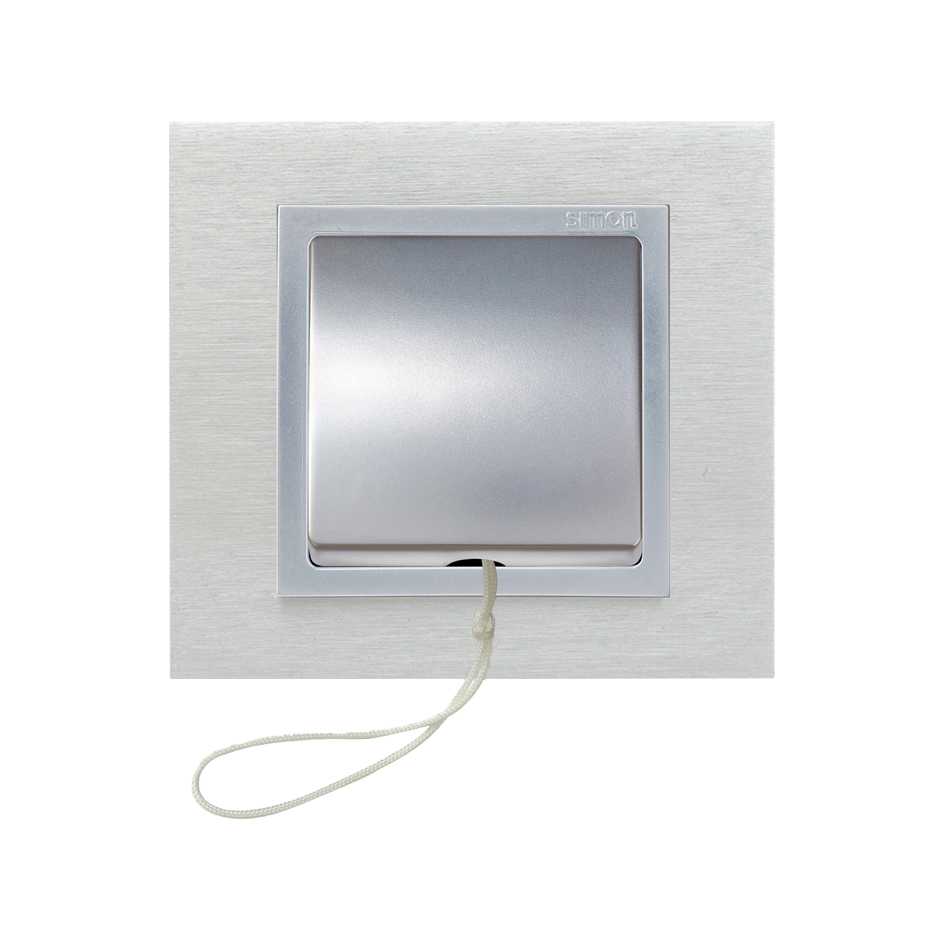

This image represents the combined solution of different references

Ref
82051-33

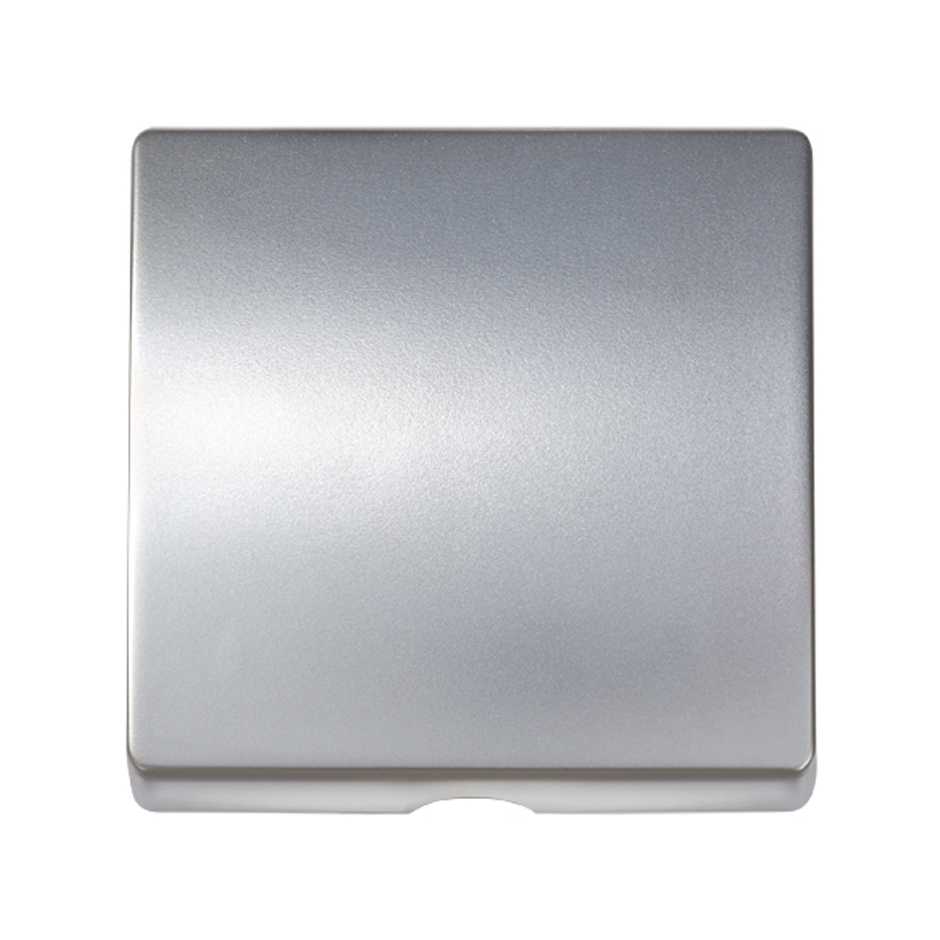

Cover for wire outlet pull mechanisms aluminium Simon 82

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Cover for cable outlet or handle mechanisms in matt aluminium finish of colour of the Simon 82 series, available in different colours such as snow white, ivory, graphite aluminium, ivory champagne or graphite. You can find the element in the category of ""rockers and covers"", the model is compatible to mount on the mechanisms for cable outlet.

The Simon 82 series is characteristic because it is one of the most personalization combinations offered, so you have available six different finishes, of which it is recommended to choose the same colour of the frame with respect to the baseboard of the selected rocker. Its dimensions are 55x55 mm which must be taken into account to install it.

Its installation is very simple, you simply have to choose between two shapes, since the element is suitable for surface mounting or flush mounting. The element is made of metal components with thermoplastic insulation.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Aluminium

  • Material

    Plastic

  • Packaging contents

    Cover

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Horizontal, Vertical

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Dir. 2014/35/UE LVD|Dir. 2011/65/UE RoHS + post. mod.|EN IEC 61058-1:2018 |EN 61058-2-1:2011|EN IEC 63000:2018

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.031KGM

  • Product gross weight

    0.031KGM

  • Product EAN

    8421053258606

  • Packaging quantity

    10

  • Packaging height

    82MMT

  • Packaging width

    165MMT

  • Packaging length

    223MMT

  • Packaging volume

    3017190MMQ

  • Packaging net weight

    0.31KGM

  • Packaging gross weight

    0.305KGM

  • Packaging EAN

    8421053052686
