Ref
82051-31

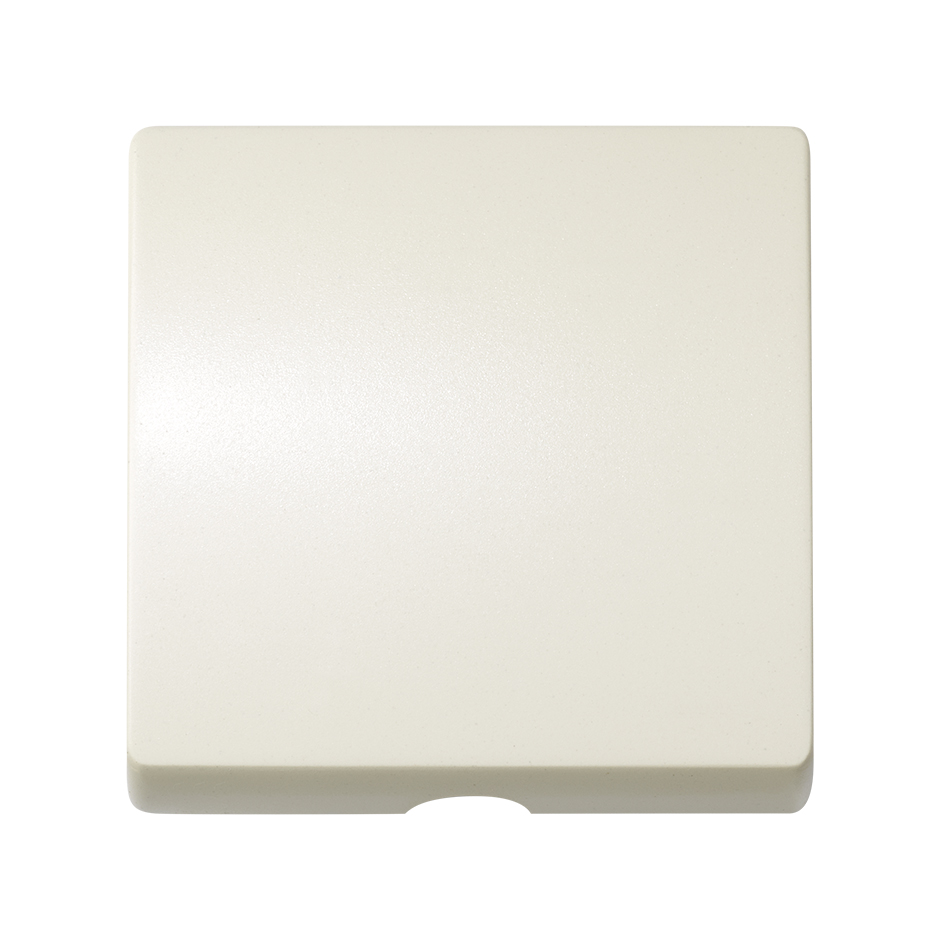

Cover for wire outlet pull mechanisms ivory Simon 82

Price/Unit
€5.98
Packaging quantity
10 Units

Available downloads

Data sheet

82051-31.pdf

Product declaration

  1. UES0016.pdf [616KB]

  2. UES0081.pdf [624KB]

Ask for advice
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

2-way pull-cord switch 10AX 250V~ front view
Ref
75203-39
2-way pull-cord switch 10AX 250V~ with screw terminal connection system
Pull-cord push-button switch 10A 250V~ front view
Ref
75153-39
Pull-cord push-button switch 10A 250V~ with fast terminal connection system
Wire outlet mechanism front view
Ref
75801-39
Wire outlet mechanism with 4 double terminals and clamping flange
Información de Producto
Soporte

Product Information

The cover for cable outlet pull mechanisms ivory pulling mechanisms of the Simon 82 series combines a classic and innovative design. Its functionality is one of the great advantages it has over similar products that we can find in the market, which can not come close to the great relationship between quality and price offered by this piece.

It is a cover that can be mounted on the mechanisms included in the Simon 75,82 and 88. Simplicity in a single piece that has been made with thermoplastic materials, can be either surface-mounted or flsuh-mounted and complies with the legislation UNE-EN 60669-1:2002 + A1:2003 + A2:2009 standard.In addition, this cover in the Simon 82 series, whose dimensions are 55x55 mm, is available in six different finishes, so it is impossible not to find the colour you need for your electrical systems.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Ivory

  • Material

    Plastic

  • Packaging contents

    Cover

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information

  • Product net weight

    0.029 KGM

  • Product gross weight

    0.029 KGM

  • Product EAN

    8421053258590

  • Packaging quantity

    10

  • Packaging height

    82 MMT

  • Packaging width

    165 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    3017190 MMQ

  • Packaging net weight

    0.29 KGM

  • Packaging gross weight

    0.285 KGM

  • Packaging EAN

    8421053049945
