Plate for electronic rotary mechanisms with built-in red light graphite Simon 82

While stocks last

REFERENCE NO.: 82050-38

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

82050-38-placa-mecanismos-electronicos-giratorios-con-luminoso-grafito-simon-82-frontal_5.jpg

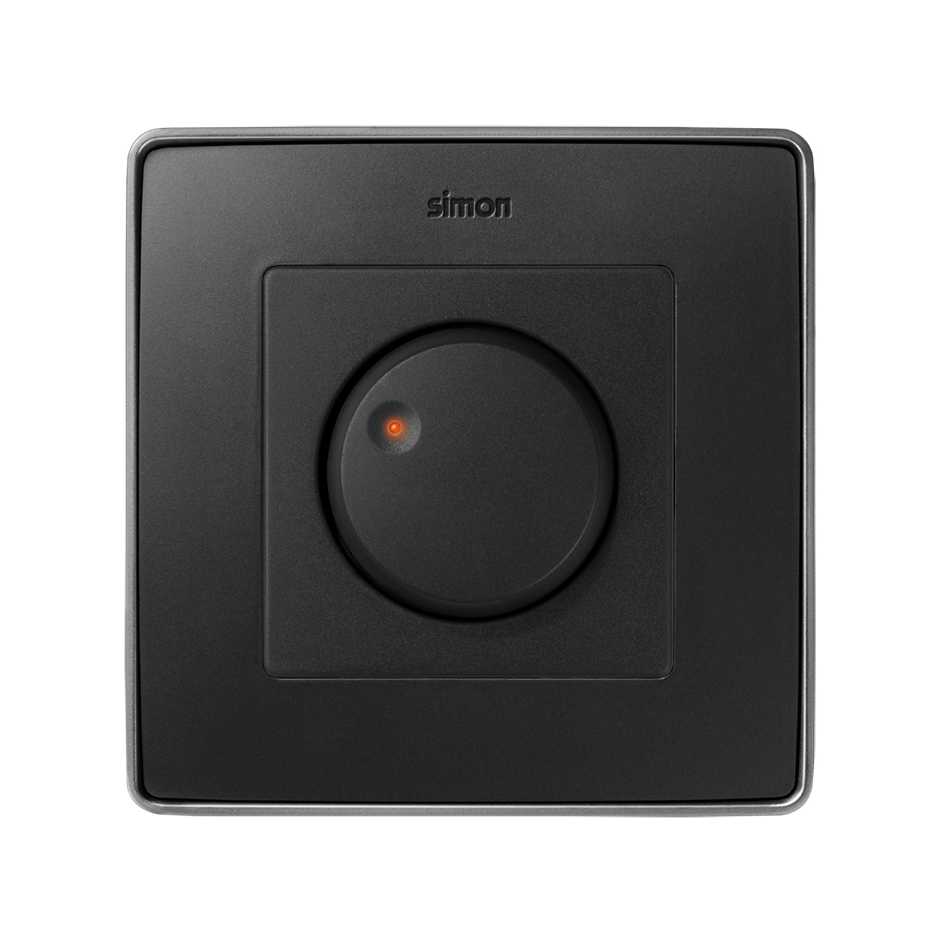

Plate for rotary mechanisms Simon 82 graphite front view


This image represents the combination of different references

Plate for rotary mechanisms Simon 82 graphite packaging

SERIES: Simon 82 FINISH: Graphite MATERIAL: Plastic DIMENSIONS: 55x55 mm Light control and dimmer switches

75318-39

Product description

With dimensions of 55x55 mm and manufactured in thermoplastic, in compliance with the current regulation, this plate for rotating electronic devices with luminous incorporated red graphite colour is included in the Simon 82 series. The product is available in 6 different finishes, when choosing a frame, it is recommended to choose the same colour as the selected plate for a better effect. Also, the plate is suitable for surface and flush mounting, so that its installation is simple and straightforward. It is characterized by a high resistance to extreme temperatures (it can withstand between -25 and 50º), although the ideal is that the ambience temperature ranges between 5 and 40º for an optimal performance. For maintenance and cleaning, it is advisable to use a soft cloth slightly moistened in soapy water, on the other hand, it should be avoided abrasive cloths and / or abrasive cleaners containing chlorine.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Graphite

Indicator function: Yes

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Plate

Remarks: Available in 5 finishes. It is recommended to choose a frame with a base the same colour as the selected plate.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: UNE-EN 60669-1:2002 + A1:2003 + A2:2009

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 597780.000

Box volume measurement unit: MMQ

Net weight of box: 0.115

Unit weight of box: KGM

EAN code: 8421053021873

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No
