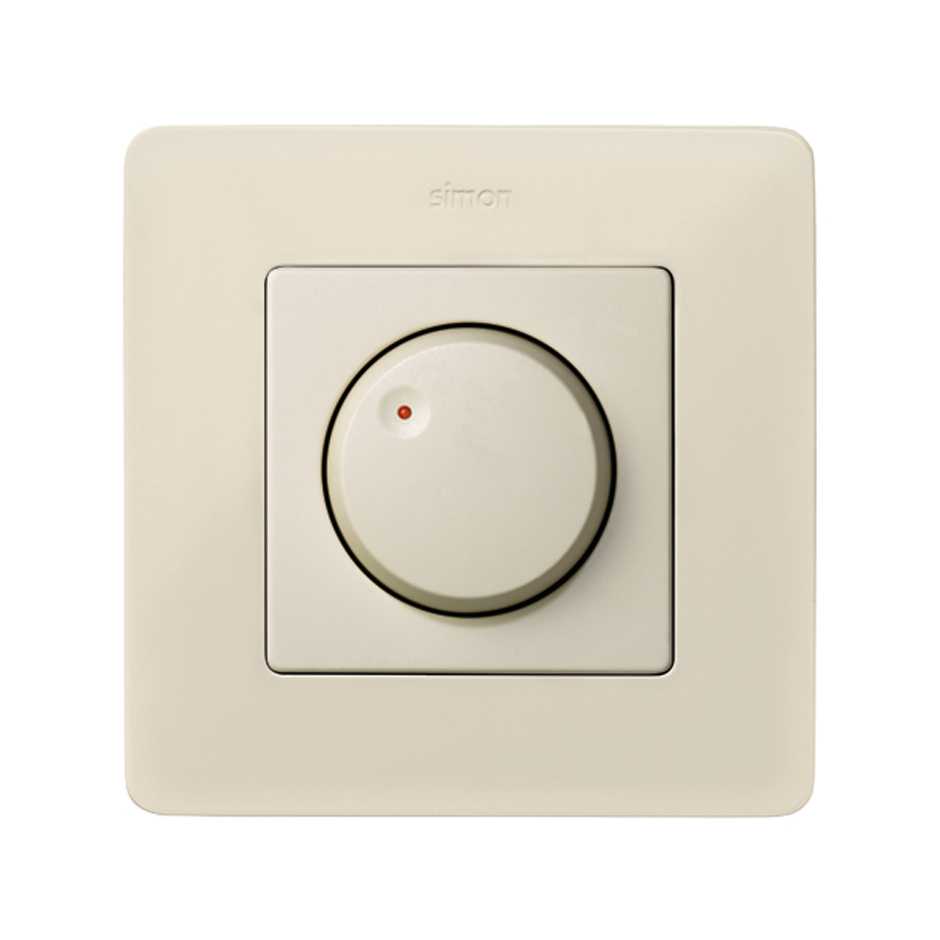

This image represents the combined solution of different references

This image represents the combined solution of different references


This image represents the combined solution of different references

Ref
82050-31

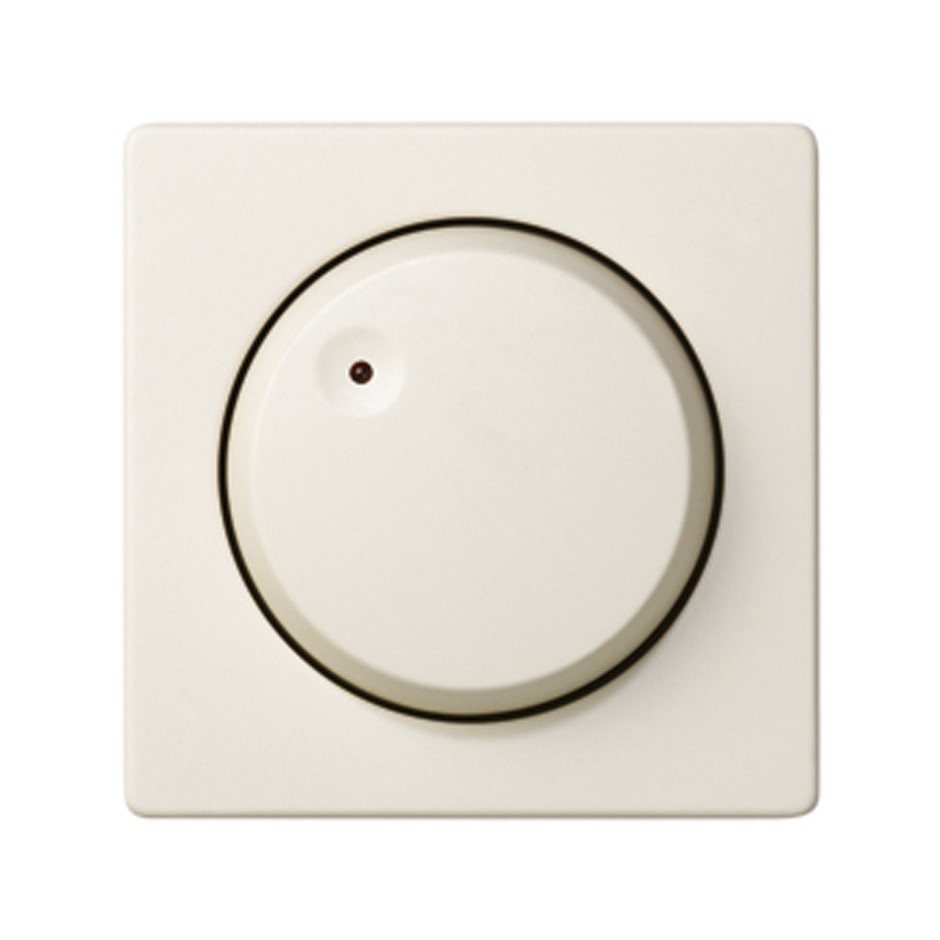

Plate for electronic rotary mechanisms with built-in red light ivory Simon 82

Price/Unit
€7.14
Packaging quantity
5 Units

Available downloads

Data sheet

82050-31.pdf

Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

Plate of the Simon 82 series, finished in red colour (even if it is available in 5 finishes and is always recommended to use the frame in the same baseboard colour as the selected plate), that is used for the electronic rotating mechanisms and, in addition, with built-in indicator light.

This plate is perfect to be installed both recessed and surface-mounted, in places with a temperature of between 5 and 40ºC, approximately, although it is true that is able to withstand extreme temperatures of -25 to 50ºC, so that it is a perfect plate for any type of climatology.

It measures 55 x 55 mm and complies with the regulation European UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009.

In addition, it is made of thermoplastic, a material that is very easy to clean and maintain, because only vas to have to clean it with a soft and dry cloth, forgetting to use any cloth or abrasive cleaner containing chlorine.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 5 finishes. It is recommended to choose a frame with a base the same colour as the selected plate.

  • Finish

    Ivory

  • Symbol

    Without engravings

  • Material

    Plastic

  • Packaging contents

    Plate

Technical Information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    1522469 MMQ

  • Product net weight

    0.023 KGM

  • Product gross weight

    0.023 KGM

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    597780 MMQ

  • Packaging net weight

    0.115 KGM

  • Packaging gross weight

    0.115 KGM

  • Packaging EAN

    8421053021842
