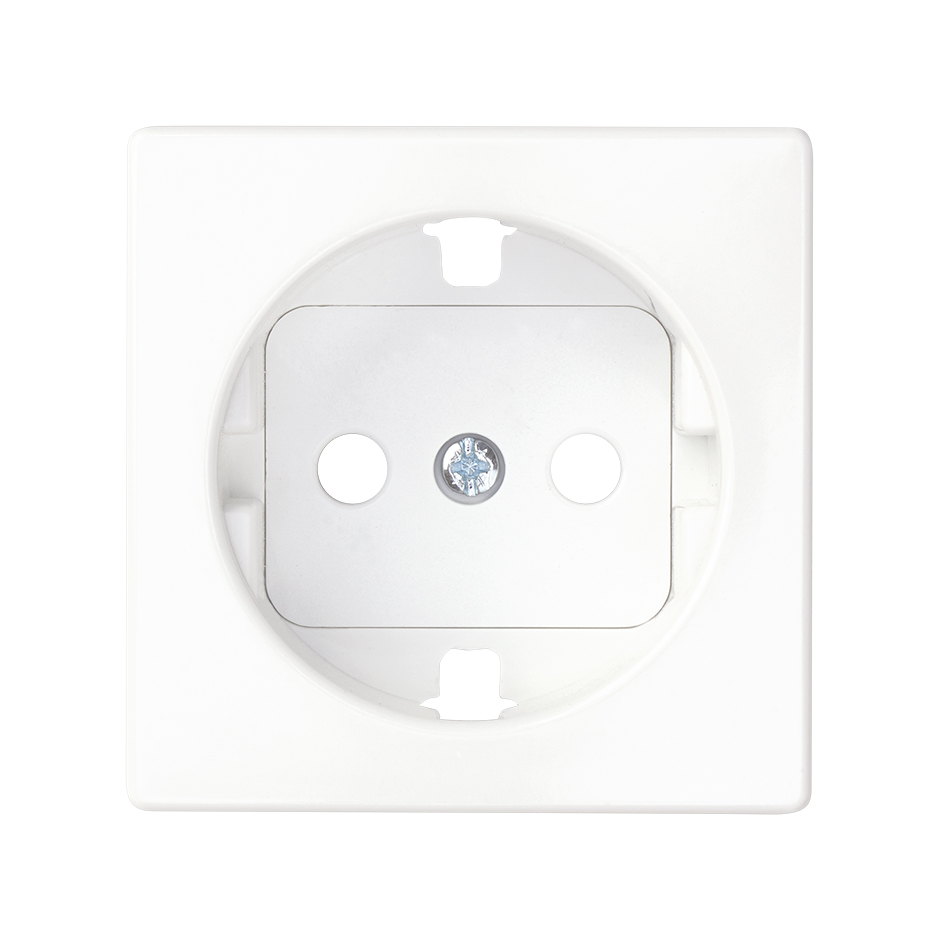

Cover with safety device for German socket outlet white Simon 82
REFERENCE NO.:
82041-30
R.P.:
Price on request
PACKAGING:
10Units
BASIC INFORMATION
Series:
Simon 82
Version:
Single
Finish:
White
Format:
Bipolar
Indicator function:
No
Symbol:
No
No. of possible elements:
1 element
Compatibility:
Simon 75 mechanisms
Installation direction:
Vertical and horizontal
Packaging contents:
Cover
Remarks:
Available in 8 finishes. It is recommended to choose a frame with a base the same colour as the selected cover.
TECHNICAL INFORMATION
Dimensions:
55x55 mm
IP rating:
21
RAL:
Does not have
Manufacturing material:
Thermostable
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
Directive 2011/65/UE RoHS + EN 50581:2012 + IEC 60884-1 Ed 3.2
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface and flush mounting
Operating temperature range:
5 to 40 ºC
Storage temperature range:
-25 to 50 ºC
Maintenance:
Use a soft cloth slightly dampened with soapy water.
Do not use abrasive cloths or cleaning products that contain chlorine.
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
10
Box measurement unit:
MM
Height:
83.000
Wide:
165.000
Depth:
221.000
Box volume:
3026595.000
Box volume measurement unit:
MMQ
Net weight of box:
0.250
Unit weight of box:
KGM
EAN code:
8421053052631
Available in multiple box:
Yes
Multiple box packaging quantity:
50
Multiple box measurement unit:
MM
Multiple box packaging quantity measurement unit:
ZCM
Height of multiple box:
223.000
Width of multiple box:
172.000
Depth of multiple box:
430.000
Multiple box volume:
16493080.000
Multiple box volume measurement unit:
MMQ
Net weight of multiple box:
1.250
Unit weight of multiple box:
KGM
Multiple box EAN code:
8421053055229
Available on pallet:
Yes
GALLERY
PRODUCT DECLARATIONS
MODULAR SOLUTION

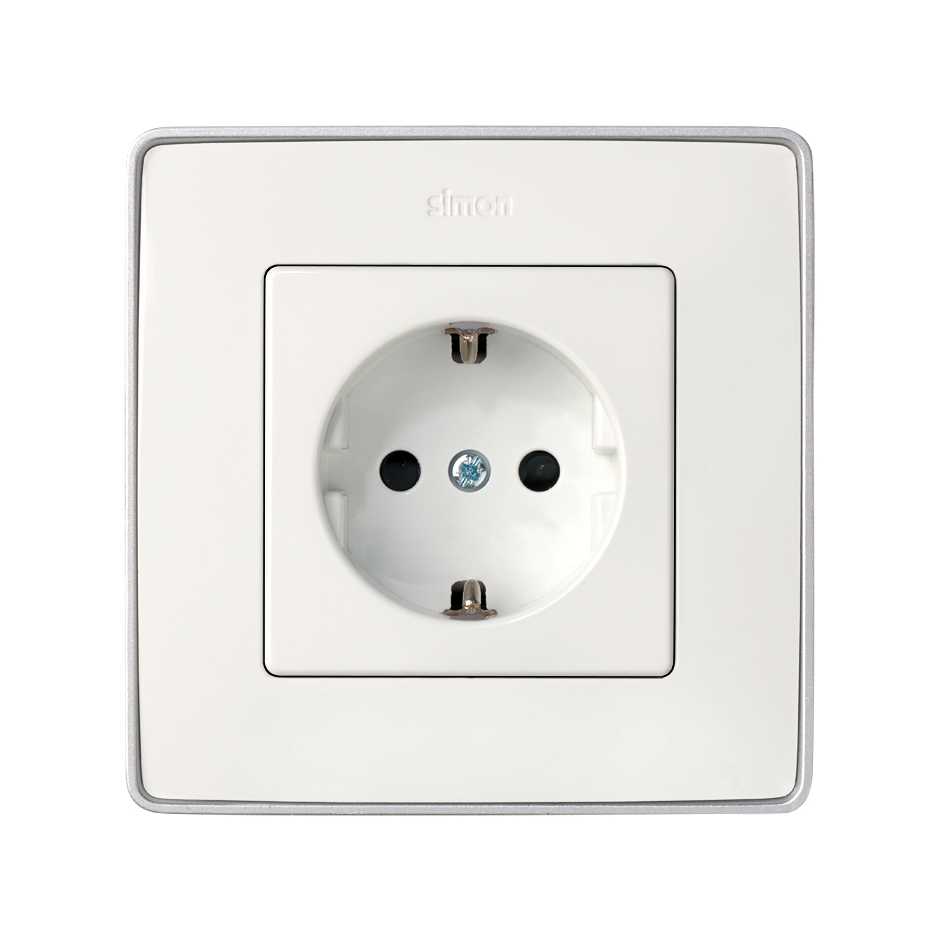

Schuko socket outlet with cover and frame Simon 82 Detail Select white aluminium base
