Ref
82034-38

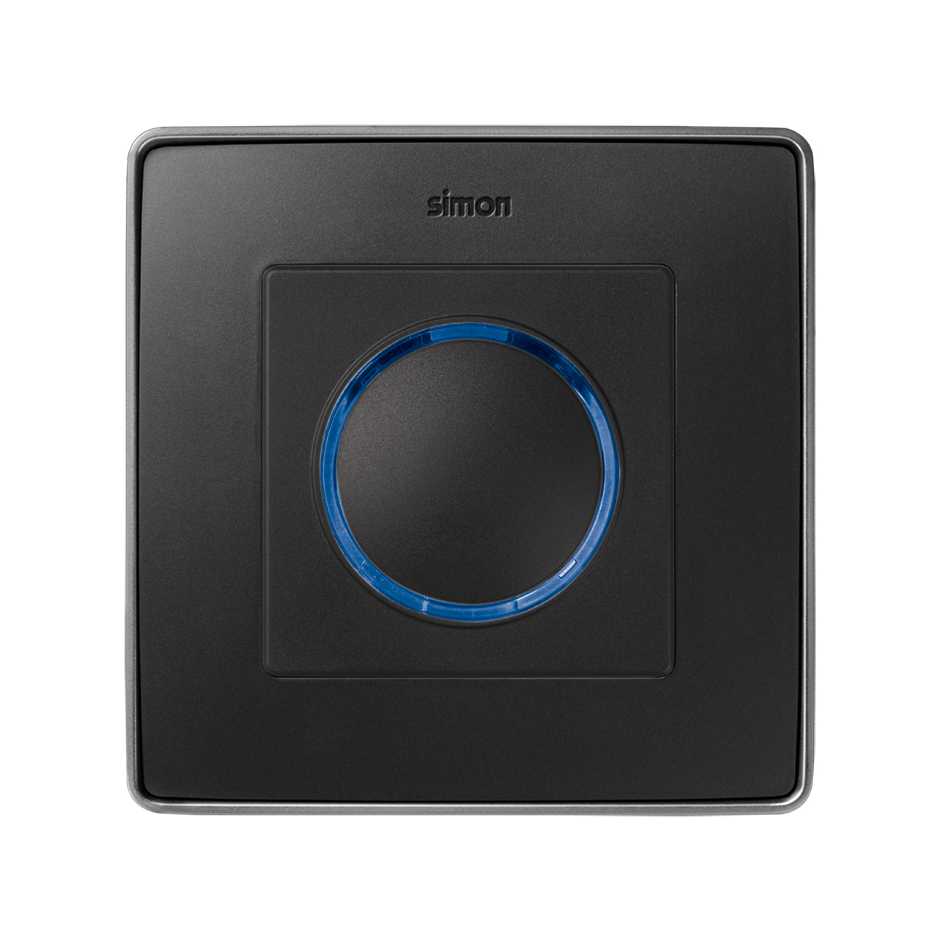

Plate for electronic touch mechanisms with blue light graphite Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Plate for rotary electronic mechanisms with incorporated luminous, in graphite colour blue (even if it is available in 5 different finishes and it is always recommended to use the frame in the same baseboard colour as the selected plate), belonging to the Simon 82 series.

It measures 55 x 55 mm and complies with the regulation European UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009 and is manufactured in thermoplastic, a material very easy to maintain and clean. Will only have to use, for cleaning, a soft cloth slightly moistened in soapy water, forgetting, at all times, the use of cloths and / or abrasive cleaners containing chlorine.

This is a plate suitable for installation in surface-mounted and recessed way, always in rooms with a temperature of between 5 and 40ºC, more or less, although it is able to withstand extreme temperatures of -25 to 50ºC, approximately, making it ideal for all types of climates.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Graphite

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-1:2004 + EN 60669-2-1:2004 A1:2009 + EN 60669-2-1:2004 A12:2010

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.15KGM

  • Product gross weight

    0.15KGM

  • Product EAN

    8421053258149

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    597780MMQ

  • Packaging net weight

    0.75KGM

  • Packaging gross weight

    0.75KGM

  • Packaging EAN

    8421053012932
