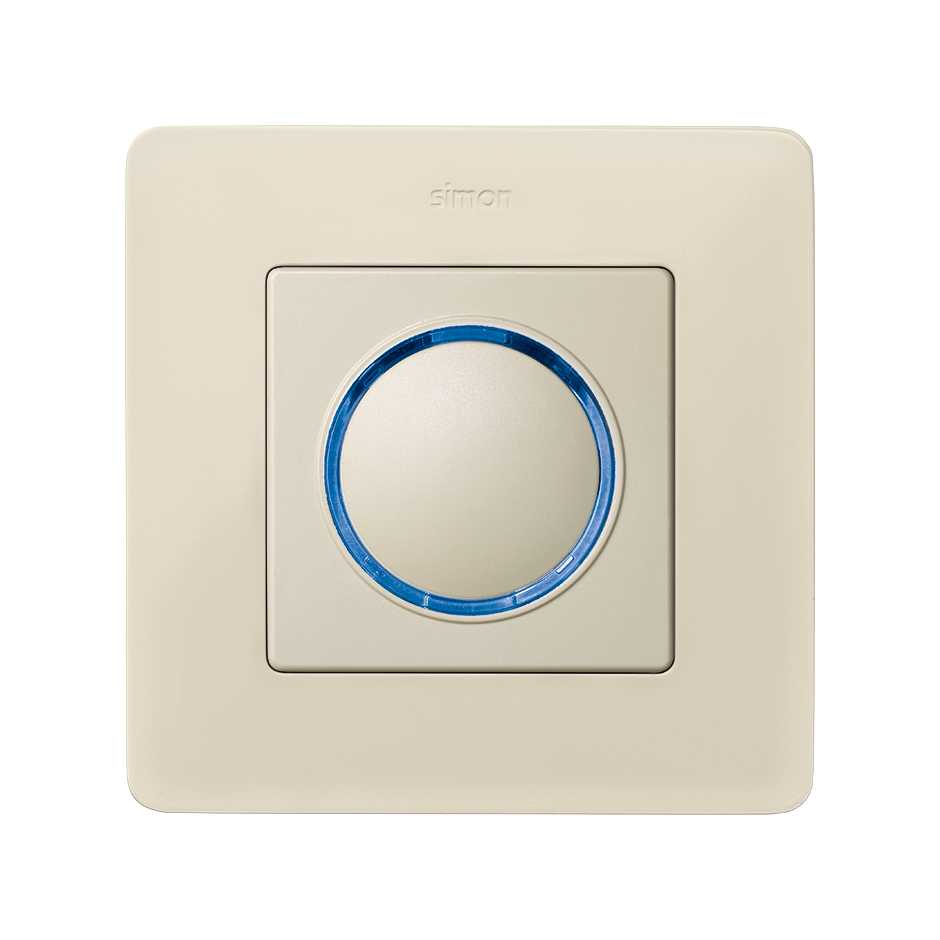

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82034-31

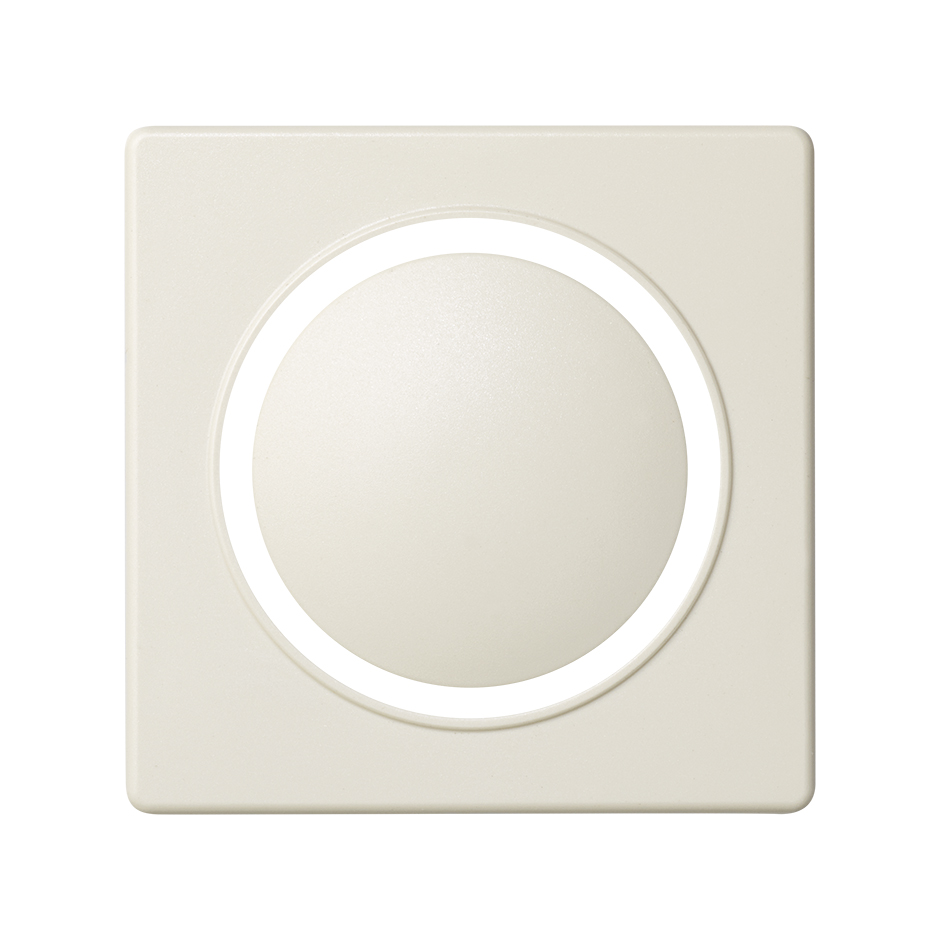

Plate for electronic touch mechanisms with blue light ivory Simon 82

Price/Unit
€7.24
Packaging quantity
5 Units

Available downloads

Data sheet

82034-31.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

Available in white, ivory, matt aluminium, champagne matt, graphite and cold aluminium, which allows you to choose the frame with the same baseboard colour as the rocker selected, an advantage that increases the decorative possibilities of any space in homes or companies, we have the Plate for the electronic mechanisms of ivory touch included in the Simon 82 series, why is it one of the most demanded products to install in electrical systems nowadays? Maybe because it incorporates luminous blue. Or because of its dimensions of 55x55 mm or by the thermoplastic materials with which it has been manufactured. Or for easy cleaning with a soft, damp cloth. Or because it is available in six different finishes, or because it is suitable for surface and flush mounting. All this with a quality-price ratio that is unmatched in the offer currently on the market for electrical installations.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Ivory

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-1:2004 + EN 60669-2-1:2004 A1:2009 + EN 60669-2-1:2004 A12:2010

Logistics Information
  • Product net weight

    0.015 KGM

  • Product gross weight

    0.015 KGM

  • Product EAN

    8421053258118

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    597780 MMQ

  • Packaging net weight

    0.075 KGM

  • Packaging gross weight

    0.075 KGM

  • Packaging EAN

    8421053012765
