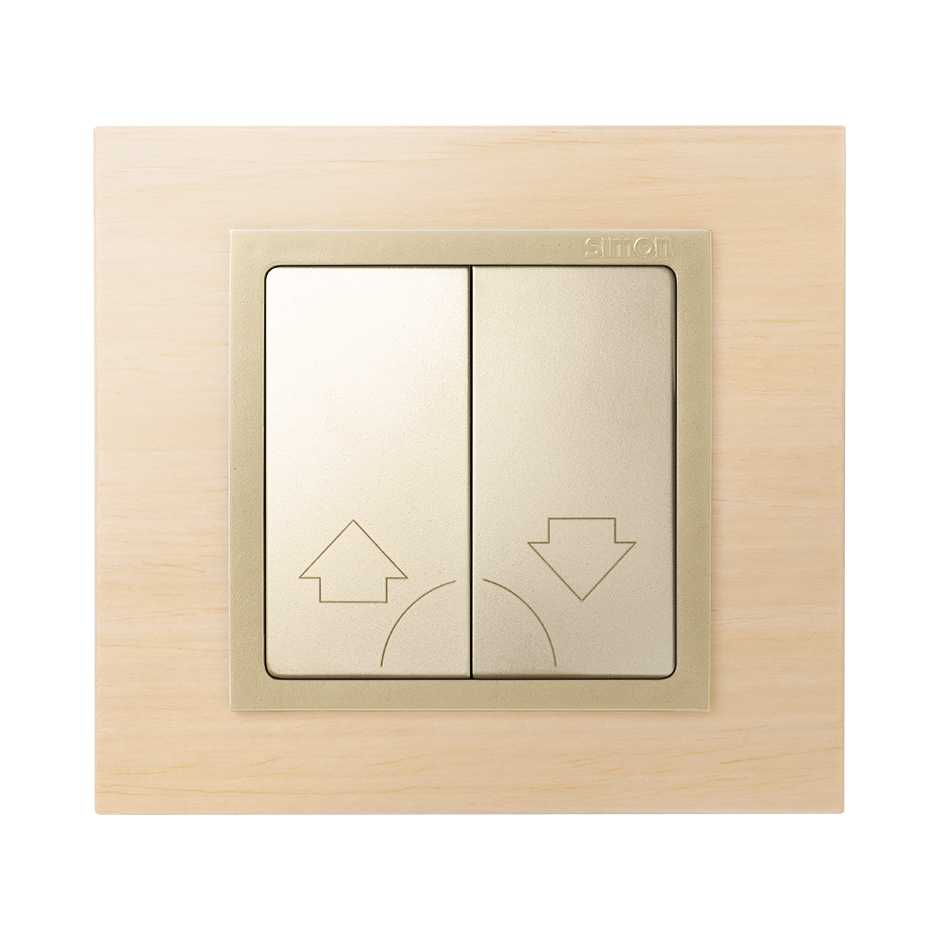

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82029-34

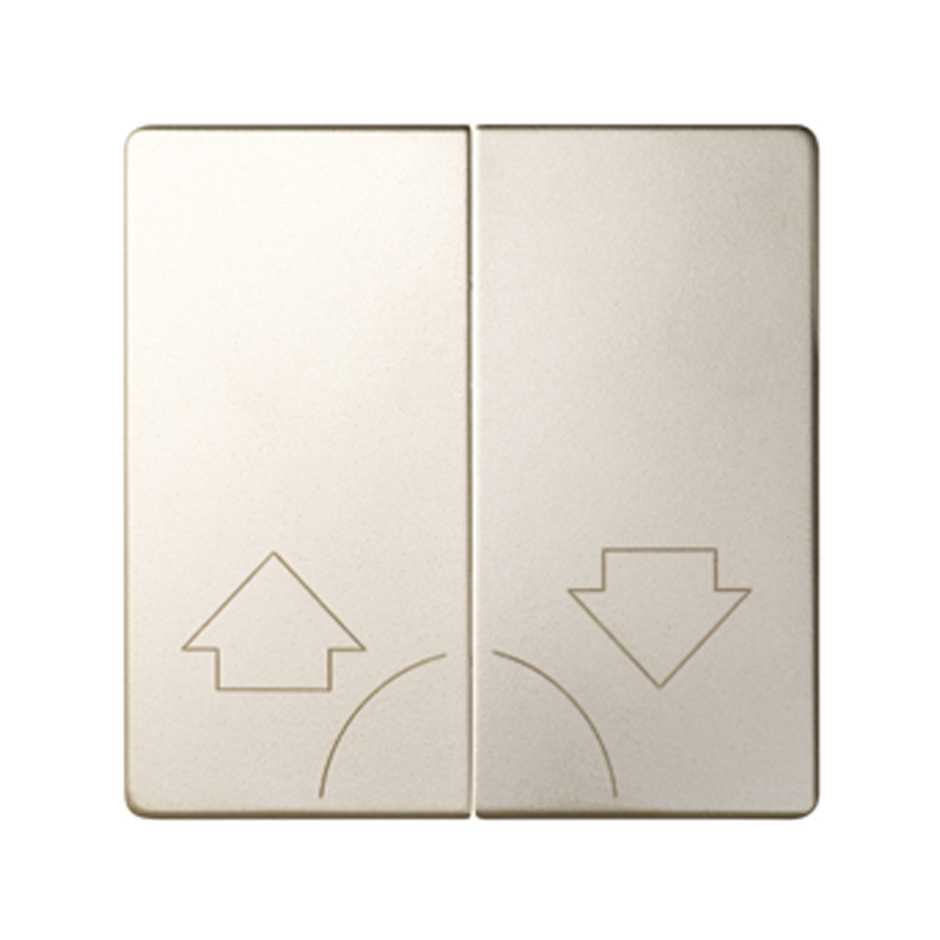

Double rocker for blinds mechanism without security latching champagne Simon 82

Price/Unit
€8.91
Packaging quantity
5 Units

Available downloads

Data sheet

82029-34.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Product Information

Double rocker for blind mechanism without latching of security in champagne colour belonging to the Simon 82 series, since there are 6 different finishes to choose from, it is recommended to choose a frame that is the same baseboard colour as the rocker selected. In this way, a better result will be obtained. The piece measures 55x55 mm and is made of galvanized thermoplastic, in compliance with the current regulation. It comes in individual packs and is suitable for surface and flush mounting. There is a technical information manual that can be consulted in case of doubt about its installation. The rocker, it also has an engraving of the up, down and down blinds that facilitates its operation. Its maintenance does not require very specific care. Simply clean the rocker with a soft, dry cloth and avoid using cleaning products that are abrasive and contain chlorine, as it could be damaged.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Symbol

    Blinds Up-Down-Stop

  • Material

    Plastic

  • Packaging contents

    Double rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Double

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.02 KGM

  • Product gross weight

    0.02 KGM

  • Product EAN

    8421053257760

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    597780 MMQ

  • Packaging net weight

    0.1 KGM

  • Packaging gross weight

    0.1 KGM

  • Packaging EAN

    8421053052501
