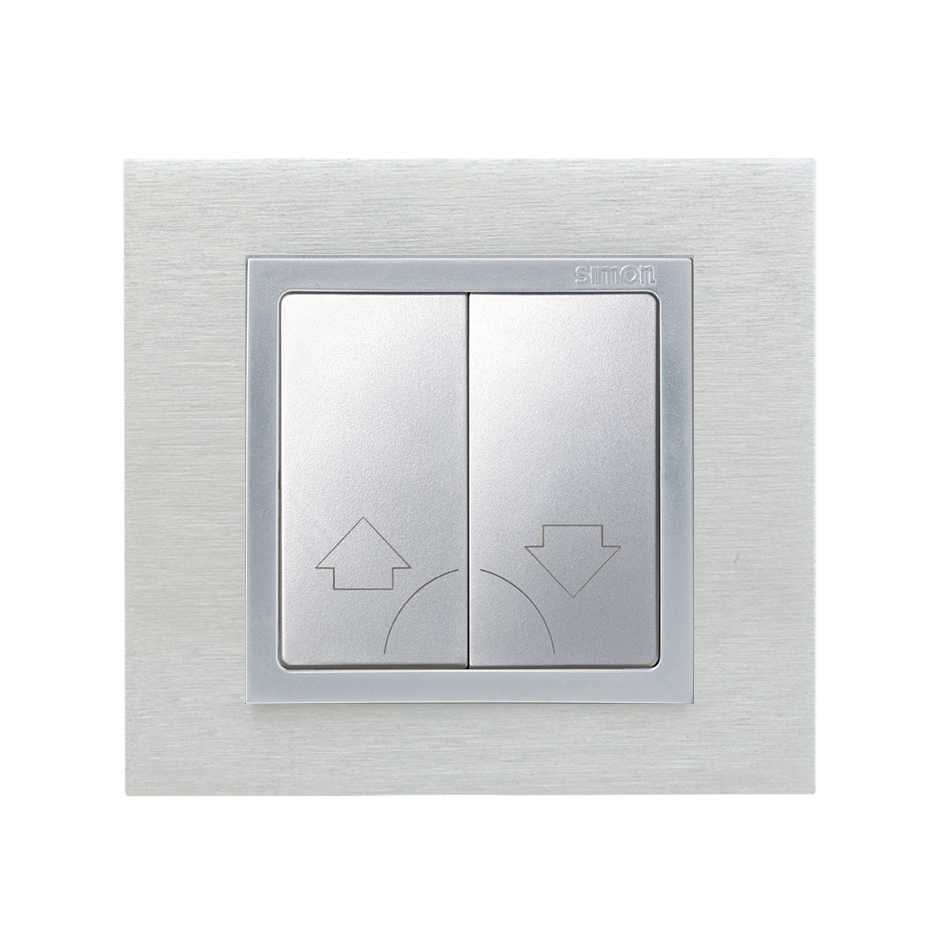

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82029-33

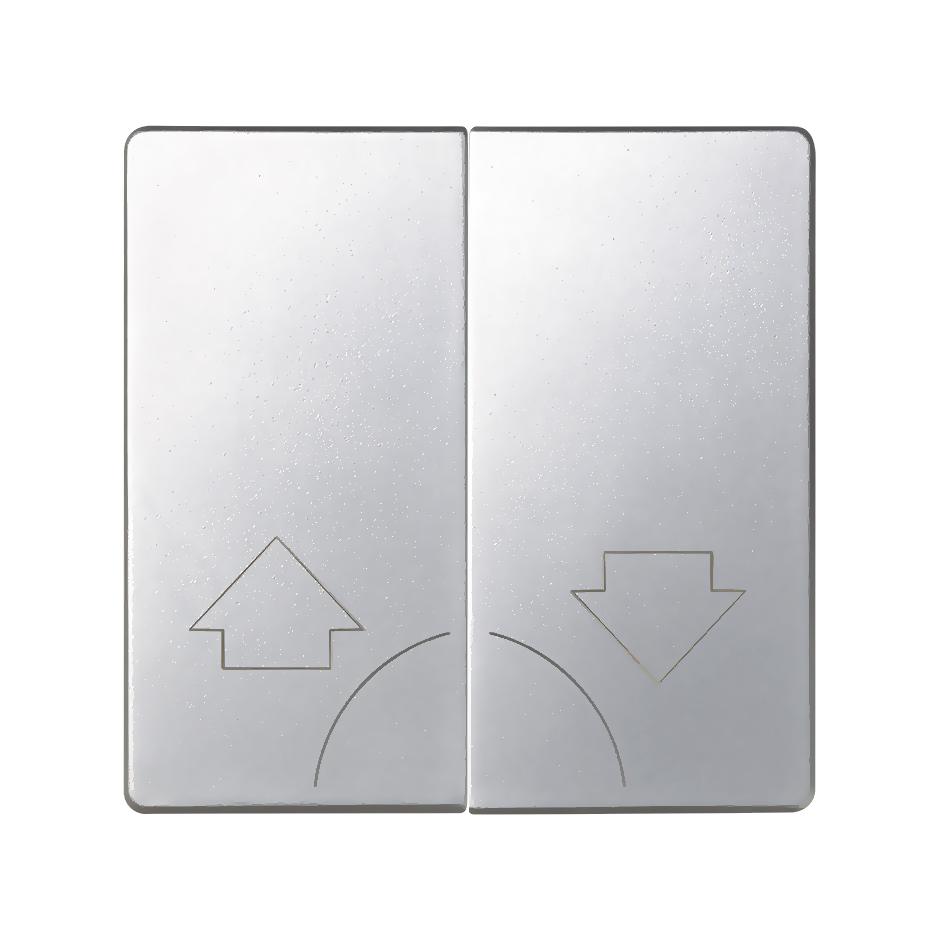

Double rocker for blinds mechanism without security latching aluminium Simon 82

Price/Unit
€9.23
Packaging quantity
5 Units

Available downloads

Data sheet

82029-33.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Product Information

Double rocker in aluminium colour of the Simon 82 series for the mechanism of blinds without latching of security.

It is a rocker perfect to be installed both recessed and surface-mounted, located in rooms with a temperature between 5 and 40ºC, approximately, although it can withstand extreme temperatures (-25 to 50ºC, more or less).

It is manufactured according to the regulation European UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009 in thermoplastic, a material that is very easy to clean: Just you have to go one step, dry cloth without having to use abrasive cloths or cleaners containing chlorine, as they could cause the rocker is estropeara and not come to operate correctly.

It measures 55 x 55 mm and it is a rocker that is available in 6 finishes, we recommend always choosing the frame in the same baseboard colour as the rocker selected.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Aluminium

  • Symbol

    Blinds Up-Down-Stop

  • Material

    Plastic

  • Packaging contents

    Double rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Double

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.02 KGM

  • Product gross weight

    0.02 KGM

  • Product EAN

    8421053257753

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    597780 MMQ

  • Packaging net weight

    0.1 KGM

  • Packaging gross weight

    0.1 KGM

  • Packaging EAN

    8421053052495
