Double rocker for blinds mechanism with security latching graphite Simon 82

REFERENCE NO.: 82028-38

R.P.: Price on request

PACKAGING: 20 Units

Variables de unidades de obras ---> -false-false

82028-38-tecla-doble-con-grabado-persianas-con-enclavamiento-grafito-simon-82-frontal_5.jpg

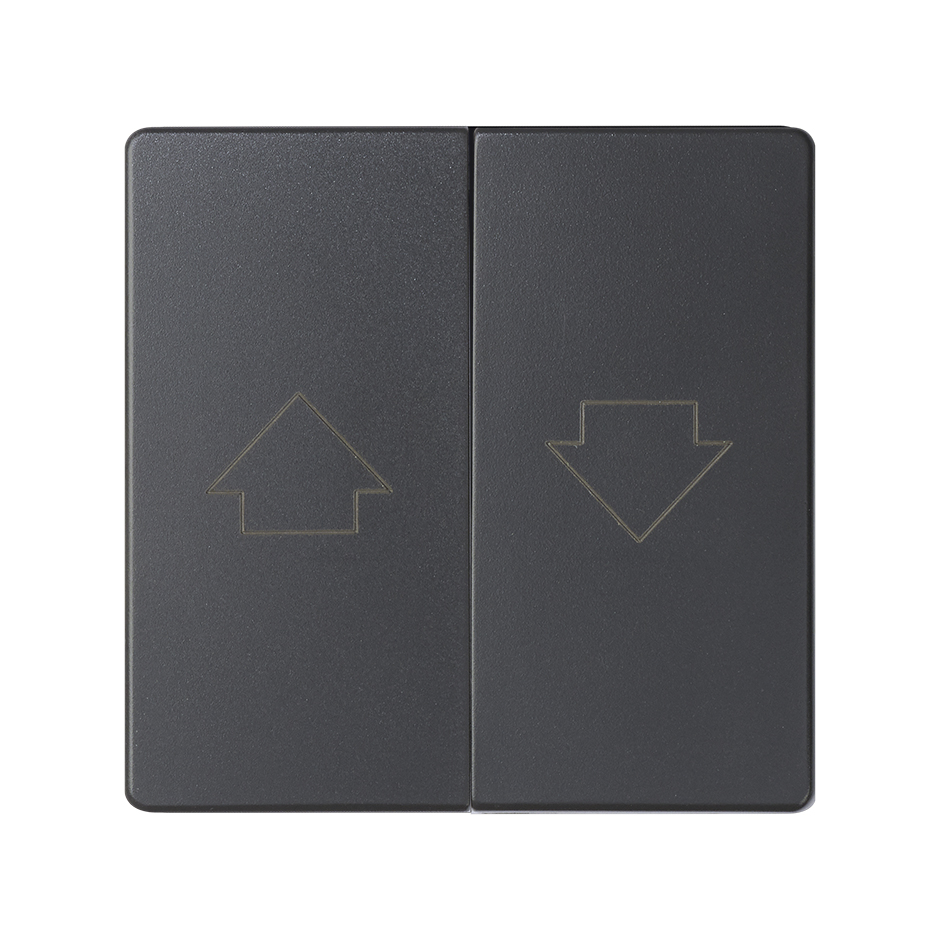

Double rocker with blinds up/down symbol Simon 82 graphite front view


This image represents the combination of different references

Double rocker with blinds up/down symbol Simon 82 graphite packaging

SERIES: Simon 82 FINISH: Graphite MATERIAL: Plastic DIMENSIONS: 55x55 mm Blind control switches

75331-39

Product description

It is equipped with the installation of the double rocker for blind mechanism with latching of security with a graphite finish, the manufacturing material used for this element has a maximum quality because it is made of thermoplastic, which has an average temperature range between 5 and 40ºC and the maximum temperature ranges between -25 and 50ºC. The security that has with the elements of the Simon 82 series is reliable since it complies with the following regulation UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009. The Simon 82 series is compatible with the Simon 77 series so you can combine different designs and get your own style with elegance, balance and simplicity. We can also highlight the avant-garde finishes organized in four families which are noble metal, wood, metal, colour and colour. You can install the double rocker easily, taking into account its dimensions of 55x55 mm and is ideal for surface-mounted and to be recessed where you want.

BASIC INFORMATION

Series: Simon 82

Version: Double

Finish: Graphite

Indicator function: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Double rocker and fastening bracket

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: UNE-EN 60669-1:2002 + A1:2003 + A2:2009

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 20

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3017190.000

Box volume measurement unit: MMQ

Net weight of box: 0.440

Unit weight of box: KGM

EAN code: 8421053049686

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No

aplicacion-marco-simon-82-detail-grafito-amarillo-fluor-con-tecla-grafito-en-dormitorio_3.jpg

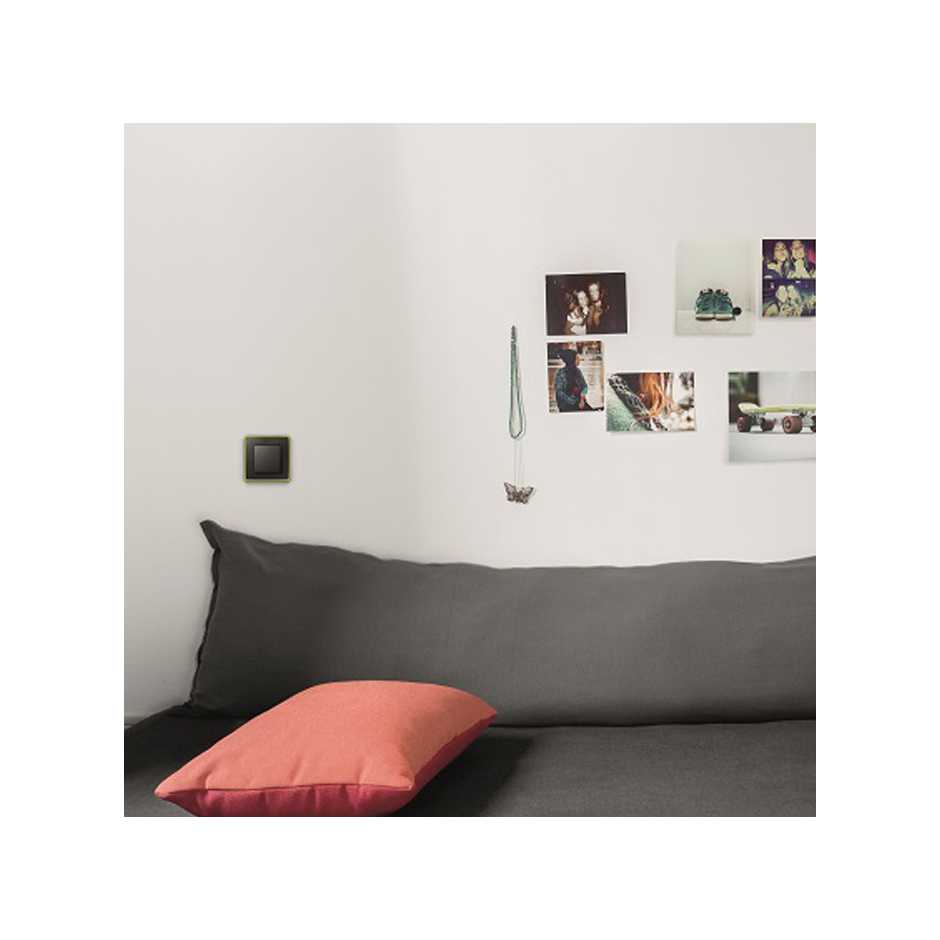

Rocker graphite application in bedroom


Rocker graphite application in corridor

82028-38-tecla-doble-con-grabado-persianas-con-enclavamiento-grafito-simon-82-frontal_6.jpg

Double rocker with blinds up/down symbol Simon 82 graphite front view


This image represents the combination of different references

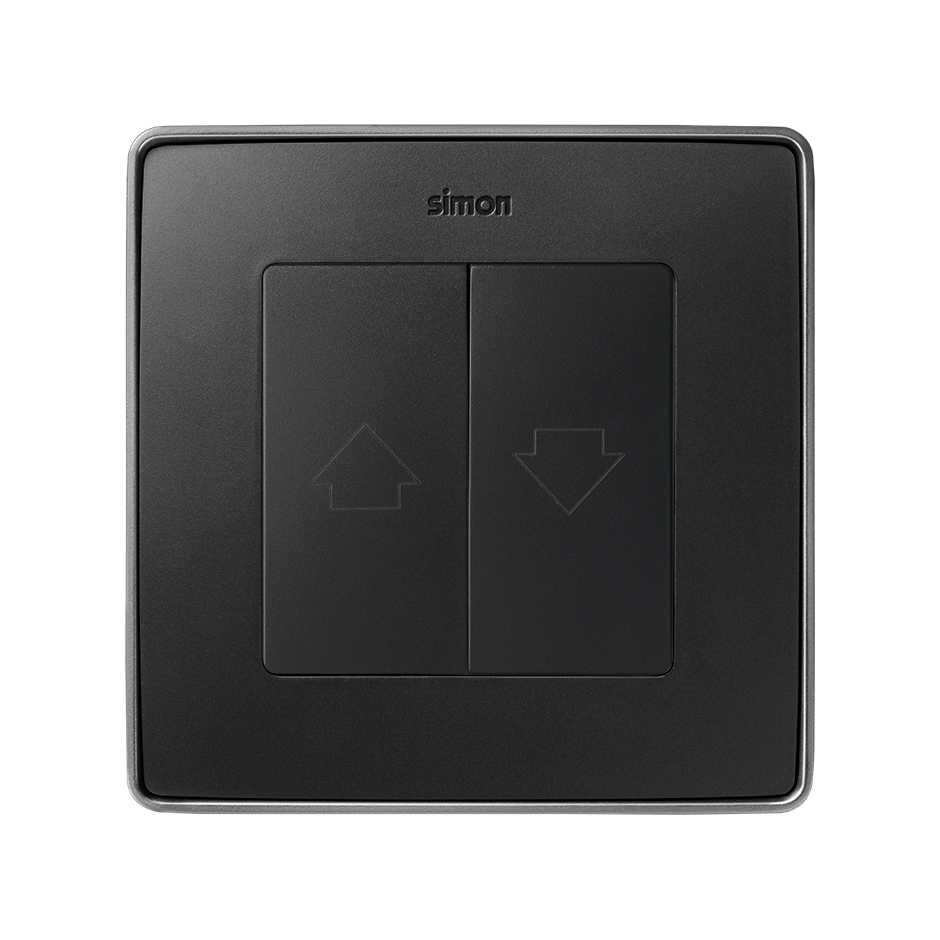

Blind push button with rocker and frame Simon 82 Detail Select graphite aluminium base R.P.: Price on request
