Double rocker for switches cold aluminium Simon 82 Detail

Double rocker for switches cold aluminium Simon 82 Detail

REFERENCE NO.: 82026-93

R.P.: Price on request

PACKAGING: 20Units

Variables de unidades de obras ---> -false-false

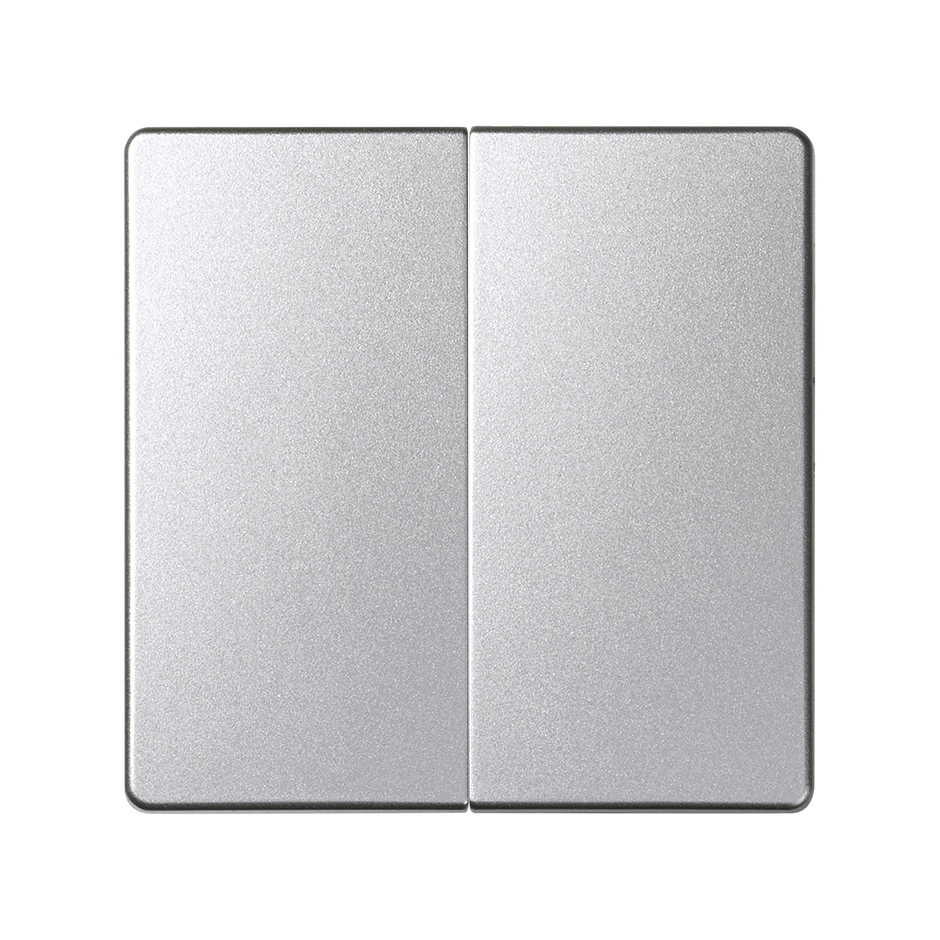

Double rocker Simon 82 cold aluminium front view

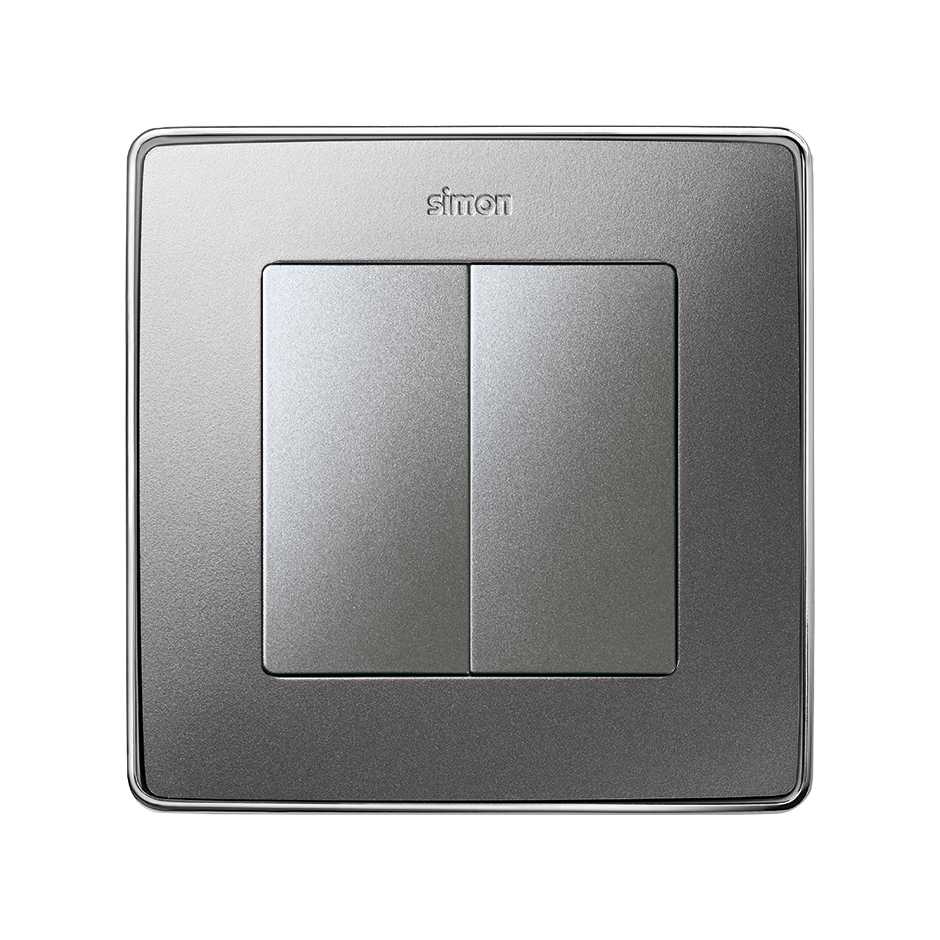

This image represents the combination of different references

Double rocker Simon 82 cold aluminium packaging


SERIES: Simon 82 Detail FINISH: Cold aluminium MATERIAL: Plastic DIMENSIONS: 55x55 mm COMPATIBLE SERIES: Simon 82 Concept Simon 82 Detail Switches

75395-39

75396-39

75397-39

75398-39

75399-39

Product description

Balance and simplicity are two adjectives with which it would be possible to describe the double Rocker for control mechanisms in cold aluminium of the series Simon 82 Detail. We are looking at a piece in a double version available in six different finishes, characteristic that highlights its qualities even more. It is a rocker suitable for surface or flush mounting that complies with the UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009. Its size (55x55 mm) is ideal for all standard brackets and is also compatible with all mechanisms of the Simon 75 series, which increases its functionality in different spaces. It is also perfect for mounting on double switch and double mechanisms 2-way switch, with an unbeatable price for the other rockers that can be found on the market. Its ease to be cleaned is another plus with this piece made of thermoplastic materials.

BASIC INFORMATION

Series: Simon 82 Detail

Version: Double

Finish: Cold aluminium

Indicator function: No

Symbol: No

No. of possible elements: 1 item

Compatibility: Simon 75 and Simon 77 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Double rocker and fastening bracket

Remarks: Available in 6 finishes. It is recommended to choose a frame with the same base colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 21

RAL: Does not have

Manufacturing material: Metallised thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 20

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3017190.000

Box volume measurement unit: MMQ

Net weight of box: 0.460

Unit weight of box: KGM

EAN code: 8421053120507

Available in multiple box: No

Multiple box packaging quantity: 100

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: ZCM

Height of multiple box: 223.000

Width of multiple box: 172.000

Depth of multiple box: 430.000

Multiple box volume: 16493080.000

Multiple box volume measurement unit: MMQ

Net weight of multiple box: 2.300

Unit weight of multiple box: KGM

Multiple box EAN code: 8421053287033

Available on pallet: No
