Double rocker for switches ivory Simon 82

REFERENCE NO.: 82025-31

R.P.: Price on request

PACKAGING: 5 Units

Variables de unidades de obras ---> -false-false

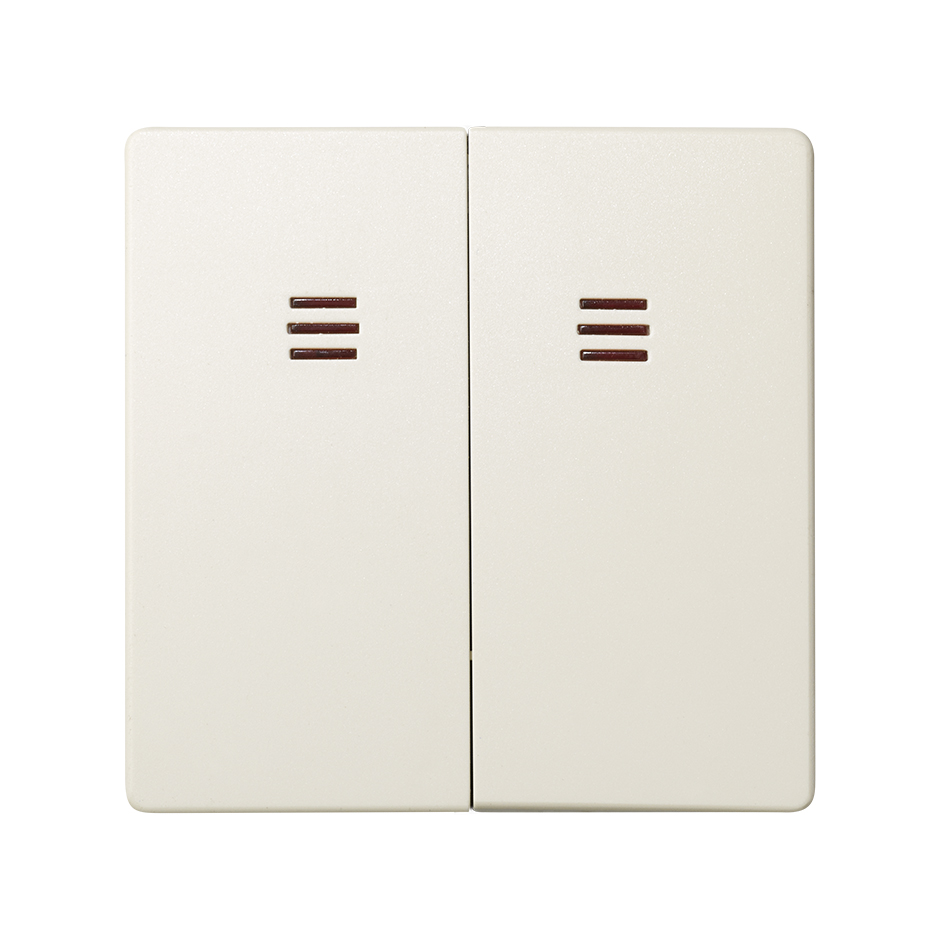

Double rocker with viewer Simon 82 ivory front view


This image represents the combination of different references

Double rocker with viewer Simon 82 ivory packaging

SERIES: Simon 82 FINISH: Ivory MATERIAL: Plastic DIMENSIONS: 55x55 mm Switches

75393-39

75394-39

Product description

It is a double rocker for control mechanisms in ivory colour of the Simon 82 series, you can find it in the category of ""rockers and covers"", with six different finishes mixing textures, so that you can choose the one you like best for your home, it is advisable to choose the frame in the same baseboard colour as the rocker to continue taking advantage of the design of the Simon 82 series. The Simon 82 series mixes the noble finish with the minimalist design, so they have a wide range of textures that adapt to each of the spaces in the home allowing maximum performance in each of the elements, to make a comfortable home needs to adapt the most advanced functions, so you can control multimedia options or sound, regulate the intensity of light in each of their rooms or raise and lower the blinds in automatic mode, with just the push of a button.

BASIC INFORMATION

Series: Simon 82

Version: Double

Finish: Ivory

Indicator function: Yes

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Double rocker and fastening bracket

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 597780.000

Box volume measurement unit: MMQ

Net weight of box: 0.100

Unit weight of box: KGM

EAN code: 8421053037164

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No
