Double rocker for switches white Simon 82

REFERENCE NO.: 82025-30

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

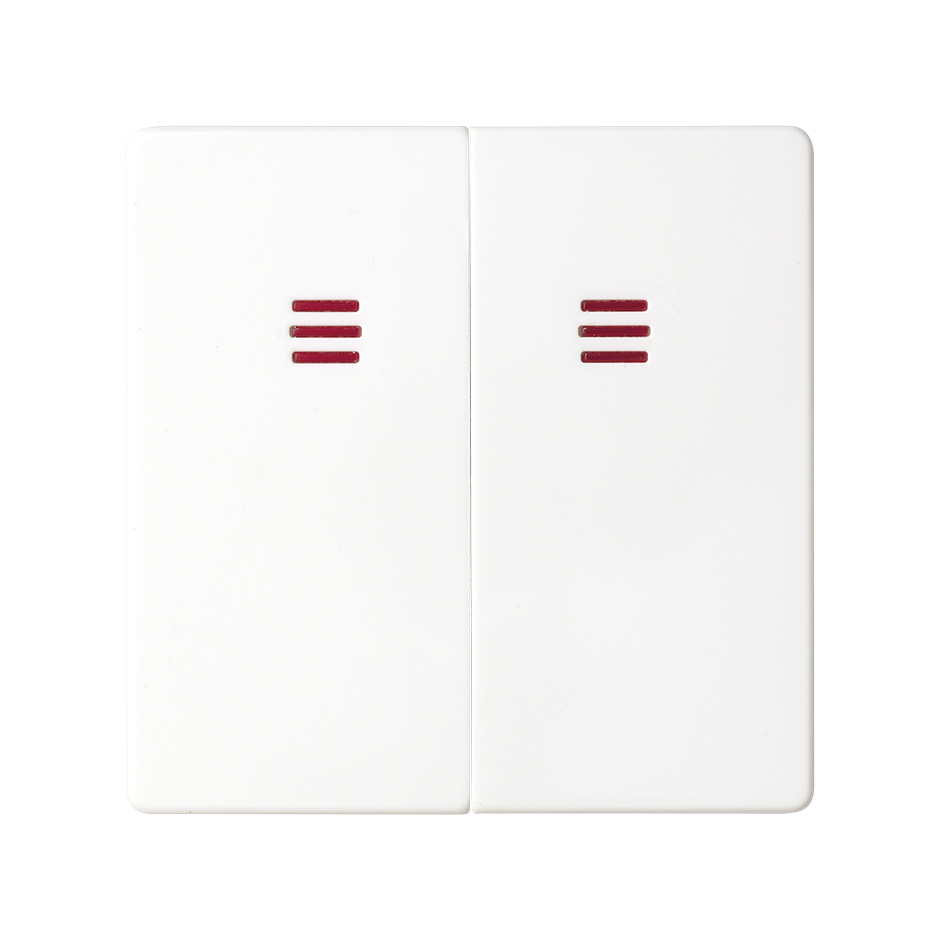

Double rocker with viewer Simon 82 white front view


This image represents the combination of different references

Double rocker with viewer Simon 82 white packaging


SERIES: Simon 82 FINISH: White MATERIAL: Plastic DIMENSIONS: 55x55 mm Switches

75393-39

75394-39

Product description

Double rocker for control mechanisms, it has a simple and versatile finish is white in colour and is part of the Simon 82 series. The white finish is the perfect for those who they bet by simplicity and design stylish and sober. However, the rocker with viewer is available in six finishes, with colors much more daring. It is recommended position, place the frame in the same tone as the baseboard of the rocker that has been installed. It measures 55 x 55 millimetres and it is a double version, for a single element, has a signaling function and can be installed on the surface-mounted or recessed. Thanks to the material of security used in its manufacture, withstands temperatures very varied (between -25 to + 50 degrees centigrade). Its design is based on the thermoset components of the highest quality, which increases the security. It does not include engraving of any kind on its design.

BASIC INFORMATION

Series: Simon 82

Version: Double

Finish: White

Indicator function: Yes

Symbol: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Double rocker and fastening bracket

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermostable

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 597780.000

Box volume measurement unit: MMQ

Net weight of box: 0.125

Unit weight of box: KGM

EAN code: 8421053037157

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No

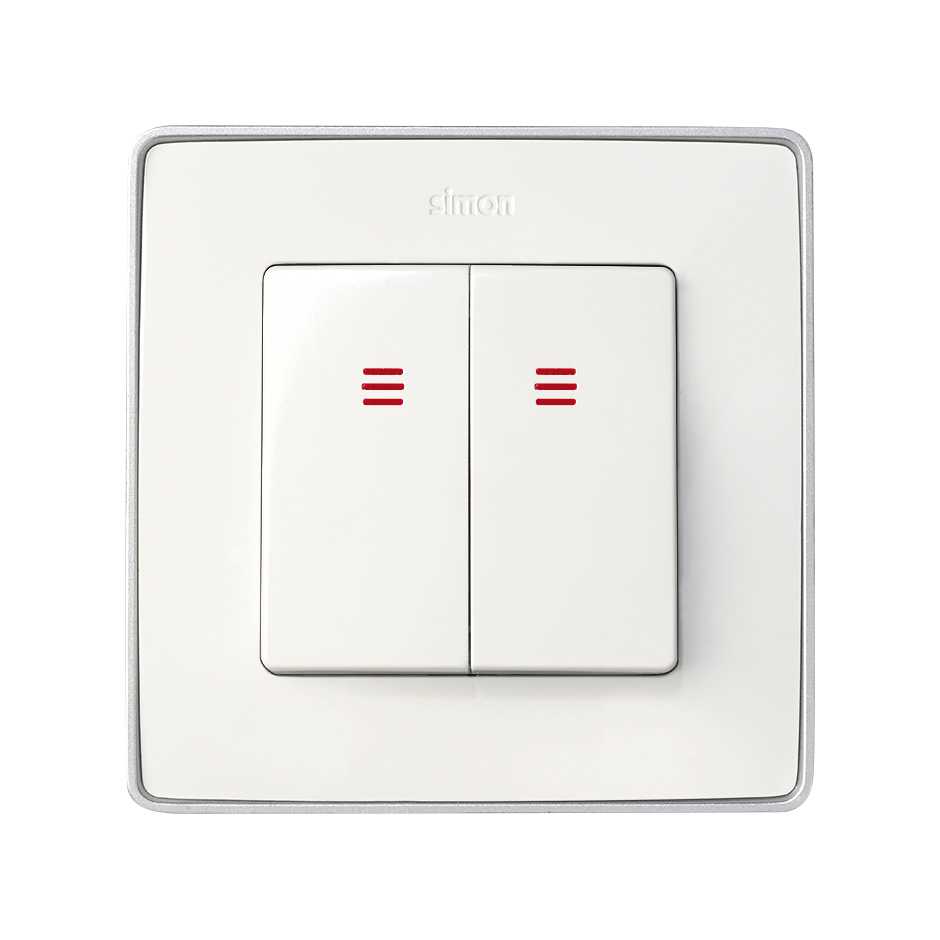

Double rocker with viewer Simon 82 white front view
