Single rocker with viewer and light symbol champagne Simon 82

REFERENCE NO.: 82016-34
R.P.: Price on request
PACKAGING: 5Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82
Version:  Single
Finish:  Champagne
Indicator function:  Yes
Symbol:  Yes, includes light symbol
No. of possible elements:  1 element
Compatibility:  Simon 75 mechanisms
Installation direction:  Vertical and horizontal
Packaging contents:  Single rocker and fastening bracket
Remarks:  Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions:  55x55 mm
IP rating:  20
RAL:  Does not have
Manufacturing material:  Galvanised thermoplastic
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  5
Box measurement unit:  MM
Height:  81.000
Wide:  82.000
Depth:  90.000
Box volume:  597780.000
Box volume measurement unit:  MMQ
Net weight of box:  0.100
Unit weight of box:  KGM
EAN code:  8421053052341
Available in multiple box:  No
Available on pallet:  No

GALLERY

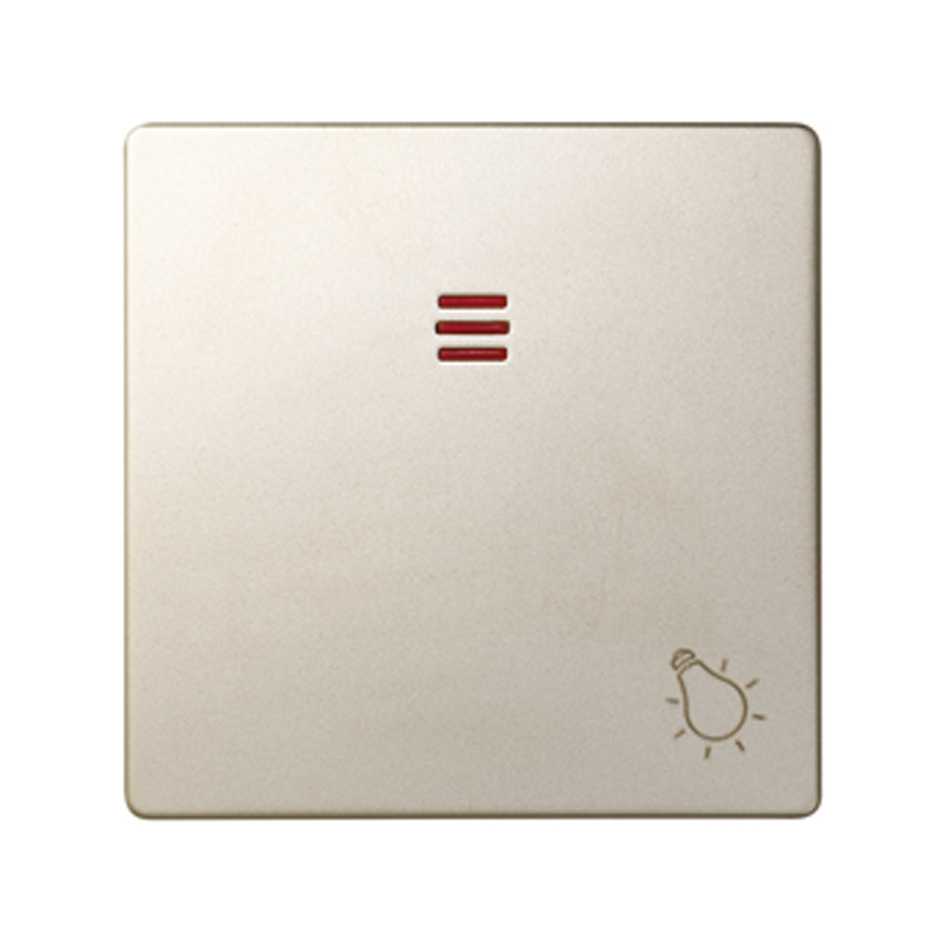

Rocker with viewer and light symbol Simon 82 champagne front view

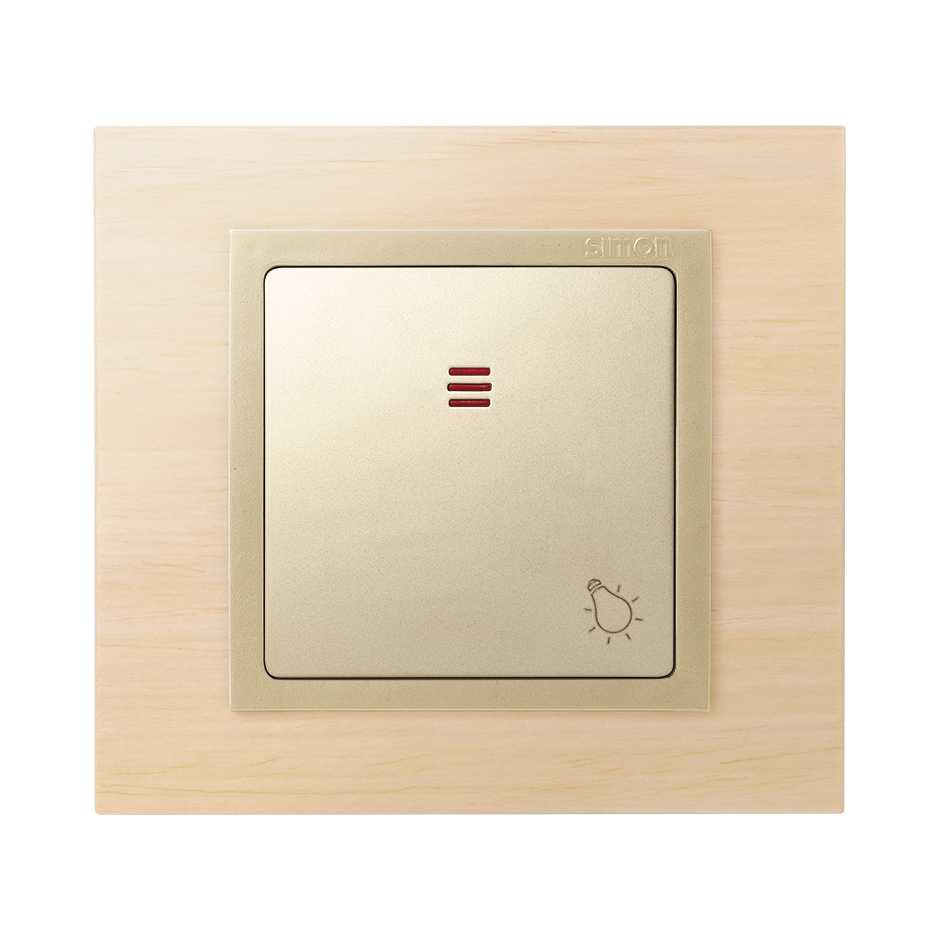

This image represents the combination of different references


PRODUCT DECLARATIONS

manual
UE declaration Single rocker with viewer and light symbol champagne Simon 82 DOWNLOAD

MODULAR SOLUTION

Push button with indicator light, champagne rocker with light symbol and frame Simon 82 Nature oak champagne interior R.P.: Price on request
REFERENCE NO.: 75160-39 R.P.: Price on request Push-button switch 10A 250V~ with built-in light and fast terminal connection system
REFERENCE NO.: 82016-34 R.P.: Price on request Single rocker with viewer and light symbol champagne Simon 82
REFERENCE NO.: 82917-66 R.P.: Price on request Frame for 1 element oak interior champagne Simon 82 Nature
Push button with indicator light, champagne rocker with light symbol and frame Simon 82 Nature maple champagne interior R.P.: Price on request
REFERENCE NO.: 75160-39 R.P.: Price on request Push-button switch 10A 250V~ with built-in light and fast terminal connection system
REFERENCE NO.: 82016-34 R.P.: Price on request Single rocker with viewer and light symbol champagne Simon 82
REFERENCE NO.: 82917-68 R.P.: Price on request Frame for 1 element maple interior champagne Simon 82 Nature
