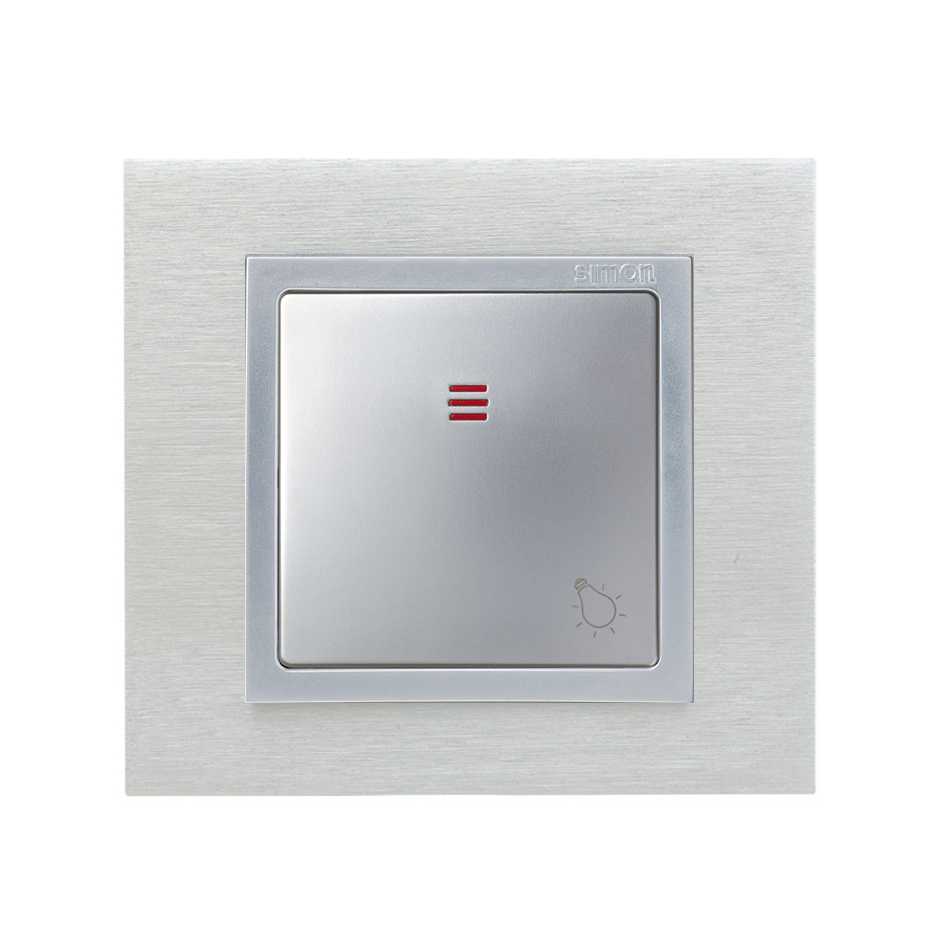

This image represents the combined solution of different references

This image represents the combined solution of different references


This image represents the combined solution of different references

Ref
82016-33

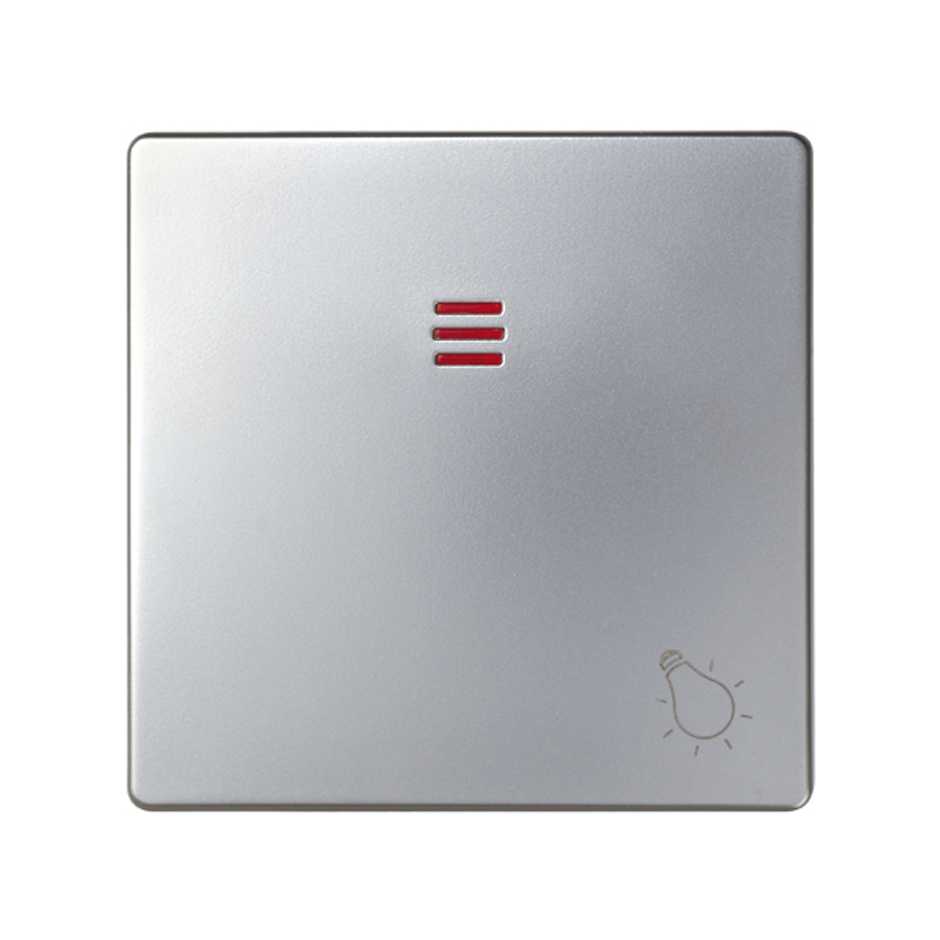

Single rocker with viewer and light symbol aluminium Simon 82

Price/Unit
€7.50
Packaging quantity
5 Units

Available downloads

Data sheet

82016-33.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Product Information

With aluminium finishes to give freshness and elegance to any room, the individual rocker with viewer of Simon 82, is the perfect to get the perfect balance between design, functionality and innovation. Includes signaling function for beacon the mechanism in situations of a low lighting with a discreet and original light engraving.

It has a size of 55 x 55 mm and is designed for installation both recessed and surface-mounted, for greater versatility of the set and guarantee its complete integration in the space, adapting to the specific needs of each room.

With the galvanized thermoplastic and raw material, ensuring greater security and the most efficient in case of fire, since it can reach a temperature range of 5 to 40 ° C and maximum temperatures of -25 and 50 ºC.

Available in 6 finishes, Simon 82 recommended to combine frame and rocker baseboard of in the same colour to obtain the perfect balance.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Aluminium

  • Symbol

    Light

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical Information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.02 KGM

  • Product gross weight

    0.02 KGM

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    597780 MMQ

  • Packaging net weight

    0.1 KGM

  • Packaging gross weight

    0.1 KGM

  • Packaging EAN

    8421053052334
