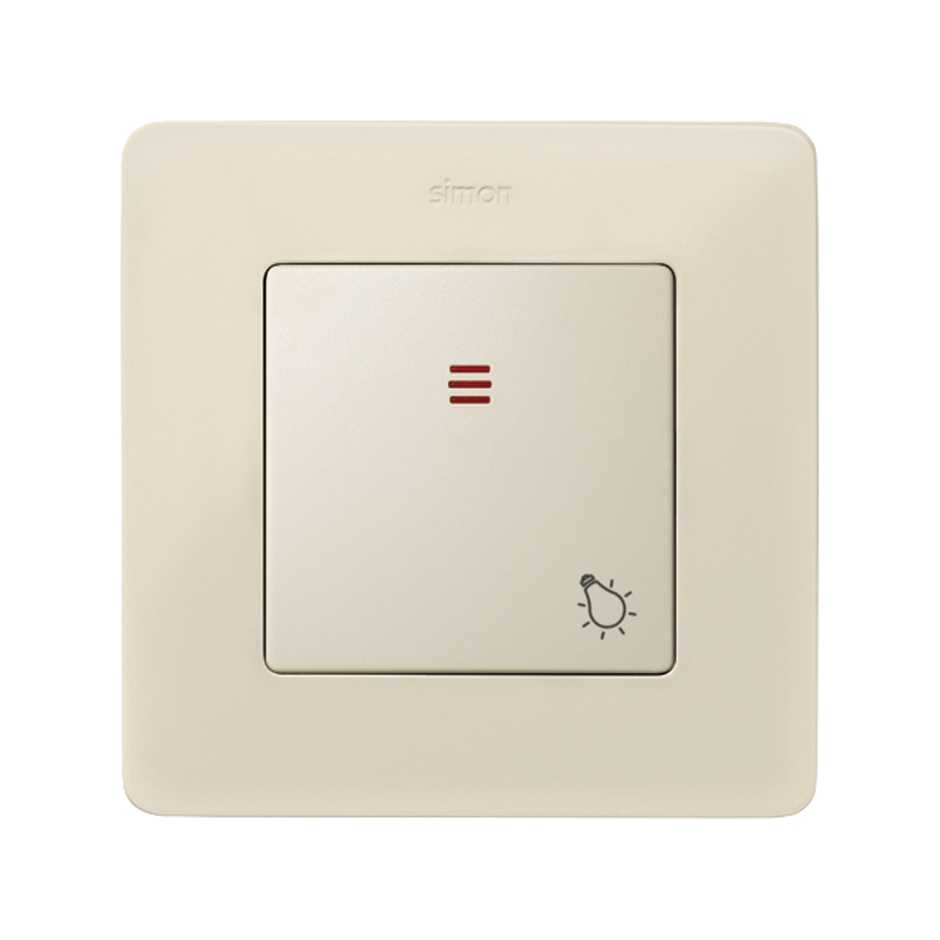

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82016-31

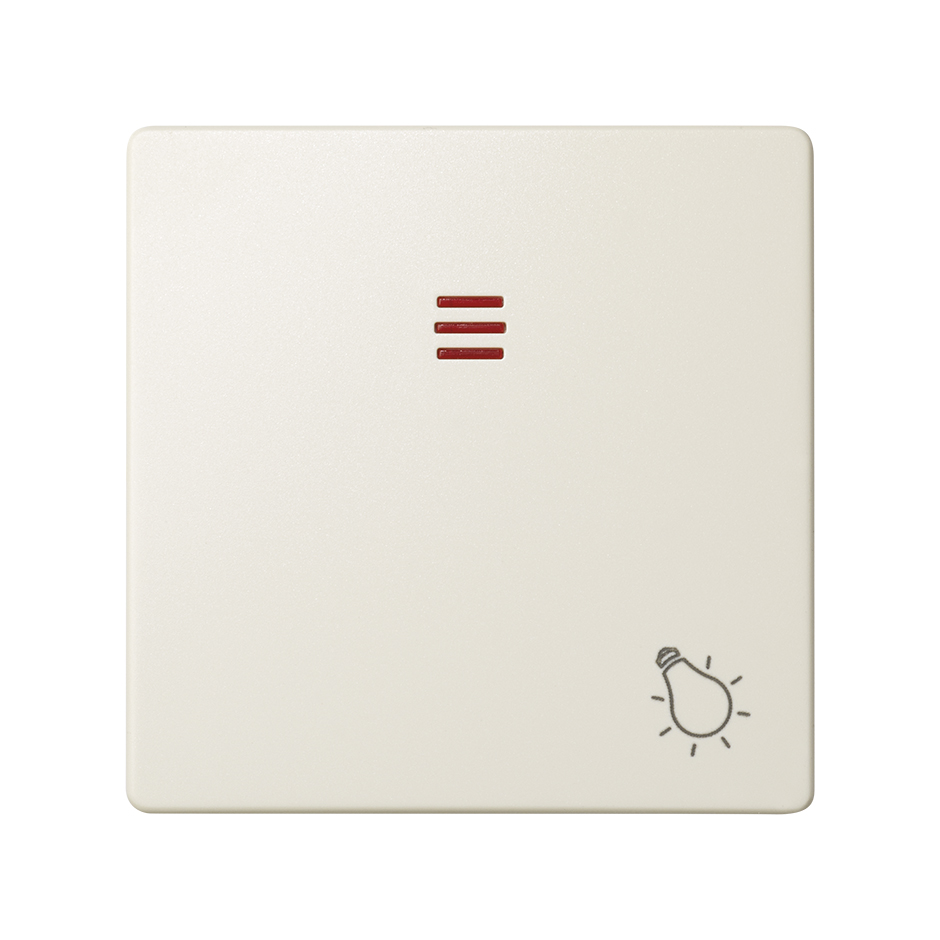

Single rocker with viewer and light symbol ivory Simon 82

Price/Unit
€5.96
Packaging quantity
10 Units

Available downloads

Data sheet

82016-31.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

Its compact design of 55 x 55 mm and its finishes in a sophisticated ivory colour, make the individual rocker with viewer of the Simon 82 collection, the ideal option to give any space finishes of neutral lines and avant-garde design. With a subtle and original light engraving, the rocker of this range has a signaling function to balón the mechanism in situations of a low or zero lighting.

With an installation suitable for recessed or surface-mounted, guaranteeing the integration of the set in any space compact, adapting to the specific needs of each room. Also, it has 6 finishes available to the versatility of design adapts to the ambience and decorative style of each space.

Made of thermoplastic materials, ensures a longer and more efficient protection of the room in case of fire, since it can reach a maximum temperature of -25 and 50 ºC.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Ivory

  • Symbol

    Light

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.023 KGM

  • Product gross weight

    0.023 KGM

  • Packaging quantity

    10

  • Packaging height

    82 MMT

  • Packaging width

    83 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    1517738 MMQ

  • Packaging net weight

    0.23 KGM

  • Packaging gross weight

    0.451 KGM

  • Packaging EAN

    8421053052327
