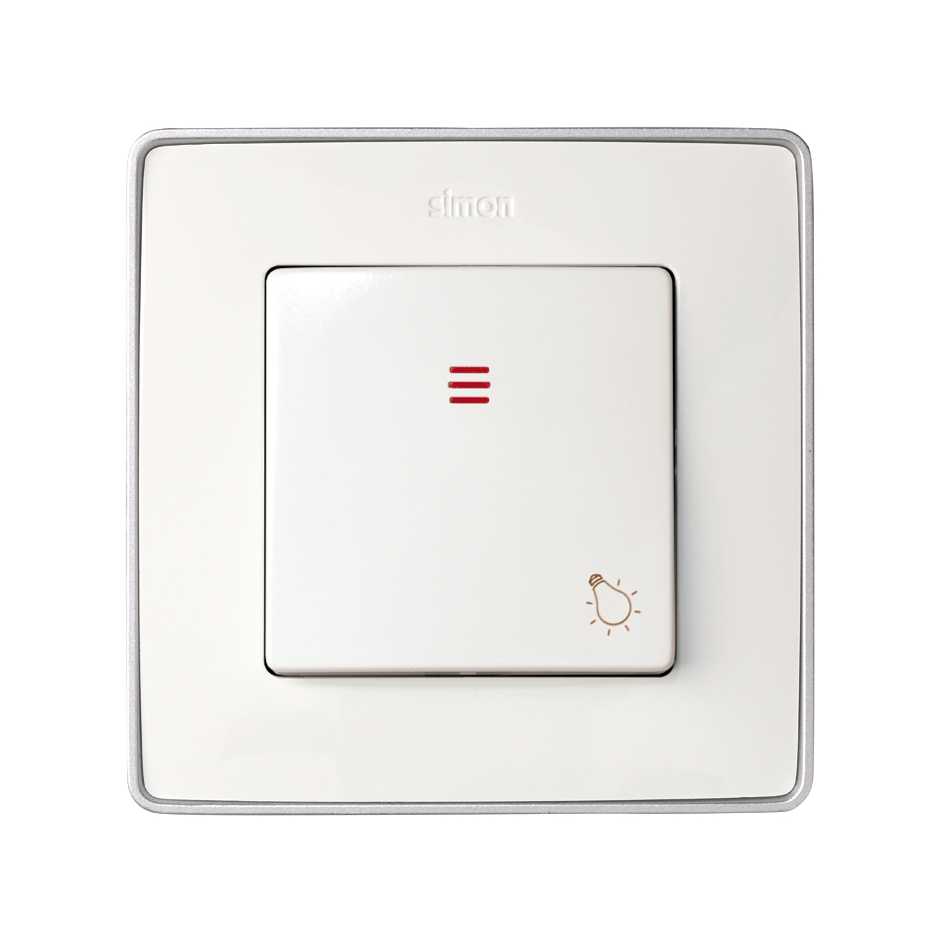

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82016-30

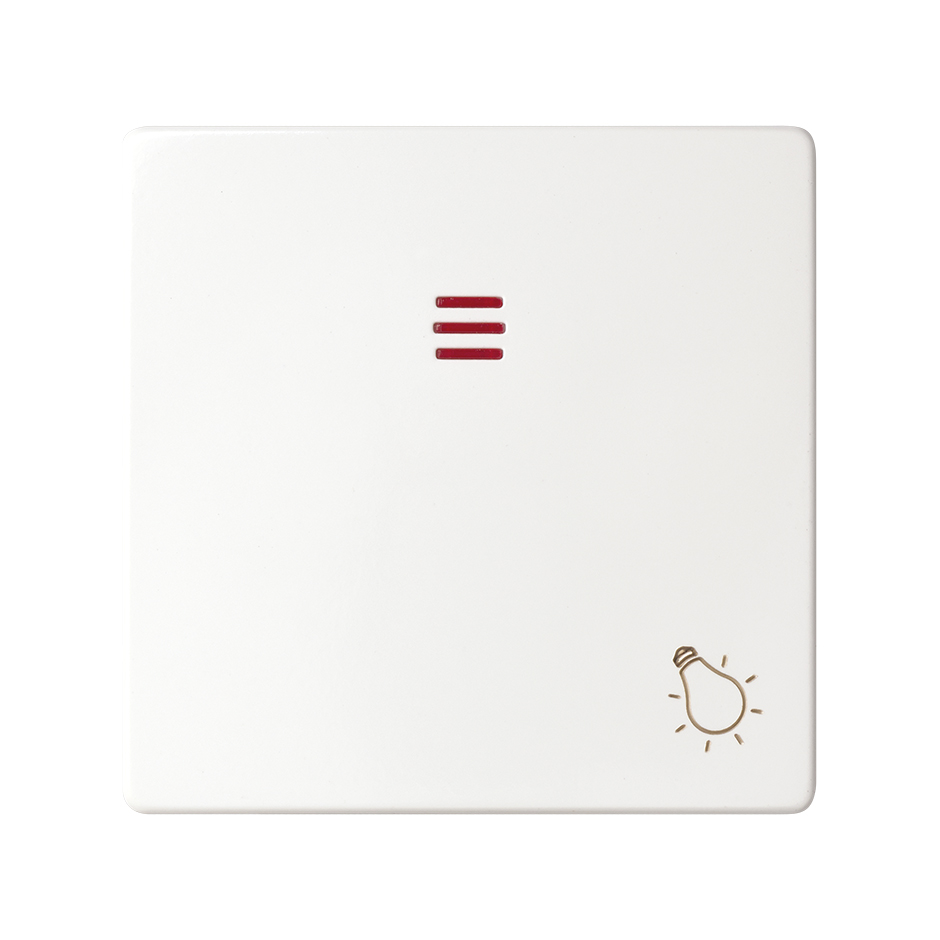

Single rocker with viewer and light symbol white Simon 82

Price/Unit
€5.74
Packaging quantity
10 Units

Available downloads

Data sheet

82016-30.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

Individual rocker for the Simon 82 series, finished in white colour, and with viewer and light engraving.

This rocker of the Simon 82 series is available in 6 finishes, we recommend that you always choose the frame with the same baseboard colour as the rocker selected.

It measures 55x55mm and is made of thermoplastic and complies with the regulations UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009.

To clean it, you will only need to use a soft cloth slightly moistened in soapy water, without having to use never abrasive cloths or cleaners containing chlorine, as it could be damaged reach and does not work in the correct way.

The Simon 82 series is composed of rockers, frames and mechanisms with a balance and simplicity that creates trend. Its minimalist design, with noble finishes and a wide range of textures. Also, all the products in this range are compatible with the mechanisms of the Simon 77 series.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    White

  • Symbol

    Light

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • CE certification

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.028 KGM

  • Product gross weight

    0.028 KGM

  • Product EAN

    8421053257371

  • Packaging quantity

    10

  • Packaging height

    82 MMT

  • Packaging width

    83 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    1517738 MMQ

  • Packaging net weight

    0.28 KGM

  • Packaging gross weight

    0.551 KGM

  • Packaging EAN

    8421053052310
