Single rocker with viewer and bell symbol cold aluminium Simon 82 Detail

REFERENCE NO.: 82015-93
R.P.: Price on request
PACKAGING: 5Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82 Detail
Version:  Single
Finish:  Cold aluminium
Indicator function:  Yes
Symbol:  Yes, includes bell symbol
No. of possible elements:  1 element
Compatibility:  Simon 75 mechanisms
Installation direction:  Vertical and horizontal
Packaging contents:  Single rocker and fastening bracket
Remarks:  Available in 6 finishes. It is recommended to choose a frame with the same base colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions:  55x55 mm
IP rating:  20
RAL:  Does not have
Manufacturing material:  Metallised thermoplastic
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  5
Box measurement unit:  MM
Height:  81.000
Wide:  82.000
Depth:  90.000
Box volume:  597780.000
Box volume measurement unit:  MMQ
Net weight of box:  0.500
Unit weight of box:  KGM
EAN code:  8421053120453
Available in multiple box:  No
Multiple box measurement unit:  MM
Multiple box packaging quantity measurement unit:  UN
Unit weight of multiple box:  KG
Available on pallet:  No

GALLERY

82015-93-tecla-individual-con-visor-y-grabado-campana-aluminio-frio-simon-82-detail-frontal_6.jpg

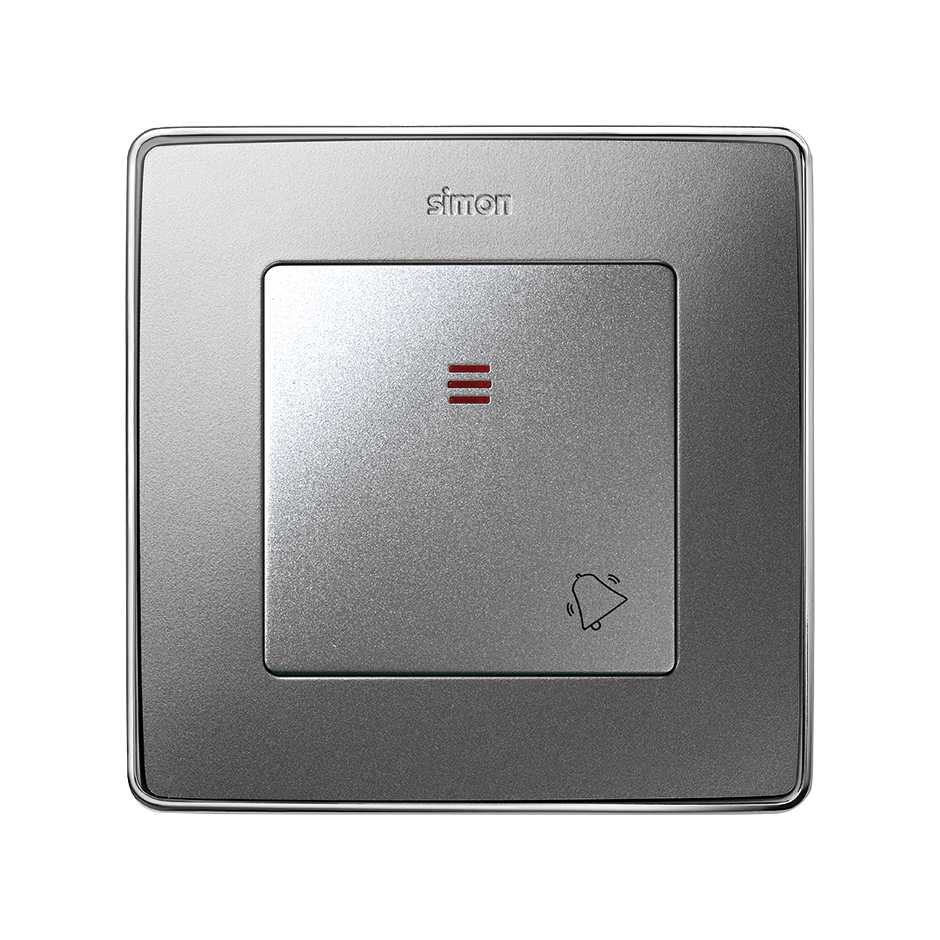

Rocker with viewer and bell symbol Simon 82 cold aluminium front view


This image represents the combination of different references

82015-93-tecla-individual-con-visor-y-grabado-campana-aluminio-frio-simon-82-detail-frontal_6.jpg

PRODUCT DECLARATIONS

manual
DOWNLOAD

MODULAR SOLUTION

Push button with indicator light, rocker with bell symbol and frame Simon 82 Detail Select cold aluminium chrome base R.P.: Price on request
REFERENCE NO.: 75160-39 R.P.: Price on request Push-button switch 10A 250V~ with built-in light and fast terminal connection system
82015-93-tecla-individual-con-visor-y-grabado-campana-aluminio-frio-simon-82-detail-frontal_5.jpg
REFERENCE NO.: 82015-93 R.P.: Price on request Single rocker with viewer and bell symbol cold aluminium Simon 82 Detail
8201610-093-marco-1-elemento-aluminio-frio-base-cromo-select-simon-detail-82-frontal_7.jpg
REFERENCE NO.: 8201610-093 R.P.: Price on request Frame for 1 element cold aluminium chrome base Simon 82 Detail Select
