Ref
82015-38

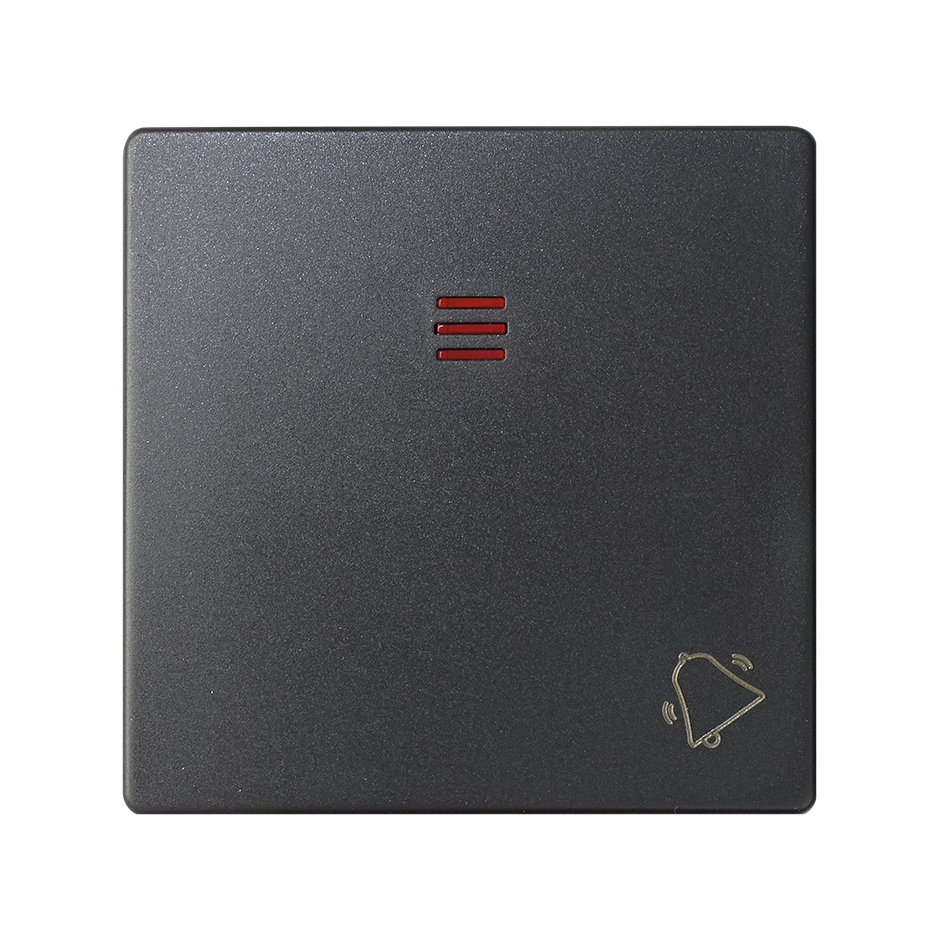

Single rocker with viewer and bell symbol graphite Simon 82

Price/Unit
€6.28
Packaging quantity
5 Units

Available downloads

Data sheet

82015-38.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

Current market trends point in a direction where simple designs and simple lines stand out among consumer preferences. This is why the Simon 82 series has been created precisely to meet the new needs of the user.

Belongs to this series the individual rocker, in graphite colour, with a sight glass for control mechanisms, it includes bell engraving, measures 55 mm high x 55 mm wide and is made of thermoplastic material, it is suitable to be recessed and for installation in surface-mounted.

It is recommended to use a soft cloth and slightly dampened in soapy water to clean this piece properly, it is important to avoid the use of abrasive products containing chlorine.

The legal framework that applies to this rocker is UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009.

In terms of maximum and minimum temperatures, bear in mind that the operating range is 5 to 40º C and the storage temperature range is -25 to 50º C.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

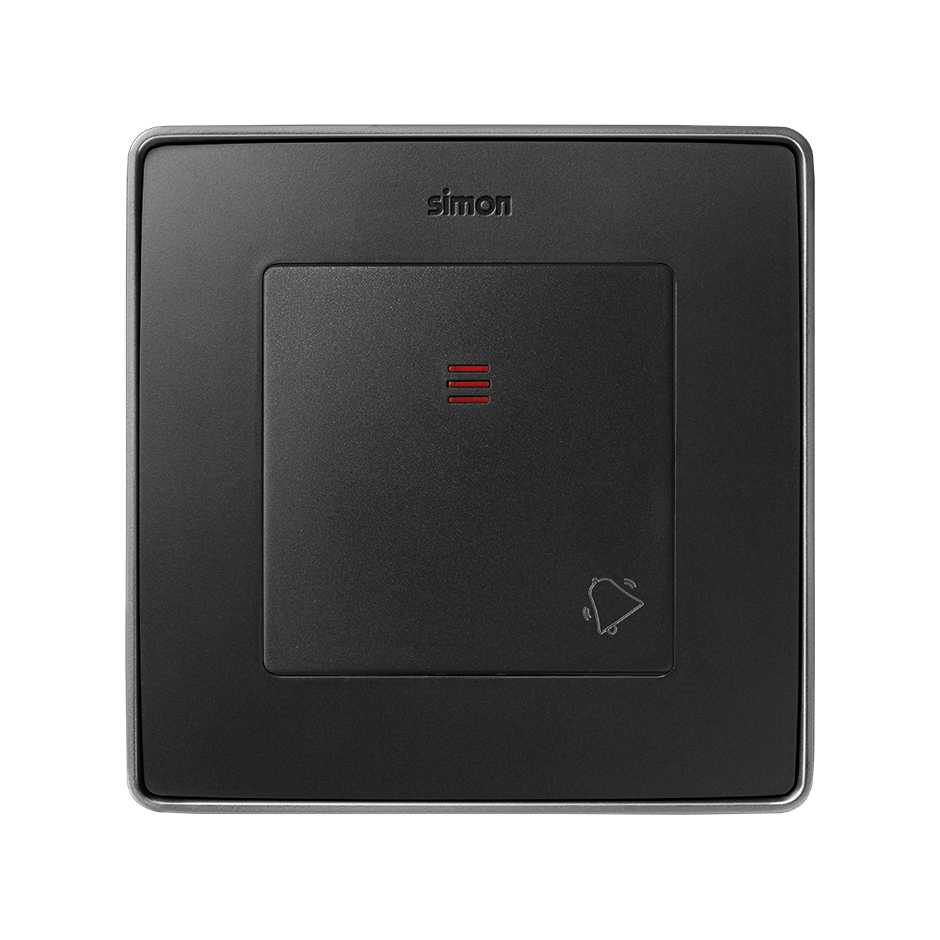

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Graphite

  • Symbol

    Bell

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.02 KGM

  • Product gross weight

    0.02 KGM

  • Product EAN

    8421053257364

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    597780 MMQ

  • Packaging net weight

    0.1 KGM

  • Packaging gross weight

    0.1 KGM

  • Packaging EAN

    8421053052303
