Ref
82013-38

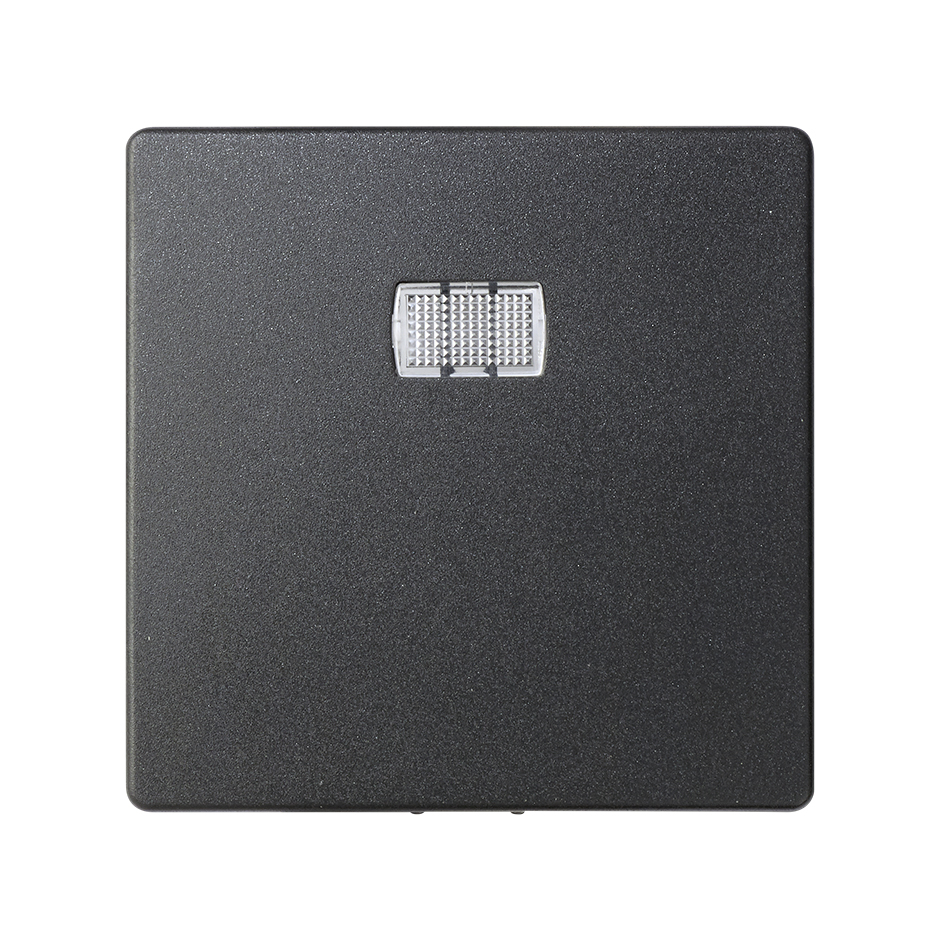

Single rocker combinable with viewers 82972 and 82982 graphite Simon 82

Price/Unit
€5.23
Packaging quantity
5 Units

Available downloads

Data sheet

82013-38.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

Dsiponemos with the option of this individual rocker combinable with viewfinders 82972 and 92892 in graphite colour and of the Simon 82 series, you can find it in the category of ""rockers and covers"". To belong to the Simon 82 range, you have up to six finishes available to combine as you want the piece, from Simon the recommendation is to choose the frame in the same baseboard colour as the rocker selected to get the most out of the element in your home, its dimensions are 55x55 mm to take into account at the time of installation.

The operating temperature range is from 5ºC to 40ºC thanks to the fact that it is manufactured with metallic components of thermoplastic insulation that allow its maximum performance, it is also suitable for surface mounting or flush mounting. For its maintenance, you just need to use a soft, clean cloth without using any liquid, which will leave the element as new.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Graphite

  • Symbol

    Without engravings

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.02 KGM

  • Product gross weight

    0.02 KGM

  • Product EAN

    8421053257333

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    597780 MMQ

  • Packaging net weight

    0.1 KGM

  • Packaging gross weight

    0.1 KGM

  • Packaging EAN

    8421053052259
