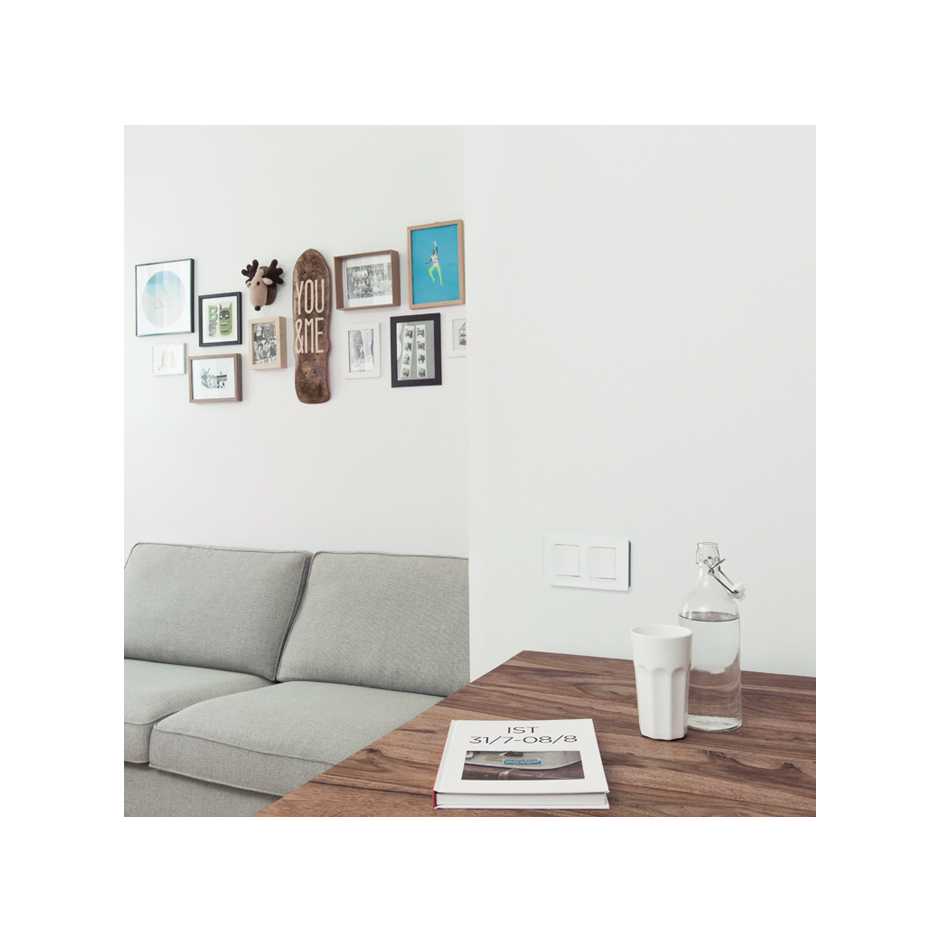

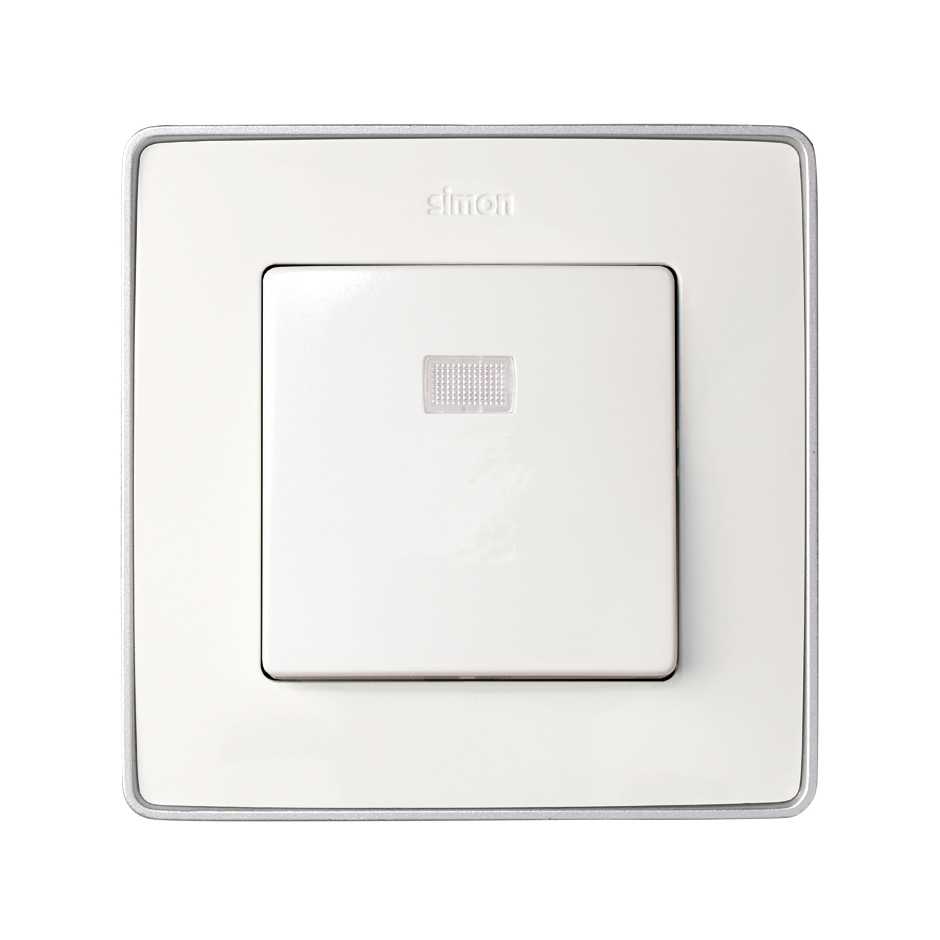

This image represents the combined solution of different references

Ref
82013-30

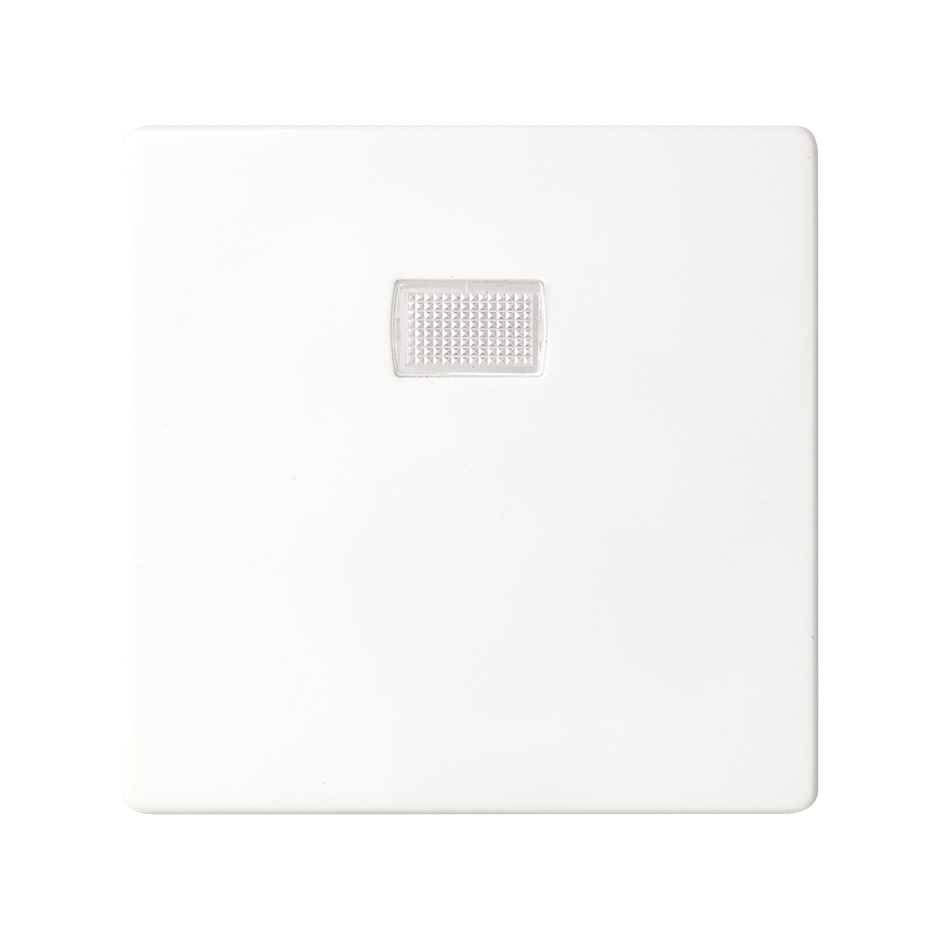

Single rocker combinable with viewers 82972 and 82982 white Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
Installation manual
Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Individual rocker combinable with viewfinders 82972 and 82983. Presents a finish in white colour (even if it is available in 6 finishes and it is recommended to use the frame with the same baseboard colour as the rocker selected) and is part of the Simon 82 series.

This rocker is suitable both for surface and flush mounting in rooms with a temperature located between 5 and 40ºC, although it is able to withstand extreme temperatures of -25 to 50ºC, approximately.

It measures 55x55mm and complies with the regulation UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009.

It is made of thermoset plastic, a material that is very easy to maintain, because only vas to need to use, for cleaning, a soft cloth, slightly moistened in soapy water, without having to use never abrasive cloths or cleaners containing chlorine, as it could be damaged the reach rocker.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    White

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    3026595MMQ

  • Product net weight

    0.024KGM

  • Product gross weight

    0.024KGM

  • Product EAN

    8421053257302

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    597780MMQ

  • Packaging net weight

    0.12KGM

  • Packaging gross weight

    0.12KGM

  • Packaging EAN

    8421053052211
