Ref
82011-34

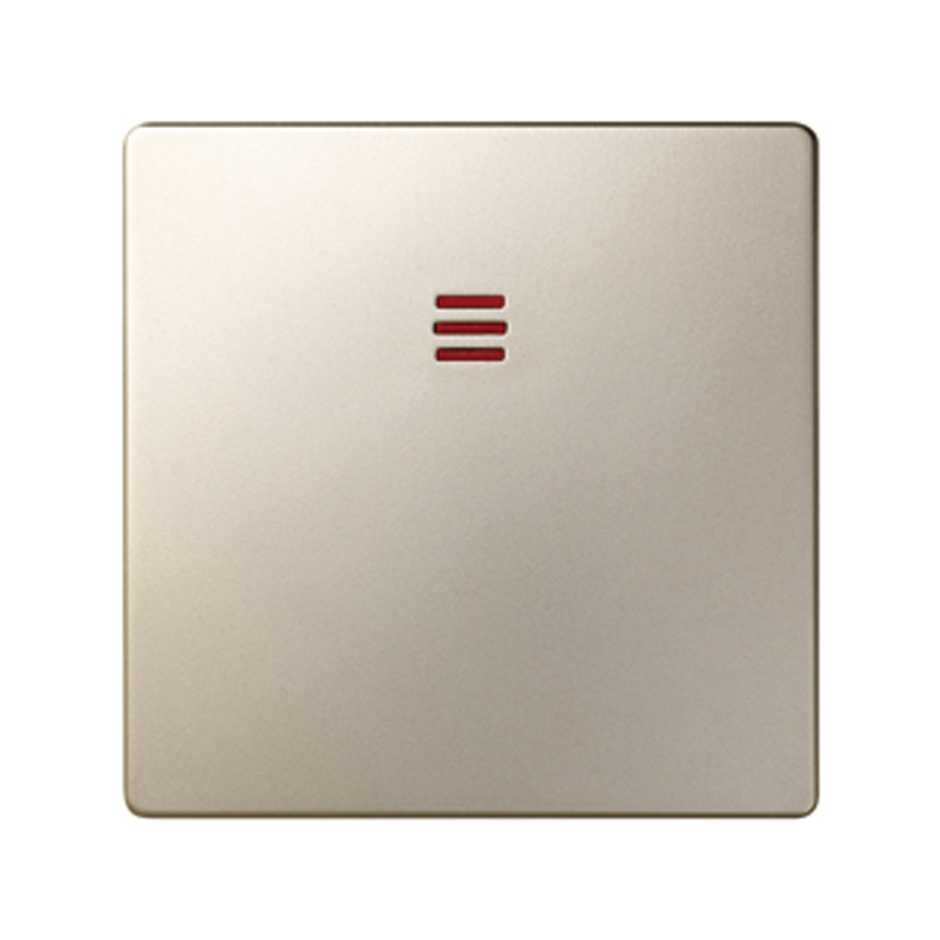

Single rocker for switches with light champagne Simon 82

Price/Unit
€7.19
Packaging quantity
20 Units

Available downloads

Data sheet

82011-34.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Product Information

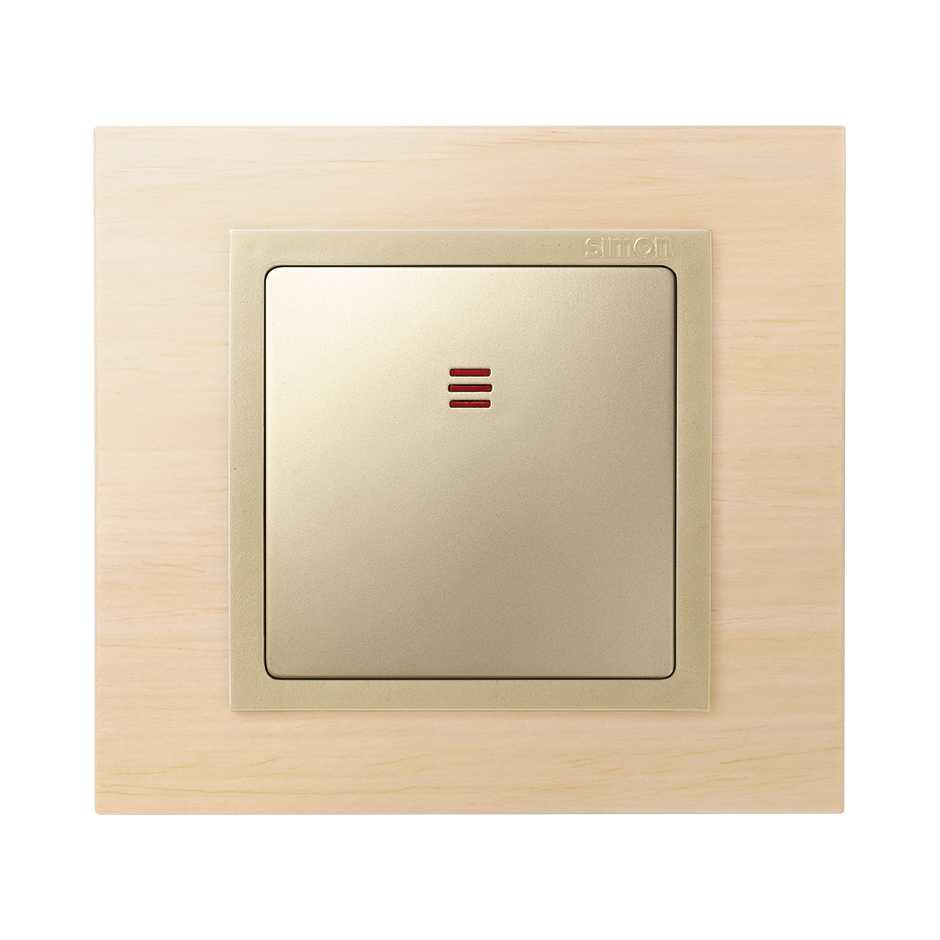

In terms of the features of the individual rocker for control mechanisms with champagne luminous light that has dimensions of 55x55 mm belongs to the Simon 82 series, which is characterized by its minimalist design, noble finishes and extensive range of textures, providing elegance, balance and simplicity that create trend. There are six different finishes so you can choose a suitable frame, creating a perfect set for every corner of your home, if you want to make the most of your technological elements, it is recommended to choose a frame with the same baseboard colour as the selected rocker. Its installation can be done in two ways since it is suitable for surface mounting or flush mounting.

The average temperature ranges between 5 and 40ºC reaching maximum temperatures of -25 to 50ºC. Also, you have the security you are looking for in the technological elements of your home, since it complies with the regulation: UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Symbol

    Without engravings

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical Information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product net weight

    0.022 KGM

  • Product gross weight

    0.022 KGM

  • Product EAN

    8421053257180

  • Packaging quantity

    20

  • Packaging height

    82 MMT

  • Packaging width

    165 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    3017190 MMQ

  • Packaging net weight

    0.44 KGM

  • Packaging gross weight

    0.44 KGM

  • Packaging EAN

    8421053052198
