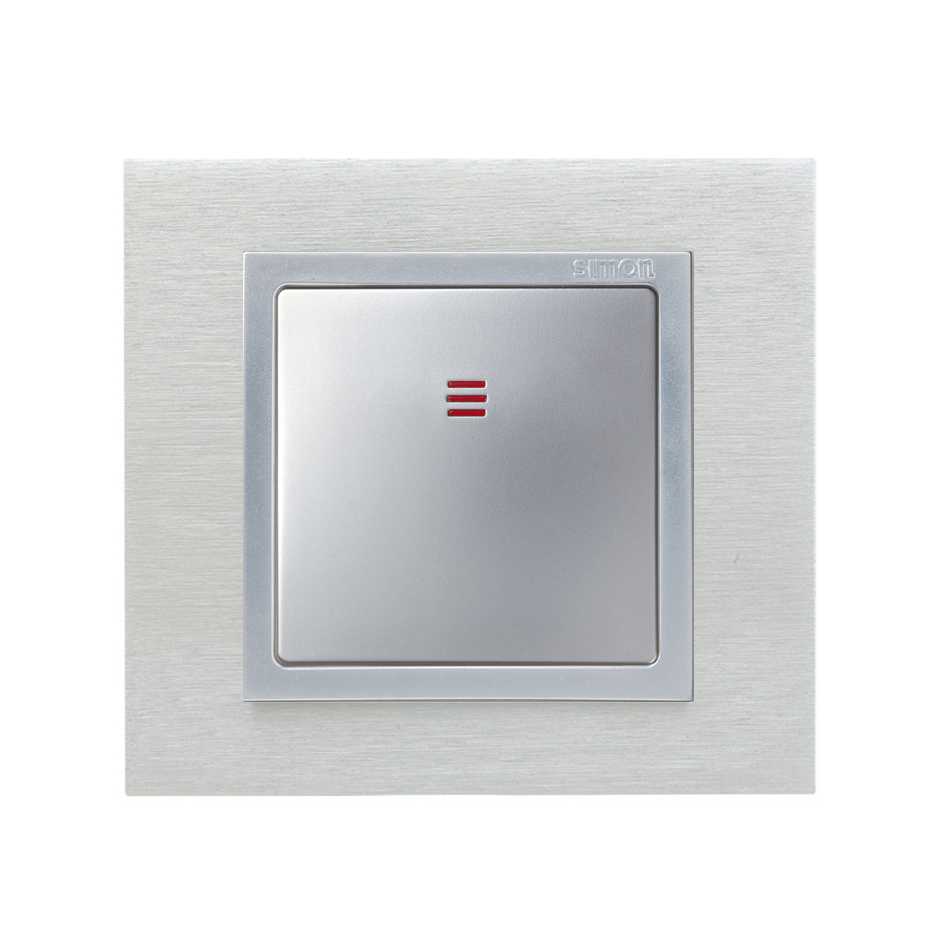

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82011-33

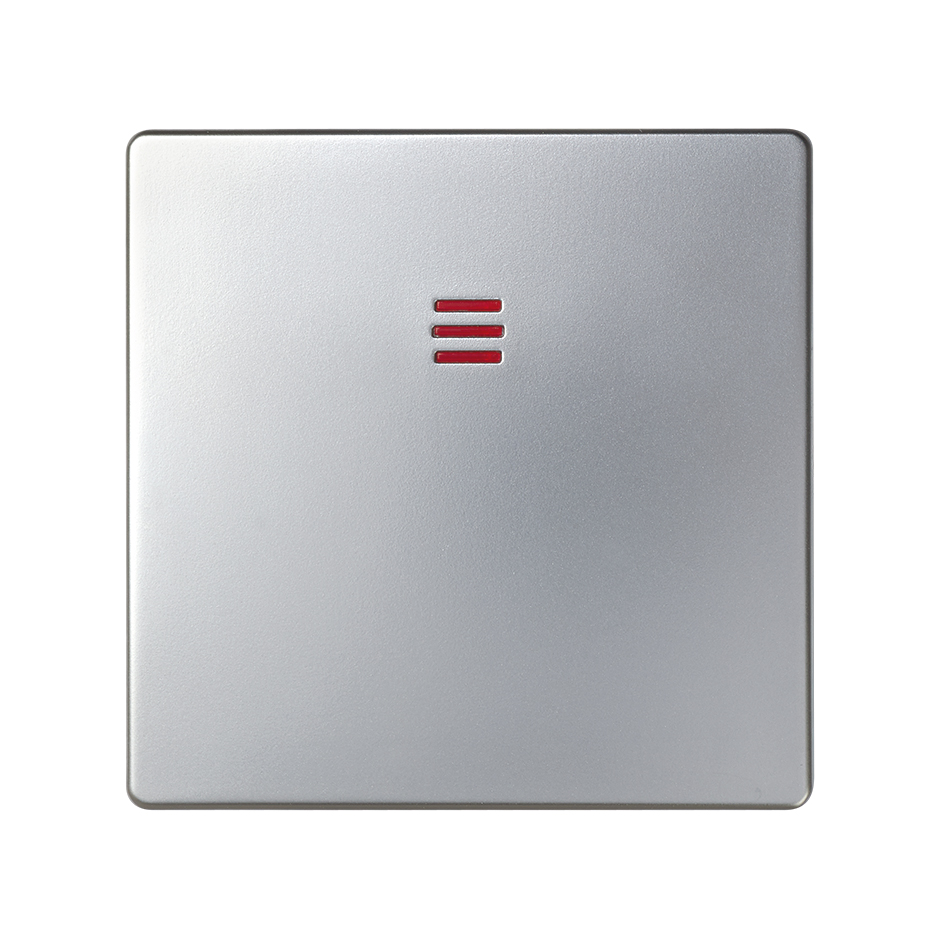

Single rocker for switches with light aluminium Simon 82

Price/Unit
Price on request
Packaging quantity
20 Units

Available downloads

Technical specifications
82011-33-datasheet-en.pdf
Product declaration

  1. UES0081.pdf [624KB]

Certificación CE

AENOR 030-002064 20230207.pdf

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

<p class=>Push-button switch 10A 250V~ built-in light front view</p>
Ref
75160-39
Push-button switch 10A 250V~ with built-in light and fast terminal connection system
<p class=>Push-button switch 10A 24V~ with red LED front view</p>
Ref
75552-39
Push-button switch 10A 24V~ with built-in red LED and fast terminal connection system
<p class=>2-way switch 10AX 250V~ built-in light front view</p>
Ref
75204-39
2-way switch 10AX 250V~ with built-in light and fast terminal connection system
<p class=>Intermediate switch 10AX 250V~ built-in light front view</p>
Ref
75254-39
Intermediate switch 10AX 250V~ with built-in light and fast terminal connection system
<p class=>2-way switch 10AX 250V~ built-in pilot light front view</p>
Ref
75202-39
2-way switch 10AX 250V~ with built-in pilot light and fast terminal connection system
<p class=>Single-pole switch 10AX 250V~ front view</p>
Ref
75104-39
Single-pole switch 10AX 250V~ with built-in light and fast terminal connection system
<p class=>Single-pole switch 10AX 250V~ front view</p>
Ref
75102-39
Single-pole switch 10AX 250V~ with built in pilot light and fast terminal connection system
Product Information
Downloads
Support

Manufactured in thermoplastic, we find this individual rocker with aluminium finishes for luminous control mechanisms, it is also available in a total of 6 different shades, although we recommend choosing the frame of the same shade from the baseboard of the selected rocker. As far as the installation is concerned, the piece is suitable for position, place in both a surface-mounted or to be recessed.

It measures 55x55. The rocker not only satisface our exhaustive quality controls, but also complies with the current regulation. Its materials make it capable of being fully functional in temperatures ranging from 5 to 40ºC, in addition to being able to operate at maximum temperatures of up to -25 and 50º C. As far as the way to wash the piece, it is recommended to use a damp cloth, avoiding in any case any product containing chlorine.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Aluminium

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.023KGM

  • Product gross weight

    0.023KGM

  • Product EAN

    8421053257173

  • Packaging quantity

    20

  • Packaging height

    82MMT

  • Packaging width

    165MMT

  • Packaging length

    223MMT

  • Packaging volume

    3017190MMQ

  • Packaging net weight

    0.46KGM

  • Packaging gross weight

    0.464KGM

  • Packaging EAN

    8421053052181
