Single rocker for switches with light ivory Simon 82

Single rocker for switches with light ivory Simon 82

REFERENCE NO.: 82011-31

R.P.: Price on request

PACKAGING: 20Units

Variables de unidades de obras ---> -false-false

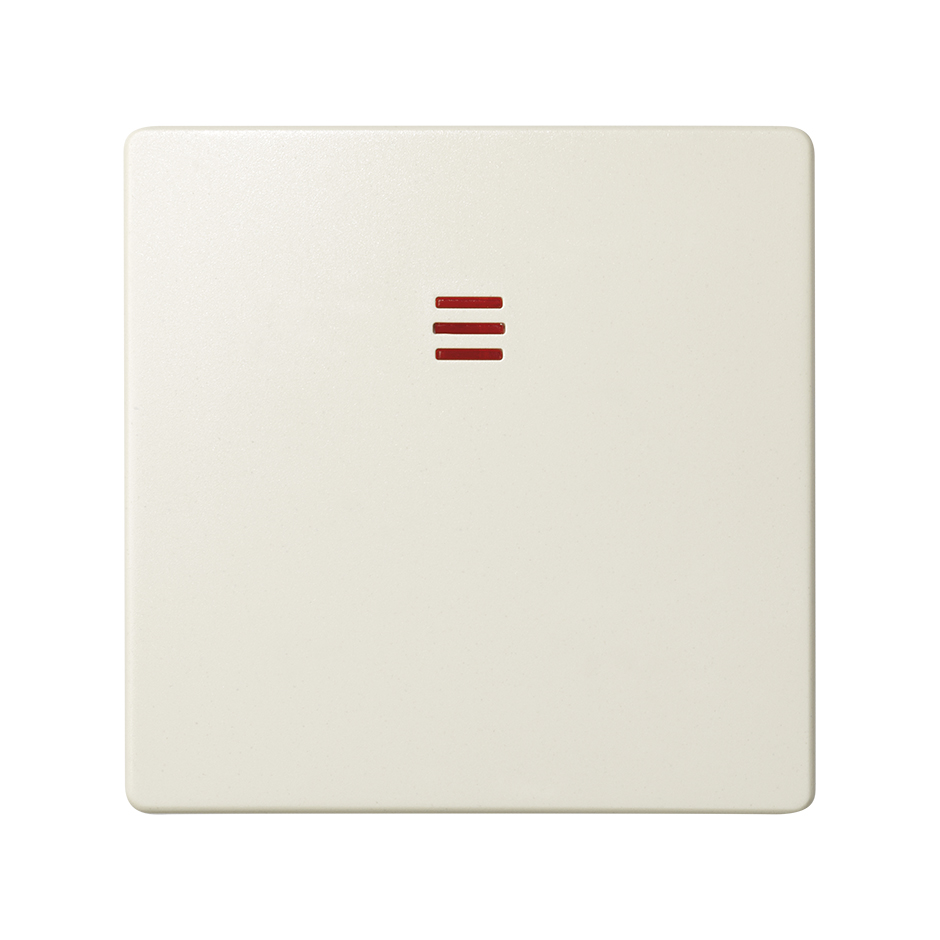

Rocker with viewer Simon 82 ivory front view


This image represents the combination of different references

Rocker with viewer Simon 82 ivory packaging

82011-31-tecla-individual-mecanismos-de-mando-con-luminoso-marfil-simon-82-frontal_5.jpg

SERIES: Simon 82 FINISH: Ivory MATERIAL: Plastic DIMENSIONS: 55x55 mm COMPATIBLE SERIES: Simon 82 Detail Simon 82 Nature Simon 82 Switches

75102-39

75104-39

75160-39

75202-39

75204-39

75254-39

Product description

This is an individual rocker for control mechanisms with luminous in ivory colour and corresponding to the Simon 82 series. The product has dimensions of 55x55 mm and is available in 6 different finishes, the manufacturer recommends choosing the frame with the same baseboard colour as the rocker selected. It is presented in individual packs and is suitable for surface and flush mounting. The rocker is made of thermoplastic, a very resistant material that withstands extreme temperatures (between -25 and 50º), although it is advisable to install it in an ambience with a temperature range between 5 and 40º. The product complies with the regulation regulations and includes a bright viewfinder. For proper maintenance, it is recommended to use a soft cloth slightly moistened in soapy water. Also, it is not advisable to use cloths and / or abrasive cleaners containing chlorine, as they could damage the surface-mounted of the product.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Ivory

Indicator function: Yes

Symbol: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Single rocker and fastening bracket

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 20

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3017190.000

Box volume measurement unit: MMQ

Net weight of box: 0.440

Unit weight of box: KGM

EAN code: 8421053052174

Available in multiple box: No

Multiple box packaging quantity: 100

Multiple box packaging quantity measurement unit: ZCM

Height of multiple box: 0.000

Width of multiple box: 0.000

Depth of multiple box: 0.000

Multiple box volume: 0.000

Net weight of multiple box: 2.200

Unit weight of multiple box: KGM

Available on pallet: No

82011-31-tecla-individual-mecanismos-de-mando-con-luminoso-marfil-simon-82-frontal_6.jpg

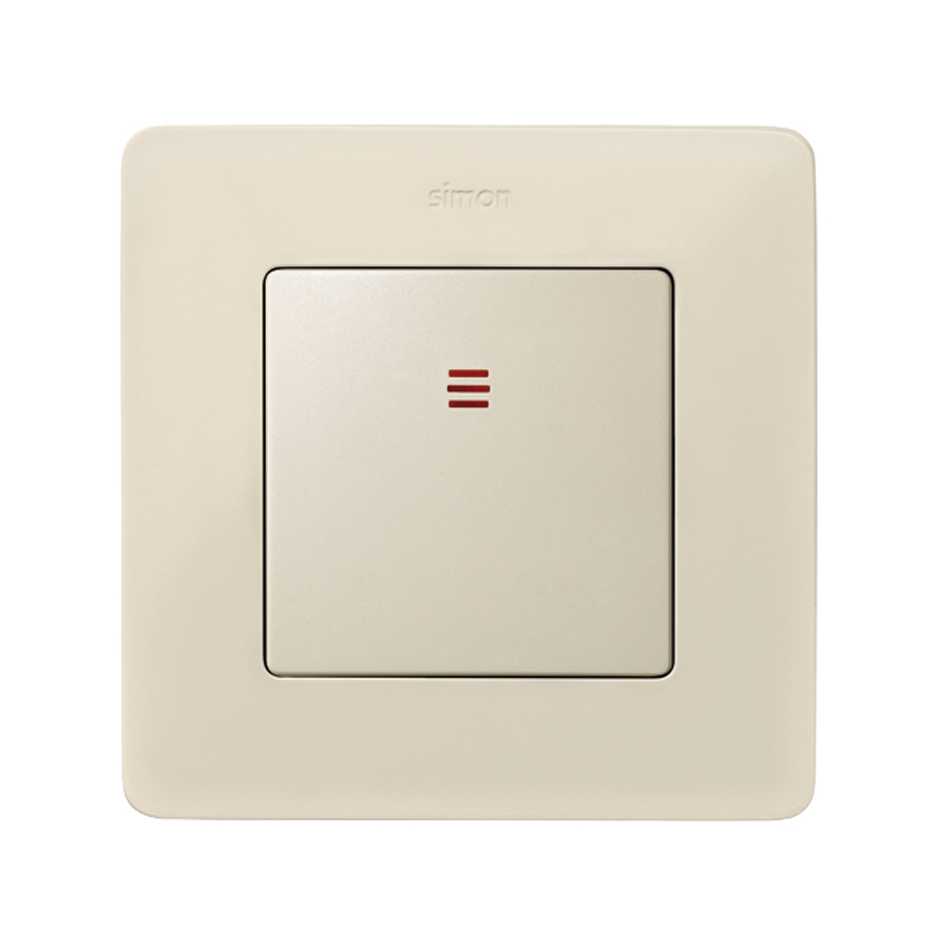

Rocker with viewer Simon 82 ivory front view


This image represents the combination of different references


Switch with pilot light, rocker and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75102-39 R.P.: Price on request Single-pole switch 10AX 250V~ with built in pilot light and fast terminal connection system


REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82

Switch with indicator light, rocker and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75104-39 R.P.: Price on request Single-pole switch 10AX 250V~ with built-in light and fast terminal connection system

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82

2-way switch with pilot light, rocker and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75202-39 R.P.: Price on request 2-way switch 10AX 250V~ with built-in pilot light and fast terminal connection system

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82

2-way switch with indicator light, rocker and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75204-39 R.P.: Price on request 2-way switch 10AX 250V~ with built-in light and fast terminal connection system

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82

Crossover switch with indicator light, rocker and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 75254-39 R.P.: Price on request Intermediate switch 10AX 250V~ with built-in light and fast terminal connection system

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82


Push button and red LED with rocker and frame Simon 82 Detail Original ivory R.P.: Price on request


REFERENCE NO.: 75552-39 R.P.: Price on request Push-button switch 10A 24V~ with built-in red LED and fast terminal connection system

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82


Push button and green LED with rocker and frame Simon 82 Detail Original ivory R.P.: Price on request


REFERENCE NO.: 75553-39 R.P.: Price on request Push-button switch 10A 24V~ with built-in green LED and fast terminal connection system

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82

2-way switch with pilot light, rocker and frame Simon 82 Detail Original ivory R.P.: Price on request

REFERENCE NO.: 8200610-031 R.P.: Price on request Frame for 1 element ivory Simon 82 Detail Original

REFERENCE NO.: 82011-31 R.P.: Price on request Single rocker for switches with light ivory Simon 82
