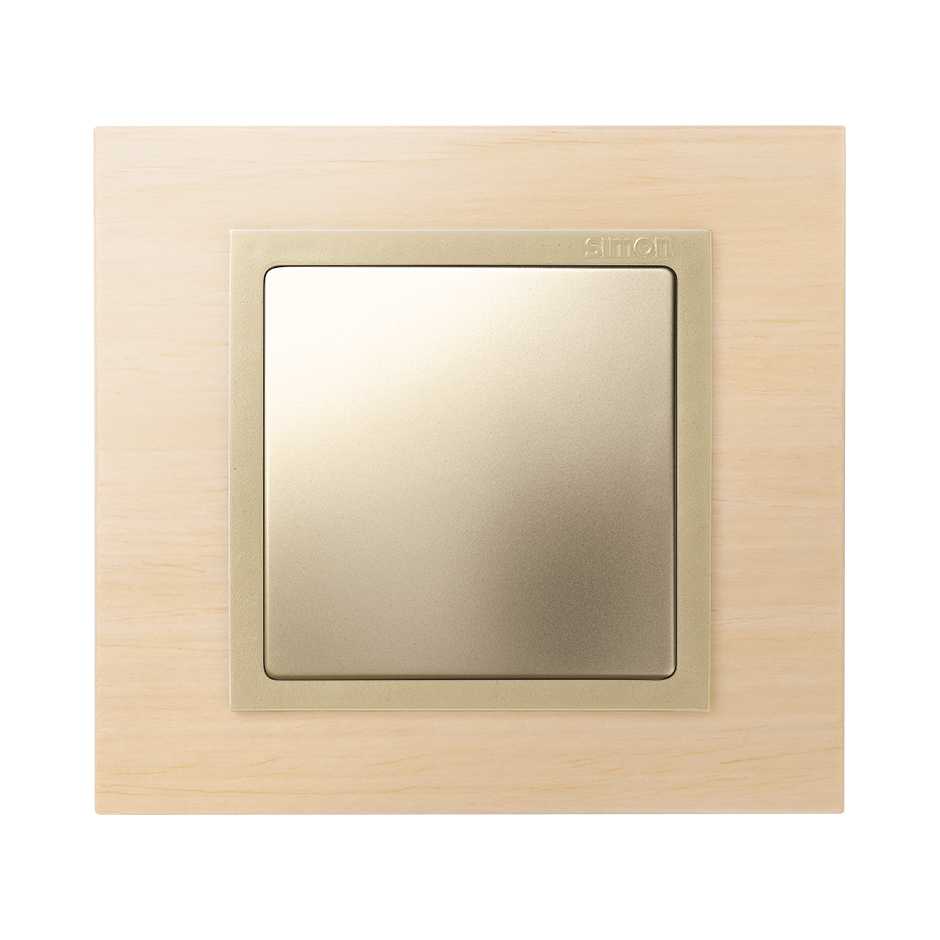

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82010-34

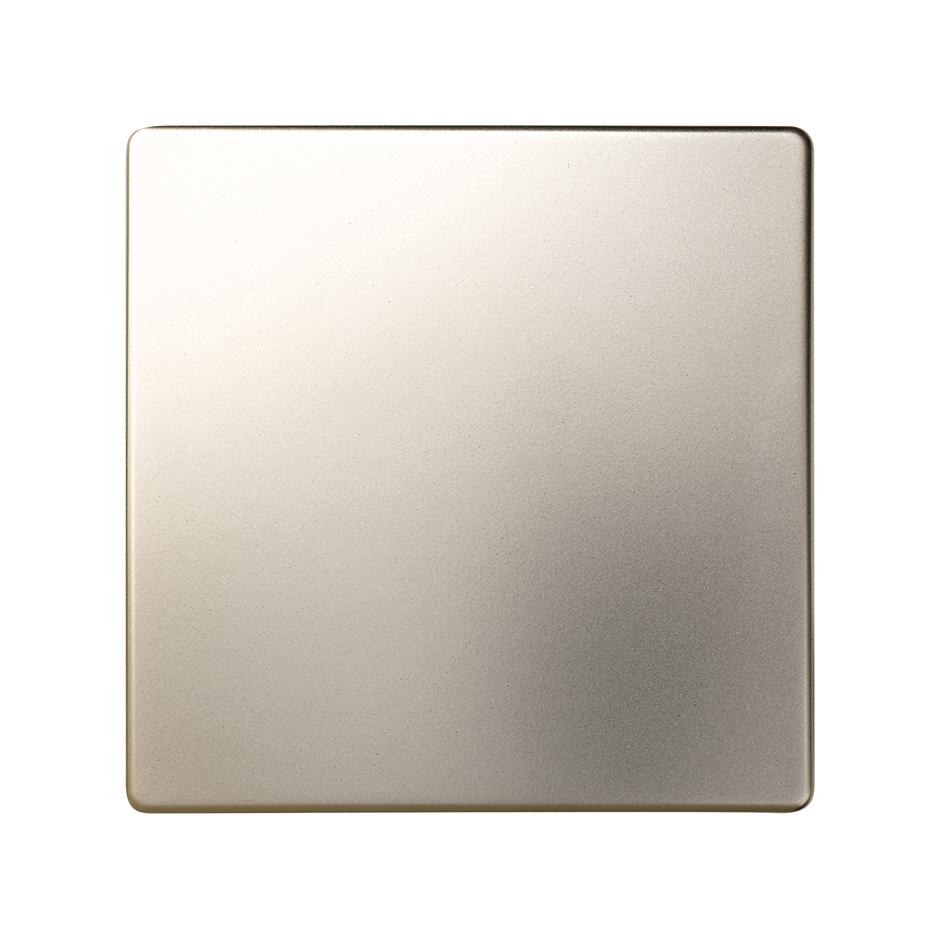

Single rocker for switches champagne Simon 82

Price/Unit
Price on request
Packaging quantity
20 Units

Available downloads

Technical specifications
82010-34-datasheet-en.pdf
Product declaration

  1. UES0021.pdf [678KB]

  2. UES0081.pdf [624KB]

Certificación CE

AENOR 030-002064 20230207.pdf

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

<p class=>Push-button switch 10A 250V~ front view</p>
Ref
75150-39
Push-button switch 10A 250V~ with fast terminal connection system
<p class=>Single-pole switch 10AX 250V~ front view</p>
Ref
75101-39
Single-pole switch 10AX 250V~ with fast terminal connection system
<p class=>Disconnect push-button switch 10A 250V~ front view</p>
Ref
75152-39
Disconnect push-button switch (pressing opens the circuit) 10A 250V~ with fast terminal connection system
<p class=>Push-button switch 10A 250V~ front view</p>
Ref
7700150-039
Push-button switch 10A 250V~ with 1click® terminal connection system
<p class=>Intermediate switch 10AX 250V~ front view</p>
Ref
75251-39
Intermediate switch 10AX 250V~ with fast terminal connection system
<p class=>2-way switch 10AX 250V~ front view</p>
Ref
75201-39
2-way switch 10AX 250V~ with fast terminal connection system
<p class=>2-way switch 16AX 250V~front view</p>
Ref
75211-39
2-way switch 16AX 250V~ with fast terminal connection system
<p class=>Intermediate switch 10AX 250V~ front view</p>
Ref
7700251-039
Intermediate switch 10AX 250V~ with 1click® terminal connection system
<p class=>2-way switch 16AX 250V~front view</p>
Ref
7700211-039
2-way switch 16AX 250V~ with 1click® terminal connection system
<p class=>2-way switch 10AX 250V~ front view</p>
Ref
7700201-039
2-way switch 10AX 250V~ with 1click® terminal connection system
<p class=>Single-pole switch 10AX 250V~ front view</p>
Ref
7700101-039
Single-pole switch 10AX 250V~ with 1click® terminal connection system
<p class=>Push-button dimmer for lamps front view</p>
Ref
7500316-039
Push-button dimmer for lamps with electronic transformer
<p class=>Push-button dimmer for lamps front view</p>
Ref
7500313-039
Push-button dimmer for lamps with electromagnetic transformer
Product Information
Downloads
Support

Individual rocker for control mechanisms of the series Simon 82 champagne. It is presented in individual format and is suitable for surface and flush mounting without major difficulties. In case of doubt, it is recommended that you consult the technical manual. The product has been manufactured in galvanized thermoplastic, a material that resists extreme temperatures (-25 to 50º), although it is advisable that the ambience temperature is between 5 and 40º for an optimal result. The product has been developed in accordance with the regulation. It has dimensions of 55x55 mm and is available in 6 finishes, the manufacturer recommends choosing the frame with the same baseboard colour as the selected rocker. For best preservation, you can clean the product with a soft and dry cloth. Also, it is not advisable to use cloths and / or abrasive cleaners containing chlorine.

Basic information

  • Compatibility

    Simon 75 and Simon 77 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information

  • Market available

    CE

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.023KGM

  • Product gross weight

    0.023KGM

  • Product EAN

    8421053257029

  • Packaging quantity

    20

  • Packaging height

    82MMT

  • Packaging width

    165MMT

  • Packaging length

    223MMT

  • Packaging volume

    3017190MMQ

  • Packaging net weight

    0.46KGM

  • Packaging gross weight

    0.46KGM

  • Packaging EAN

    8421053052150
