This image represents the combined solution of different references

Ref
82009-38

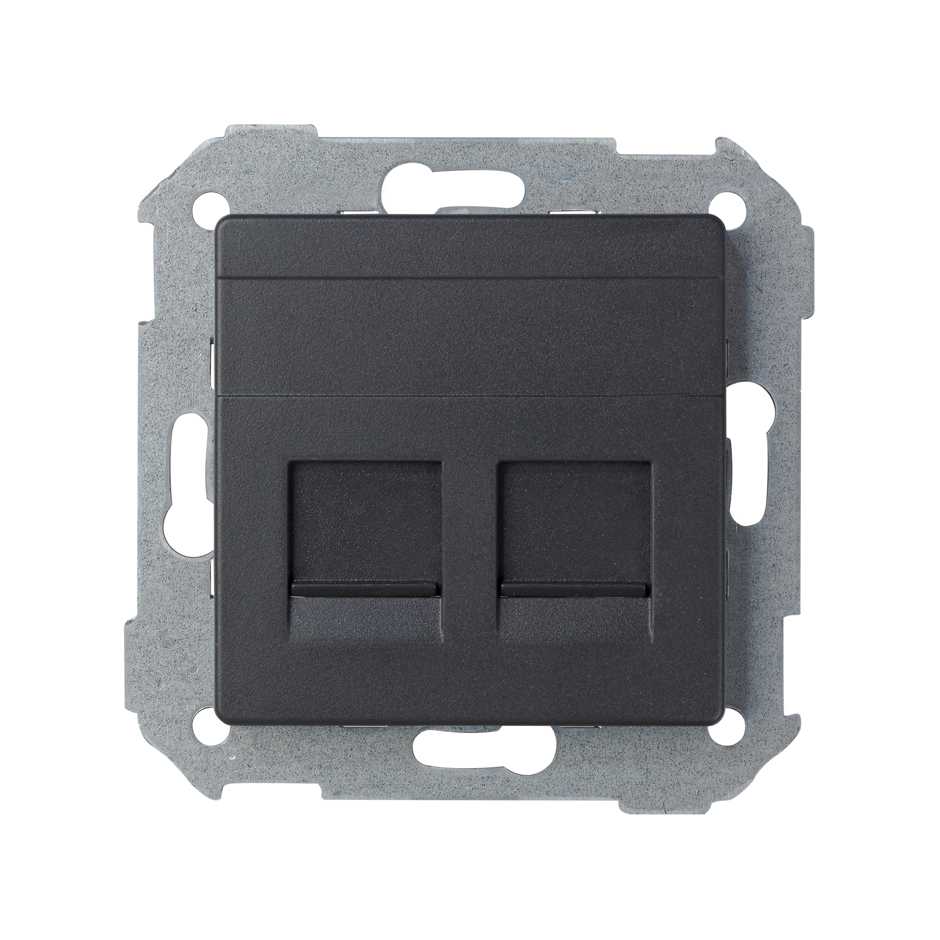

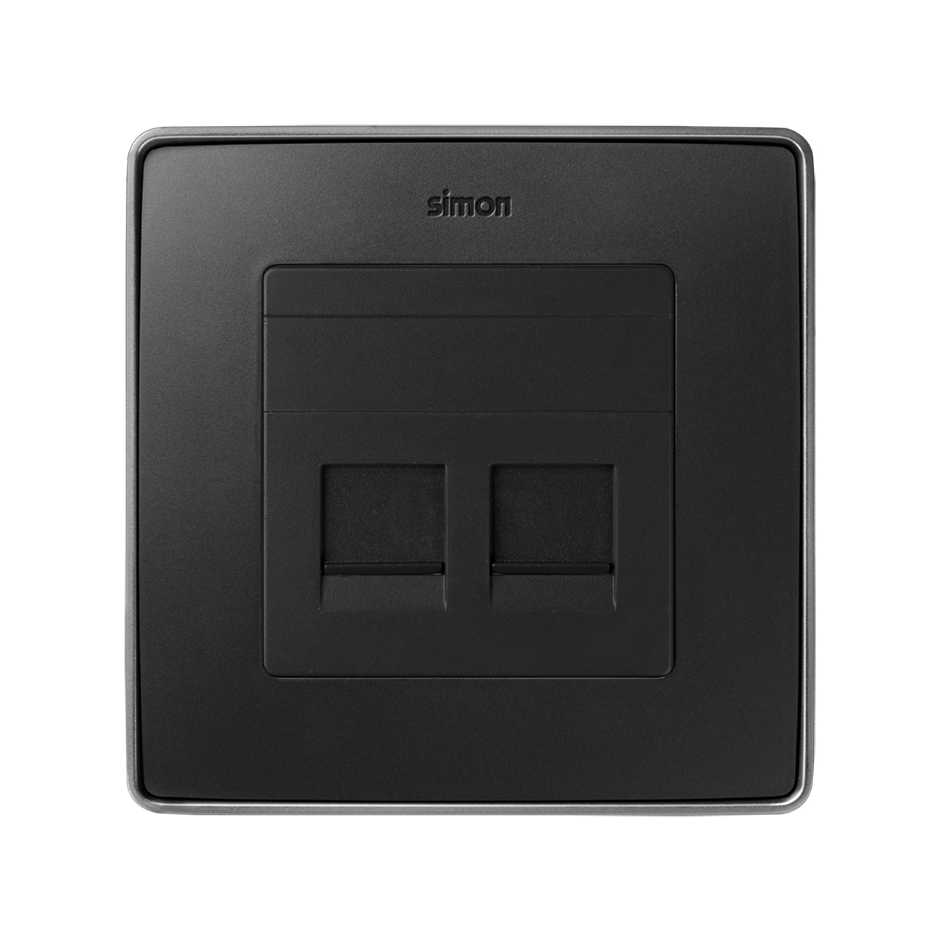

Flat voice and data plate with dust cover for 2 Systimax® RJ45 connectors graphite Simon 82

Price/Unit
Price on request
While stocks last
Packaging quantity
5 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Quality and good price are not at odds. An example of this binomial is the Voice and Data Plate with dust cover for the RJ-45 format in graphite colour of the Simon 82 series, which is compatible with Systimax connectors, it is a type of flat base plate that includes a RJ-45 adapted module with double connector., a soft cloth slightly moistened in soapy water is sufficient to clean it, avoiding to use for this purpose abrasive cleaners containing chlorine.

It is a 55x55 mm plate designed to withstand a temperature range of 5 to 40º C and a maximum temperature of -25 to 50º C. This resistance is achieved thanks to the thermoplastic components with which it has been elaborated. It is available in six different finishes, which is why it is recommended to choose a frame with the same baseboard colour as the rocker selected.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Graphite

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information
  • Market available

    CE

  • Compatible with connectors

    Systimax

  • Format

    RJ45

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Plate type

    Flat

  • RJ45 adaptor module

    Included

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information
  • Product volume

    597780MMQ

  • Product net weight

    0.041KGM

  • Product gross weight

    0.041KGM

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    0.598DMQ

  • Packaging net weight

    0.205KGM

  • Packaging gross weight

    0.205KGM

  • Packaging EAN

    8421053072219
