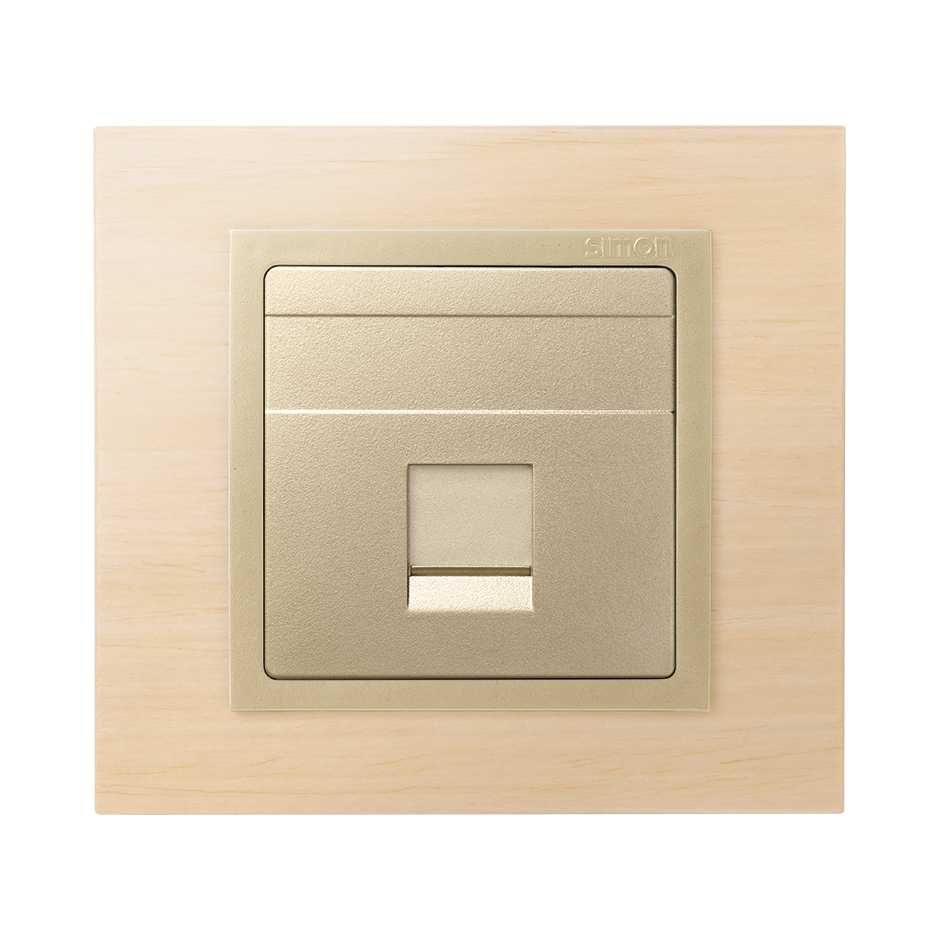

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82008-34

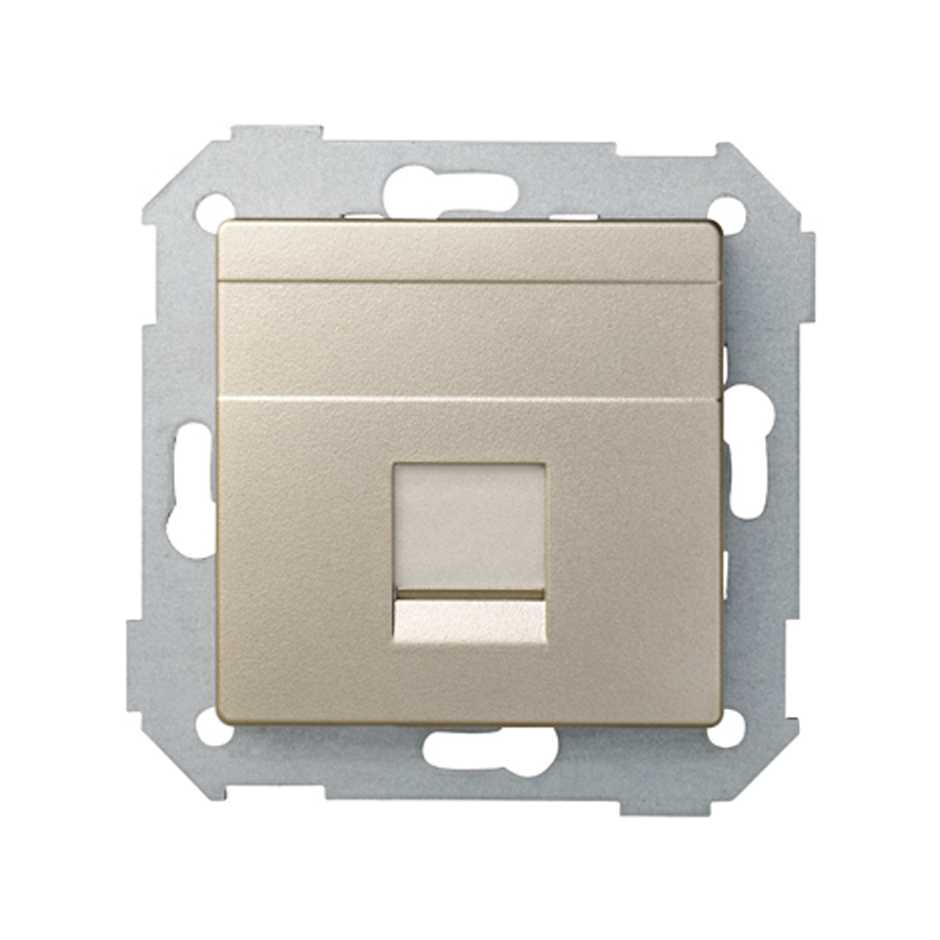

Flat voice and data plate with dust cover for 1 Systimax® RJ45 connector champagne Simon 82

Price/Unit
€12.80
While stocks last
Packaging quantity
5 Units

Available downloads

Data sheet

82008-34.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Product Information

For a Systimax ® RJ45 connector we find this flat data and voice plate with dust cover in champagne colour and belonging to the Simon 82 series, suitable for surface and flush mounting, an easy installation after compatibility offered by the Simon 77 series mechanism, without doubt, a revolution not only in design and comfort for your home but also for the assembly of the elements of the series.

Thanks to the endless number of finishes of the Simon 82 series, you can choose from six finishes with different textures, being able to acercarte as possible to what your home requires in terms of design, a true finish within reach that wants to customize the elements of your home taking supreme quality at the best price. The elements are manufactured with the best materials that can be offered as thermoplastic insulators to work in different temperatures at maximum performance.

Basic information
  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information
  • Market available

    CE

  • Compatible with connectors

    Systimax

  • Format

    RJ45

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Plate type

    Flat

  • RJ45 adaptor module

    Included

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information
  • Product volume

    597780 MMQ

  • Product net weight

    0.039 KGM

  • Product gross weight

    0.039 KGM

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    0.598 DMQ

  • Packaging net weight

    0.195 KGM

  • Packaging EAN

    8421053072332
