Ref
8200750-030

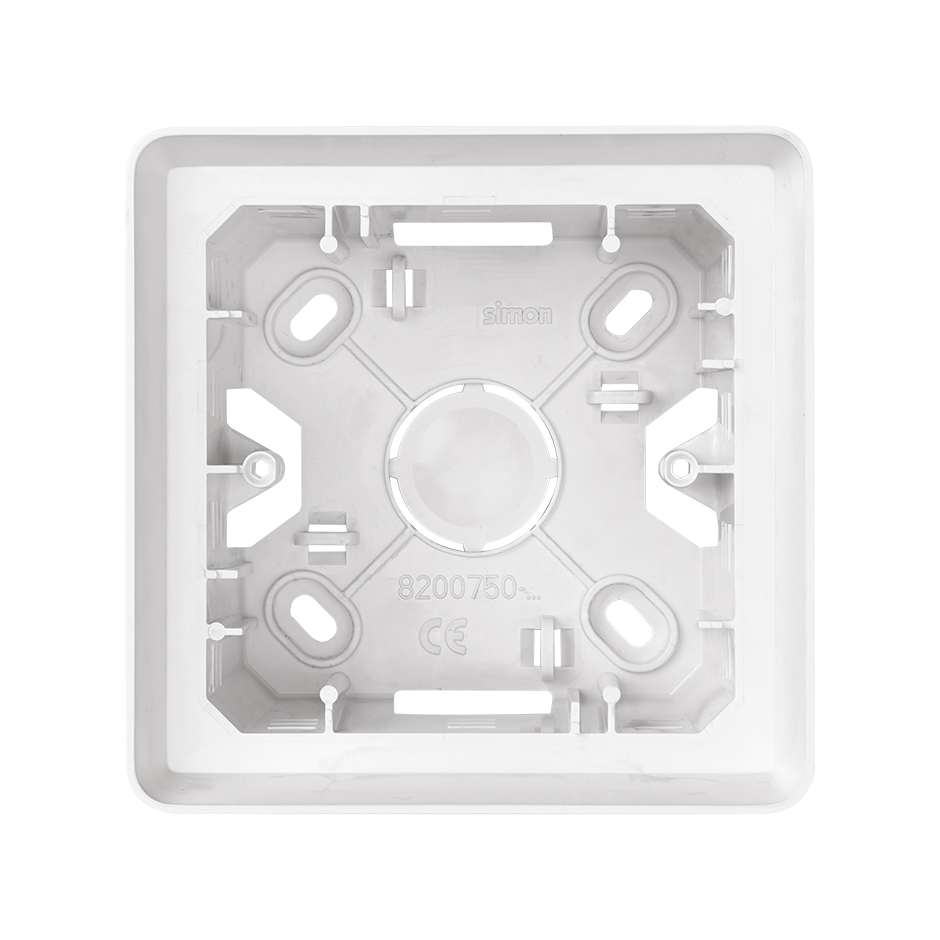

Surface mount box for 1 element white Simon 82 Detail

Price/Unit
€7.47
Packaging quantity
5 Units

Available downloads

Data sheet

8200750-030.pdf

Product declaration
Outstanding Features
Series
Simon 82 Detail
Series Compatibility

Simon 82 Detail

Product Information

The surface-mounted box 8200750-030 for 1 element, is available in a simple and attractive finish is white in colour and is part of our Simon 82 Detail series, in which design and functionality are combined to offer the most exclusive solutions for your home, the piece measures 99x99x99x52 mm and has been made with thermoplastic materials of great quality to meet to the most demanding performances. From Simon we recommend to use the same finish on the choice of rockers and covers to achieve a perfect harmony between the parts. Our Simon 82 Detail collection is characterized by offering the quality of always in a few designs only to give your home with maximum solutions full of style. If what you are looking for is the difference, do not tíos more and more detallista confident in the collection of Simon.

Basic information
  • Compatibility

    Simon 75, Simon 77 and Simon 82 mechanisms

  • Remarks

    It is recommended to use the white finish for rockers and covers.

  • Finish

    White

  • Material

    Plastic

  • Packaging contents

    Surface mount box with 1 element

Technical information
  • Market available

    CE

  • Available in

    1, 2 and 3 elements

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    1 element

  • Depth (mm)

    52 mm

  • Dimensions (mm)

    99 x 99 x 52

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface mounting

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product net weight

    0.096 KGM

  • Product gross weight

    0.096 KGM

  • Product EAN

    8421053256961

  • Packaging quantity

    5

  • Packaging height

    112 MMT

  • Packaging width

    117 MMT

  • Packaging length

    269 MMT

  • Packaging volume

    3524976 MMQ

  • Packaging net weight

    0.48 KGM

  • Packaging gross weight

    0.48 KGM

  • Packaging EAN

    8421053119280
