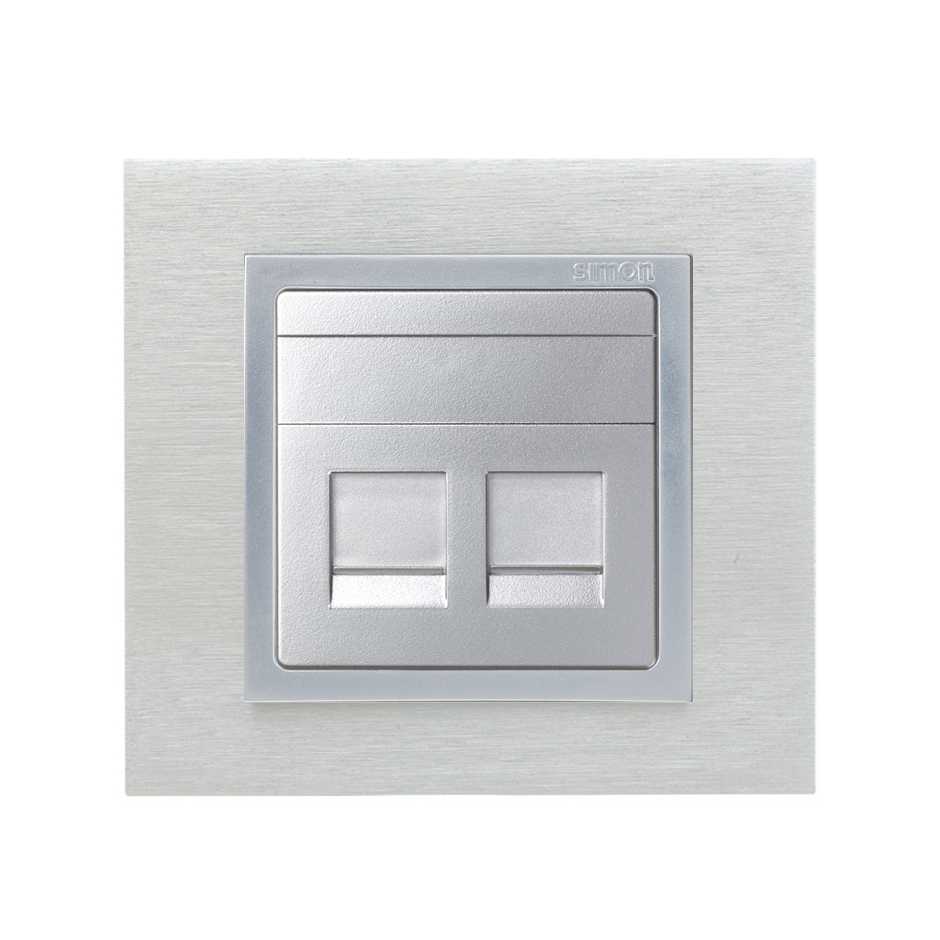

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82006-33

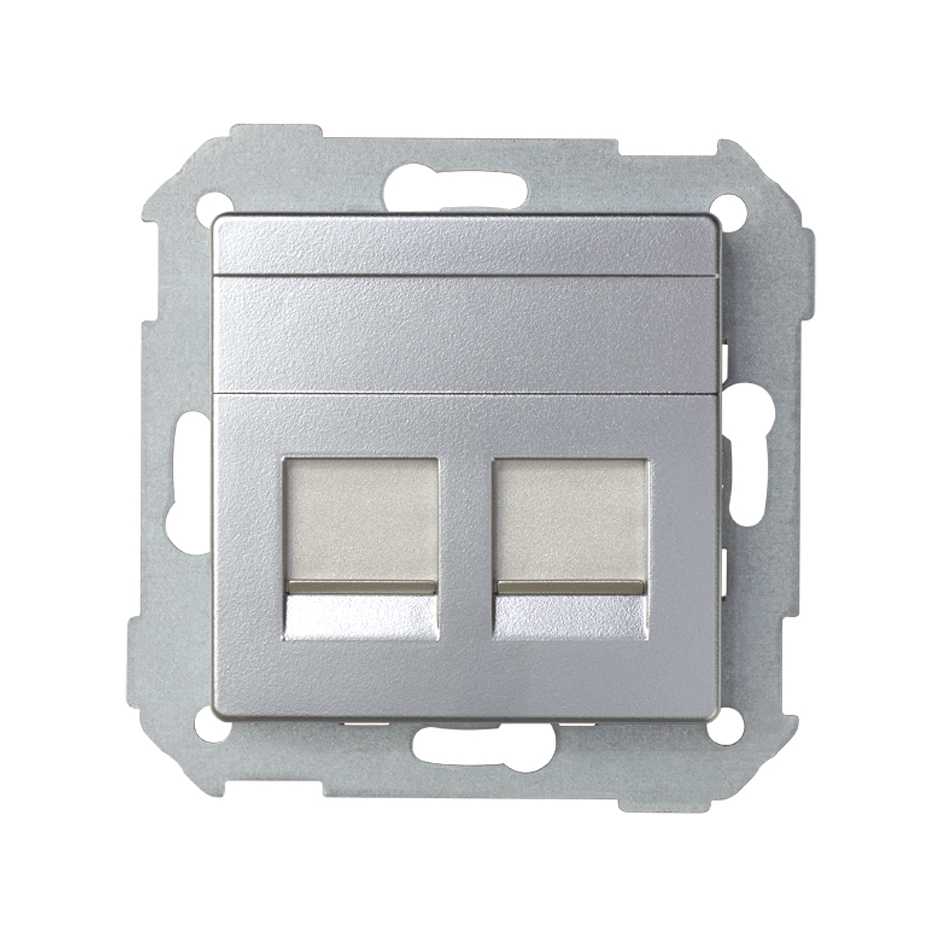

Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors aluminium Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
82006-33-datasheet-en.pdf
Product declaration

  1. UES0027.pdf [313KB]

Drawing and dimensions

  1. Plano placa para 2 RJ45 Simon 82.pdf [319KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

<p class=>AMP RJ45 IT connector front view</p>
Ref
75544-39
AMP® RJ45 IT connector category 6 UTP
<p class=>AMP RJ45 IT connector front view</p>
Ref
75541-39
AMP® RJ45 IT connector category 5e FTP
<p class=>AMP RJ45 IT connector front view</p>
Ref
75540-39
AMP® RJ45 IT connector category 5e UTP
<p class=>Telephone connector category 3 front view</p>
Ref
75528-39
Telephone connector with 6 category-3 connections
Product Information
Downloads
Support

Voice and data flat plate with dust cover included for two RJ45 type connectors and compatible with the AMP ® system with finished in aluminium colour of the Simon 82 series, go to the rockers and Keyboards section if you want to find out about other finishes available, specifically six. As a recommendation to always make the most of the combination of elements, you will have to choose a frame with the same baseboard colour as the rocker selected.

Enjoy the balance and simplicity combined to create a trend in the decoration of your home, the installation is suitable for surface mounting or flush mounting, making it easier to install, but thanks to the compatibility with the Simon 77 series mechanisms with just two steps: Insert and tighten. This saves time and increasing the security at the time of installation.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Aluminium

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information

  • Market available

    CE

  • Compatible with connectors

    AMP

  • Format

    RJ45

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Plate type

    Flat

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information

  • Product volume

    597780MMQ

  • Product net weight

    0.043KGM

  • Product gross weight

    0.043KGM

  • Product EAN

    8421053072172

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    0.598DMQ

  • Packaging net weight

    0.215KGM

  • Packaging gross weight

    0.215KGM

  • Packaging EAN

    8421053072172
