Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors white Simon 82

REFERENCE NO.: 82006-30

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

82006-30-placa-voz-datos-plana-con-guardapolvo-2-rj45-amp-blanco-simon-82-frontal_5.jpg

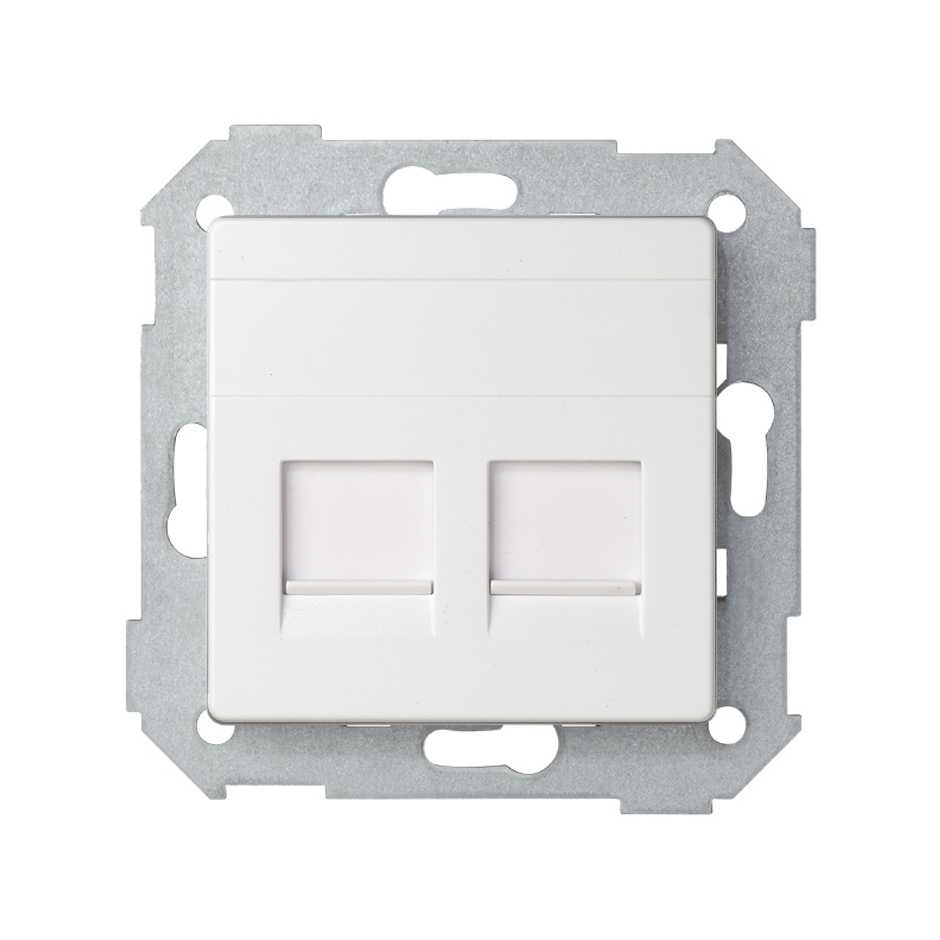

Flat voice and data plate Simon 82 white front view


This image represents the combination of different references

Flat voice and data plate Simon 82 white packaging

SERIES: Simon 82 FINISH: White MATERIAL: Plastic FORMAT: RJ45 DIMENSIONS: 55x55 mm RJ sockets

75528-39

75540-39

75541-39

75544-39

Product description

Corresponding to the Simon 82 series we find this flat data and voice plate with dust cover for 2 RJ45 connectors AMP ® white in colour, since it is available in 6 finishes, it is recommended to select a frame of the same baseboard colour as the chosen plate. This is a flat base plate compatible with AMP connectors suitable for surface and flush mounting. It is made of thermoplastic, a material that resists extreme temperatures (between -25 and 50º), although it is preferable that the plate to be installed in an ambience with between 5 and 40º for an optimal conservation. With regard to its maintenance, it is advisable to use a soft cloth slightly moistened in soapy water and avoid abrasive cloths and / or abrasive cleaners containing chlorine. These simple instructions will allow the piece to enjoy a long life. The product has dimensions of 55x55 mm

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: White

Format: RJ45

Plate type: Flat

Number of connectors: 2

Compatible with connectors: AMP

Dust shutter: Yes

Indicator function: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Plate

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2011/65/UE RoHS + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 0.598

Box volume measurement unit: CDM

Net weight of box: 0.215

Unit weight of box: KGM

EAN code: 8421053072141

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No

82006-30-placa-voz-datos-plana-con-guardapolvo-2-rj45-amp-blanco-simon-82-frontal_6.jpg

Flat voice and data plate Simon 82 white front view


This image represents the combination of different references

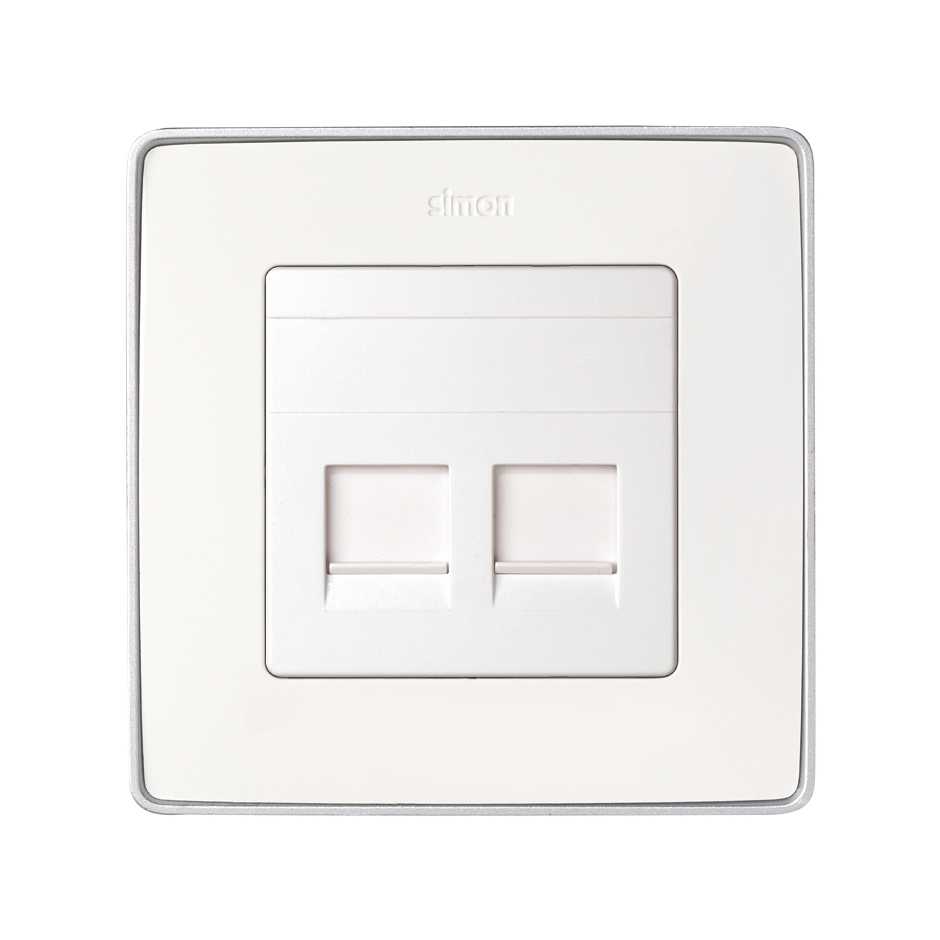

Flat voice and data plate with 2 AMP® RJ45, plate and frame Simon 82 Detail Select white aluminium base R.P.: Price on request
