Ref
82005-38

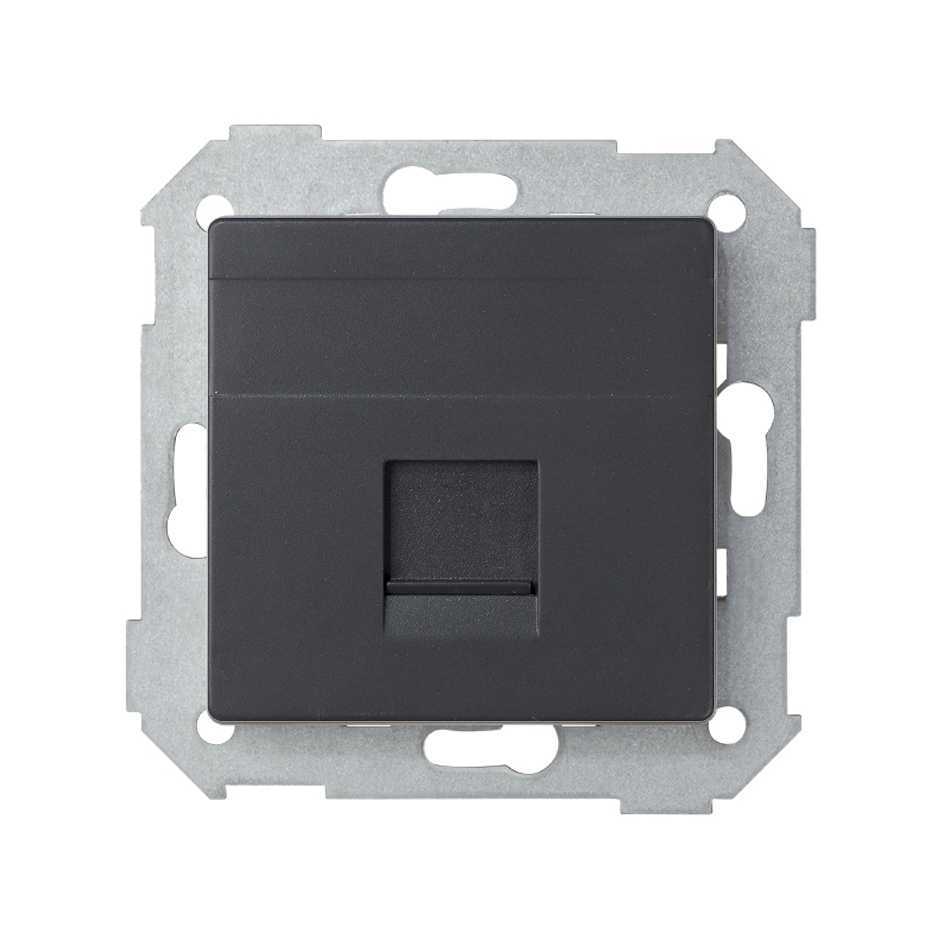

Flat voice and data plate with dust cover for 1 AMP® RJ45 connector graphite Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
82005-38-datasheet-en.pdf
Product declaration

  1. UES0027.pdf [313KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

<p class=>AMP RJ45 IT connector front view</p>
Ref
75544-39
AMP® RJ45 IT connector category 6 UTP
<p class=>Systimax RJ45 IT connector white front view</p>
Ref
75542-30
Systimax® RJ45 IT connector category 5e UTP white
<p class=>AMP RJ45 IT connector front view</p>
Ref
75541-39
AMP® RJ45 IT connector category 5e FTP
<p class=>AMP RJ45 IT connector front view</p>
Ref
75540-39
AMP® RJ45 IT connector category 5e UTP
<p class=>Telephone connector category 3 front view</p>
Ref
75528-39
Telephone connector with 6 category-3 connections
Product Information
Downloads
Support

In graphite colour, and from the Simon 82 series, we present this flat base plate of voice and data with dust cover for 1 RJ45 connector type AMP ®. It has no engraving on its surface. It includes the adaptor module for the RJ45 connector.

It is made of thermoplastic material, which is a 100% recyclable and plastic that respects the environment, its dimensions are 55 mm high x 55 mm wide.

It is installed both in surface-mounted and flush-mounted system and in order to achieve proper cleaning and maintenance, it is important to avoid the use of abrasive cloths or cleaners containing chlorine: Use a very soft cloth lightly impregnated in water with a few drops of soap.

This collection, the Simon 82, which stands out for its minimalist design, pure, simple lines and an ultra-flat profile give life to a new concept. Simplicity and balance adapted to the latest market trends.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Graphite

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information

  • Market available

    CE

  • Compatible with connectors

    AMP

  • Format

    RJ45

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Plate type

    Flat

  • RJ45 adaptor module

    Included

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    597780MMQ

  • Product net weight

    0.039KGM

  • Product gross weight

    0.039KGM

  • Product EAN

    8421053256688

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    0.598DMQ

  • Packaging net weight

    0.195KGM

  • Packaging gross weight

    0.195KGM

  • Packaging EAN

    8421053072264
