Ref
82005-34

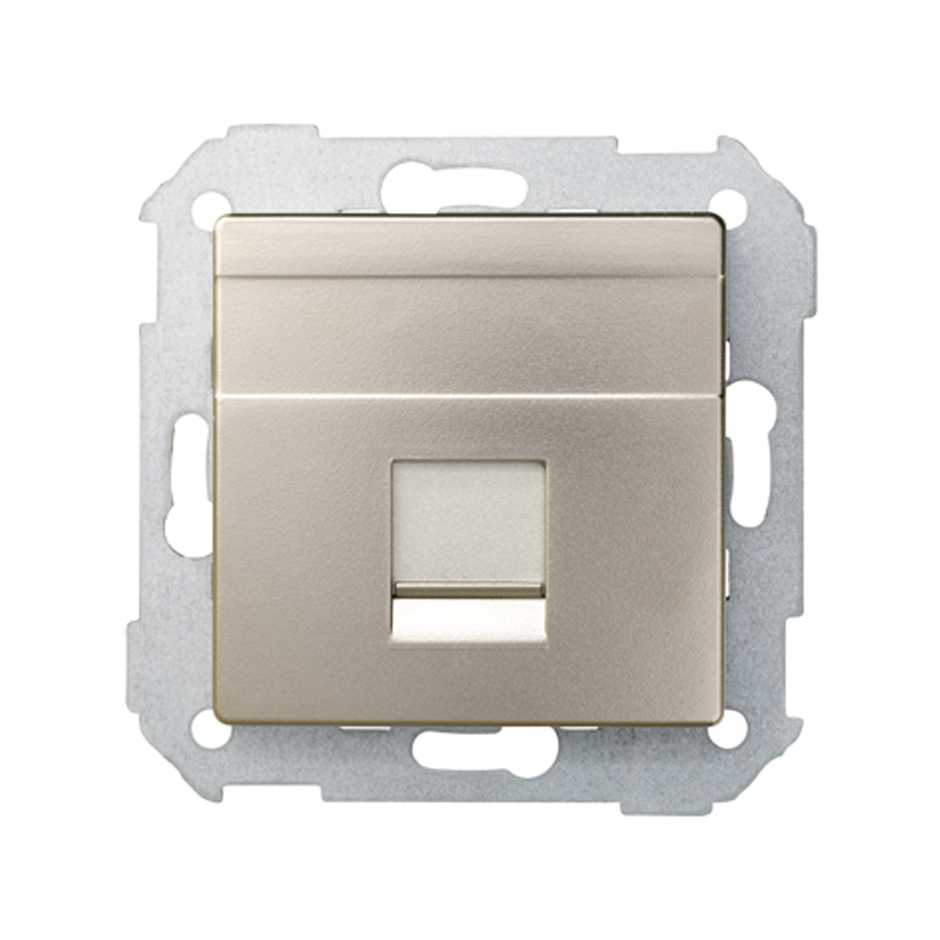

Flat voice and data plate with dust cover for 1 AMP® RJ45 connector champagne Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
82005-34-datasheet-en.pdf
Product declaration

  1. UES0027.pdf [313KB]

Drawing and dimensions

  1. Plano placa para 1 RJ45 Simon 82.pdf [411KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

<p class=>AMP RJ45 IT connector front view</p>
Ref
75544-39
AMP® RJ45 IT connector category 6 UTP
<p class=>AMP RJ45 IT connector front view</p>
Ref
75541-39
AMP® RJ45 IT connector category 5e FTP
<p class=>AMP RJ45 IT connector front view</p>
Ref
75540-39
AMP® RJ45 IT connector category 5e UTP
<p class=>Telephone connector category 3 front view</p>
Ref
75528-39
Telephone connector with 6 category-3 connections
Product Information
Downloads
Support

What features should we require on a plate? An un-negotiable one is that it is safe, without losing an inch of innovative design that sets it apart from other similar elements developed by the competition. These two premises are very present in the flat voice and data plate with dust cover for an RJ45 connector in champagne of the Simon 82 series, it is a type of flat base plate compatible with AMP connectors and also includes an RJ-45 adapted module with a simple connector. This is a plate suitable for installation in a baseboard surface mounting or flush mounting in a universal box thanks to its dimensions of 55x55 mm, having been its components made of galvanized thermoplastic materials. Do not end their qualities here, as it is also available in six finishes, is easy to clean and has a very competitive price.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information

  • Market available

    CE

  • Compatible with connectors

    AMP

  • Format

    RJ45

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Plate type

    Flat

  • RJ45 adaptor module

    Included

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.04KGM

  • Product gross weight

    0.04KGM

  • Product EAN

    8421053256671

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    0.598DMQ

  • Packaging net weight

    0.2KGM

  • Packaging gross weight

    0.2KGM

  • Packaging EAN

    8421053072288
