Flat voice and data plate with dust cover for 1 AMP® RJ45 connector aluminium Simon 82

82005-33-placa-voz-datos-plana-con-guardapolvo-1-rj45-amp-aluminio-simon-82-frontal.jpg

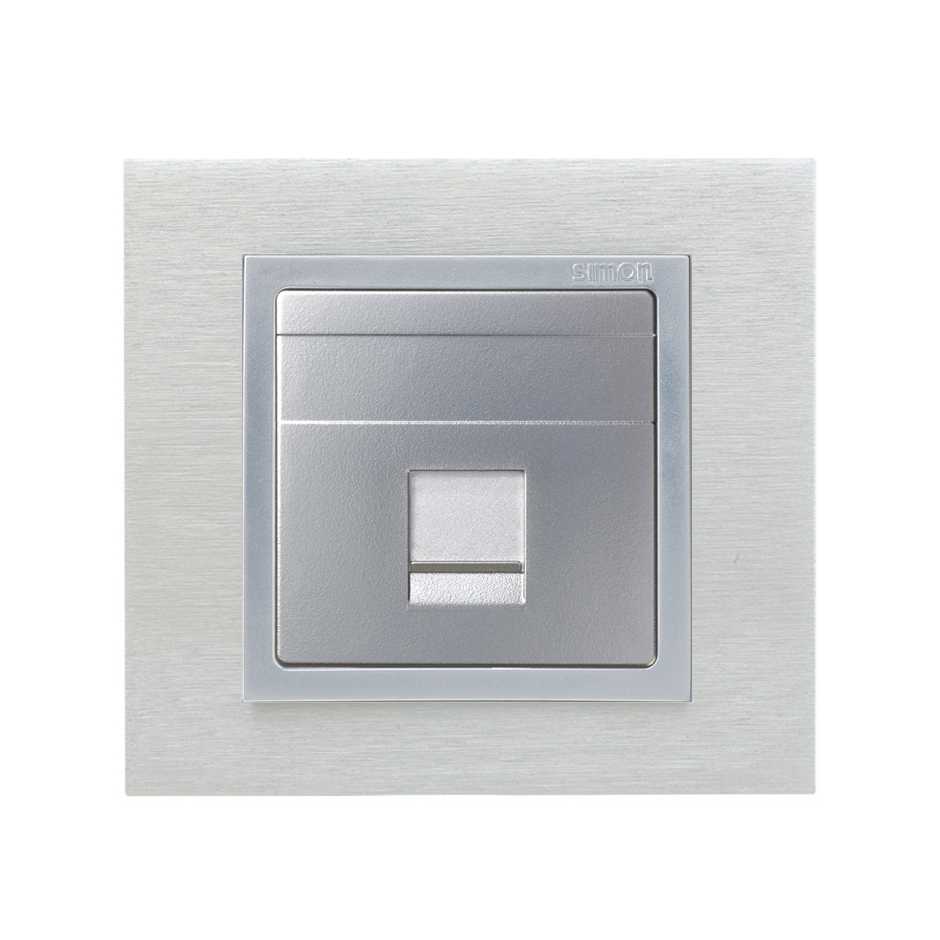

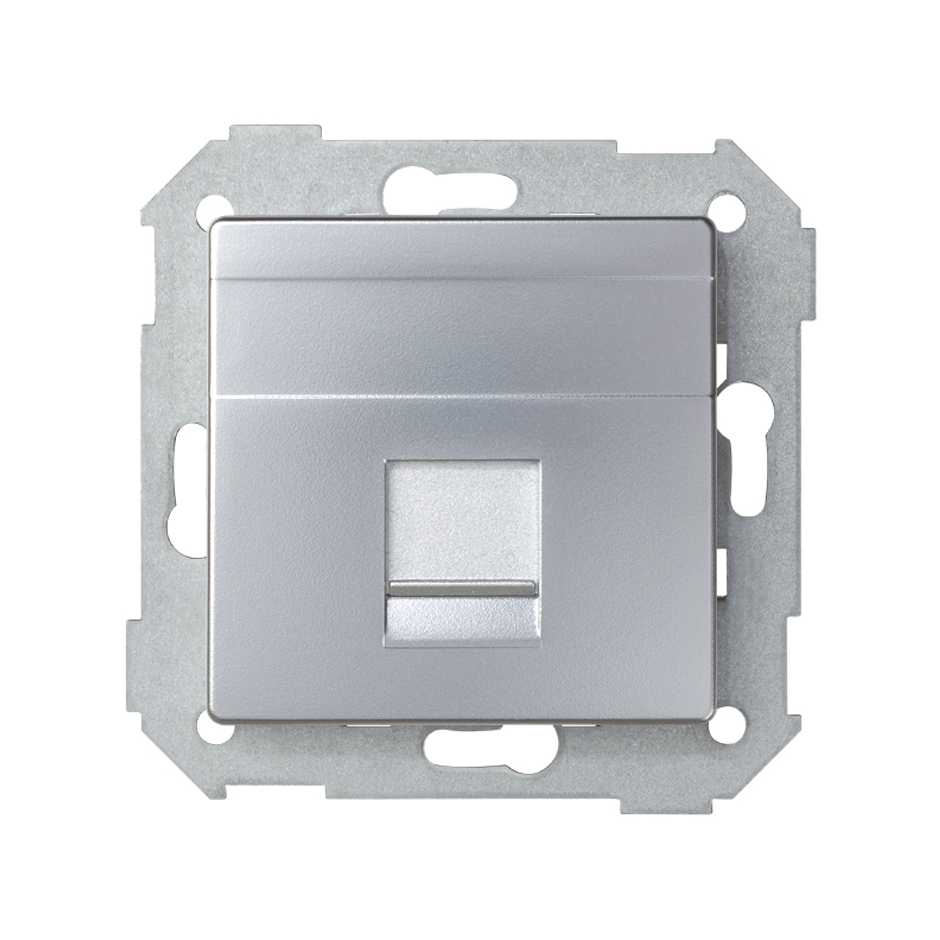

Flat voice and data plate Simon 82 aluminium front view


This image represents the combination of different references

Flat voice and data plate Simon 82 aluminium packaging

SERIES: Simon 82 FINISH: Aluminium MATERIAL: Plastic FORMAT: RJ45 DIMENSIONS: 55x55 mm COMPATIBLE SERIE: Simon 82 RJ sockets

Product description

Voice and data flat plate with dust cover for a single RJ45 AMP ® connection connector in aluminium colour of the Simon 82 series, get one of the elements designed with the Simon 82 range preferences, loaded with design, comfort and unprecedented customization. Undoubtedly, a solution to the RJ45 connectors brought to the special design of this series designed exclusively for you. You can choose one of the six finishes offered by Simon, which recommends choosing the colour of the frame similar to the baseboard of the selected rocker. Enjoy taking one of the elements of the Simon 82 series of the most innovative functions on the market, making sure there is no competition and that the comfort of your home reaches the maximum exponent. Enjoy the installation is three steps offered by the 82 range with full compatibility in the Simon 77 series, making it with the terminal connection without stripping wire it easy and practical to install the element you have purchased.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Aluminium

Format: RJ45

Plate type: Flat

Number of connectors: 1

Compatible with connectors: AMP

Dust shutter: Yes

RJ45 adaptor module: Included

Indicator function: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Plate

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Galvanised thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2011/65/UE RoHS + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 0.598

Box volume measurement unit: CDM

Net weight of box: 0.200

Unit weight of box: KGM

EAN code: 8421053072271

Available in multiple box: No

Available on pallet: No

82005-33-placa-voz-datos-plana-con-guardapolvo-1-rj45-amp-aluminio-simon-82-frontal_2.jpg

Flat voice and data plate Simon 82 aluminium front view


This image represents the combination of different references

Flat voice and data plate with 1 RJ11, aluminium plate and frame Simon 82 Nature matt stainless steel aluminium interior R.P.: Price on request

REFERENCE NO.: 75528-39 R.P.: Price on request Telephone connector with 6 category-3 connections

REFERENCE NO.: 82005-33 R.P.: Price on request Flat voice and data plate with dust cover for 1 AMP® RJ45 connector aluminium Simon 82

Flat voice and data plate with 1 AMP® RJ45, with aluminium plate and frame Simon 82 Nature matt stainless steel aluminium interior R.P.: Price on request

REFERENCE NO.: 75540-39 R.P.: Price on request AMP® RJ45 IT connector category 5e UTP

REFERENCE NO.: 82005-33 R.P.: Price on request Flat voice and data plate with dust cover for 1 AMP® RJ45 connector aluminium Simon 82

Flat voice and data plate with 1 AMP® RJ45, aluminium plate and frame Simon 82 Nature matt stainless steel aluminium interior R.P.: Price on request

REFERENCE NO.: 75541-39 R.P.: Price on request AMP® RJ45 IT connector category 5e FTP

REFERENCE NO.: 82005-33 R.P.: Price on request Flat voice and data plate with dust cover for 1 AMP® RJ45 connector aluminium Simon 82

Flat voice and data plate with 1 AMP® RJ45, aluminium plate and frame Simon 82 Nature matt stainless steel aluminium interior R.P.: Price on request

REFERENCE NO.: 75544-39 R.P.: Price on request AMP® RJ45 IT connector category 6 UTP

REFERENCE NO.: 82005-33 R.P.: Price on request Flat voice and data plate with dust cover for 1 AMP® RJ45 connector aluminium Simon 82
